| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_135T02_9000003450_23335cztM0_level2.evt | modeM0/AS1A07_135T02_9000003450_23335cztM0_level2_quad_clean.evt |
| Size (bytes) | 481,334,400 | 53,395,200 |
| Size | 459.0 MB | 50.9 MB |
| Events in quadrant A | 1,906,763 | 359,406 |
| Events in quadrant B | 1,969,607 | 364,222 |
| Events in quadrant C | 1,986,908 | 358,149 |
| Events in quadrant D | 8,460,290 | 270,570 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7870 | 1 |
| B | 0 | 8008 | 1 |
| C | 0 | 8083 | 1 |
| D | 0 | 27670 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 76 | 0 |
| B | 0 | 76 | 0 |
| C | 0 | 76 | 0 |
| D | 0 | 76 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3726 | 101 | 2.710682% |
| B | 3726 | 120 | 3.220612% |
| C | 3725 | 120 | 3.221477% |
| D | 3725 | 3125 | 83.892617% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4776 | 3726 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4776 | 3726 | 2 | 2 | 0.04% | 0.05% |  |
| C | 4775 | 3725 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4774 | 3724 | 3120 | 3120 | 65.35% | 83.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 5646 | 50.94 | 494 | 484 | 101.3 |
| A | 3 | 137 | 4381 | 38.45 | 494 | 484 | 101.3 |
| A | 0 | 226 | 4225 | 36.92 | 494 | 484 | 101.3 |
| B | 0 | 190 | 13467 | 135.16 | 492 | 480 | 96.1 |
| B | 12 | 111 | 11492 | 114.61 | 492 | 480 | 96.1 |
| B | 11 | 111 | 10273 | 101.92 | 492 | 480 | 96.1 |
| C | 14 | 238 | 76666 | 670.42 | 481 | 484 | 113.6 |
| C | 7 | 247 | 33075 | 286.81 | 481 | 484 | 113.6 |
| C | 13 | 61 | 3263 | 24.46 | 481 | 484 | 113.6 |
| D | 7 | 223 | 6902096 | 74003.67 | 380 | 369 | 93.3 |
| D | 1 | 52 | 81987 | 875.15 | 380 | 369 | 93.3 |
| D | 13 | 104 | 16331 | 171.15 | 380 | 369 | 93.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

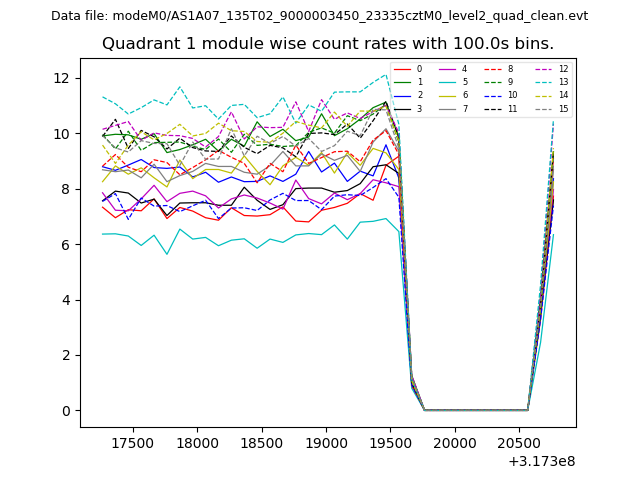

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

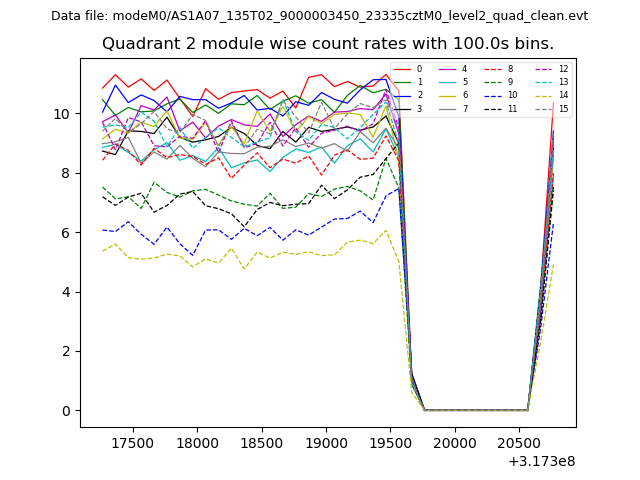

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

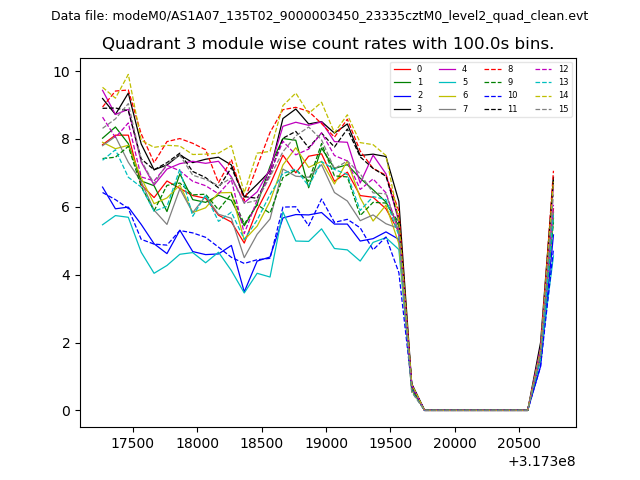

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

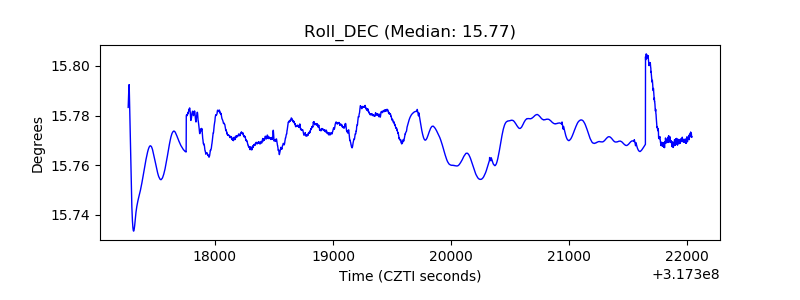

| _Roll_DEC |  |

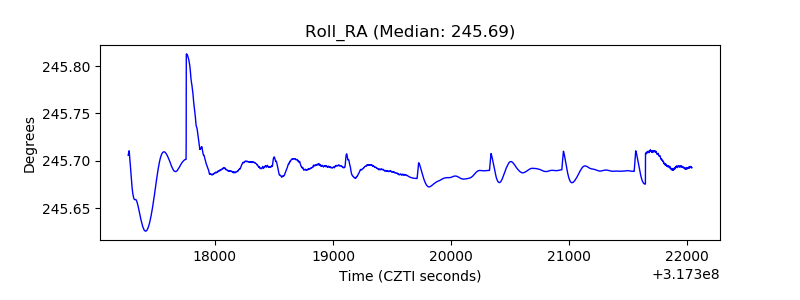

| _Roll_RA |  |

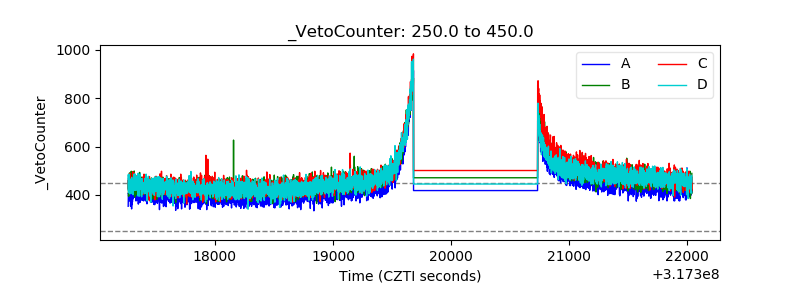

| Veto Counter |  |
