| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_002T03_9000003448_23333cztM0_level2.evt | modeM0/AS1C05_002T03_9000003448_23333cztM0_level2_quad_clean.evt |
| Size (bytes) | 170,772,480 | 12,136,320 |
| Size | 162.9 MB | 11.6 MB |
| Events in quadrant A | 964,134 | 63,038 |
| Events in quadrant B | 979,468 | 65,401 |
| Events in quadrant C | 1,166,936 | 61,255 |
| Events in quadrant D | 1,950,452 | 58,765 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36 | 0 |
| B | 0 | 36 | 0 |
| C | 0 | 36 | 0 |
| D | 0 | 36 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3959 | 1 |
| B | 0 | 4064 | 1 |
| C | 0 | 4655 | 1 |
| D | 0 | 6902 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1597 | 57 | 3.569192% |
| B | 1597 | 60 | 3.757044% |
| C | 1597 | 98 | 6.136506% |
| D | 1597 | 118 | 7.388854% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2937 | 1597 | 0 | 0 | 0.00% | 0.00% |  |
| B | 2937 | 1597 | 0 | 0 | 0.00% | 0.00% |  |
| C | 2937 | 1597 | 10 | 10 | 0.34% | 0.63% |  |
| D | 2937 | 1597 | 16 | 16 | 0.54% | 1.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 2268 | 39.18 | 250 | 245 | 51.6 |
| A | 0 | 226 | 2248 | 38.79 | 250 | 245 | 51.6 |
| A | 3 | 137 | 1937 | 32.77 | 250 | 245 | 51.6 |
| B | 0 | 189 | 7632 | 158.12 | 243 | 238 | 46.8 |
| B | 5 | 172 | 6574 | 135.49 | 243 | 238 | 46.8 |
| B | 4 | 206 | 6159 | 126.62 | 243 | 238 | 46.8 |
| C | 10 | 9 | 199857 | 3626.12 | 235 | 237 | 55.1 |
| C | 14 | 238 | 38546 | 695.89 | 235 | 237 | 55.1 |
| C | 7 | 247 | 3993 | 68.23 | 235 | 237 | 55.1 |
| D | 7 | 223 | 942525 | 15659.96 | 242 | 235 | 60.2 |
| D | 1 | 52 | 57136 | 945.64 | 242 | 235 | 60.2 |
| D | 13 | 104 | 16866 | 276.39 | 242 | 235 | 60.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

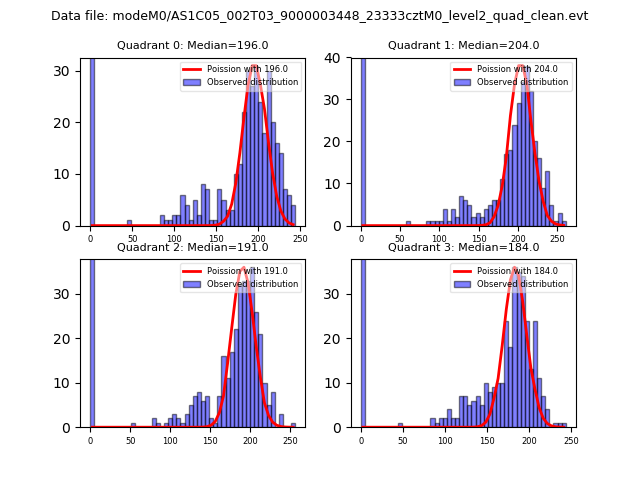

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

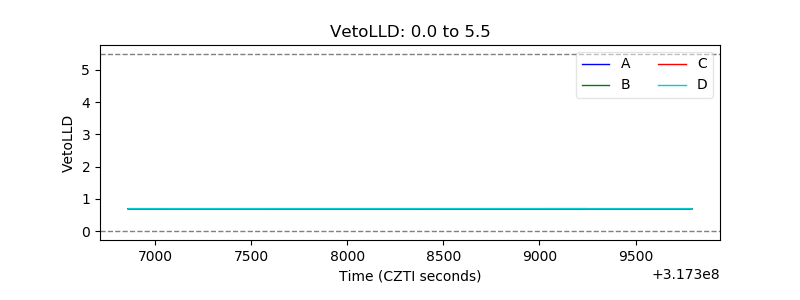

| Veto LLD |  |
| Alpha Counter |  |

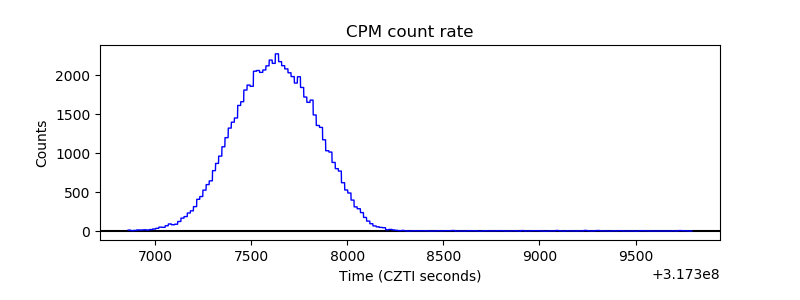

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
