| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_135T01_9000003452_23356cztM0_level2.evt | modeM0/AS1A07_135T01_9000003452_23356cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,088,415,360 | 181,186,560 |
| Size | 1.0 GB | 172.8 MB |
| Events in quadrant A | 7,443,721 | 1,114,471 |
| Events in quadrant B | 7,968,357 | 1,133,908 |
| Events in quadrant C | 8,410,046 | 1,082,254 |
| Events in quadrant D | 8,078,668 | 1,073,748 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 322 | 0 |
| B | 0 | 322 | 0 |
| C | 0 | 322 | 2 |
| D | 0 | 322 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32145 | 47 |
| B | 0 | 33632 | 54 |
| C | 0 | 34935 | 41 |
| D | 0 | 34510 | 33 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15693 | 95 | 0.605365% |
| B | 15689 | 235 | 1.497865% |
| C | 15695 | 350 | 2.230010% |
| D | 15698 | 162 | 1.031979% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 17755 | 15700 | 0 | 0 | 0.00% | 0.00% |  |
| B | 17755 | 15697 | 48 | 48 | 0.27% | 0.31% |  |
| C | 17759 | 15698 | 55 | 55 | 0.31% | 0.35% |  |
| D | 17757 | 15703 | 87 | 87 | 0.49% | 0.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 22455 | 52.66 | 1929 | 1886 | 390.6 |
| A | 3 | 137 | 17417 | 39.76 | 1929 | 1886 | 390.6 |
| A | 0 | 226 | 16510 | 37.44 | 1929 | 1886 | 390.6 |
| B | 0 | 190 | 159268 | 430.71 | 1909 | 1862 | 365.5 |
| B | 0 | 189 | 153692 | 415.45 | 1909 | 1862 | 365.5 |
| B | 0 | 245 | 105809 | 284.43 | 1909 | 1862 | 365.5 |
| C | 0 | 239 | 725596 | 1663.79 | 1840 | 1852 | 435.0 |
| C | 14 | 238 | 293051 | 669.43 | 1840 | 1852 | 435.0 |
| C | 7 | 247 | 111157 | 251.28 | 1840 | 1852 | 435.0 |
| D | 1 | 52 | 407825 | 874.41 | 1882 | 1825 | 464.3 |
| D | 12 | 233 | 151885 | 323.19 | 1882 | 1825 | 464.3 |
| D | 2 | 152 | 115401 | 244.61 | 1882 | 1825 | 464.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

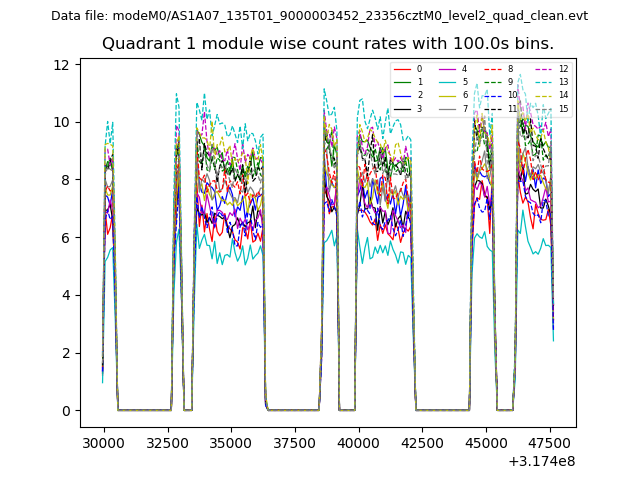

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

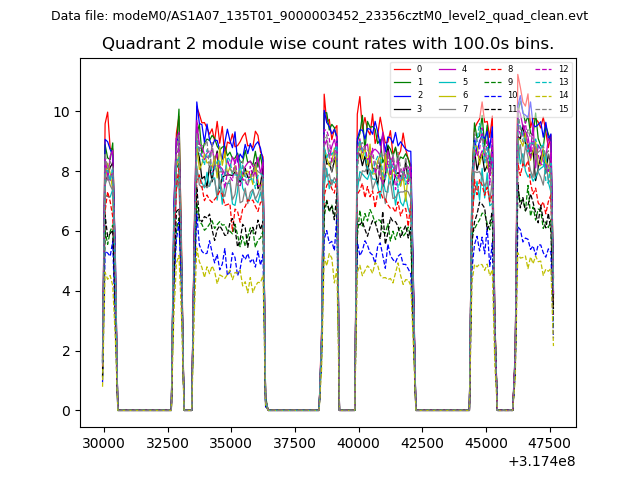

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

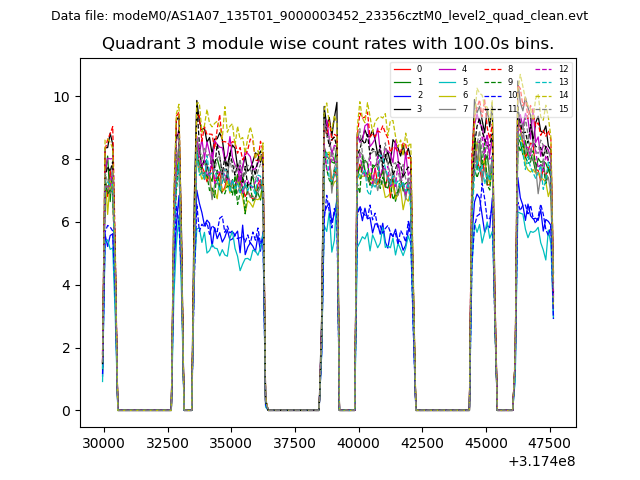

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

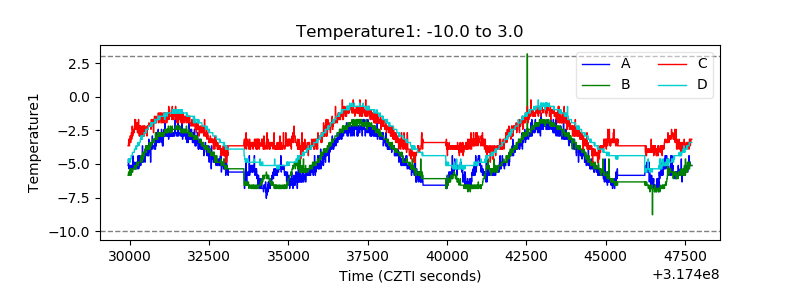

| Temperature 1 |  |

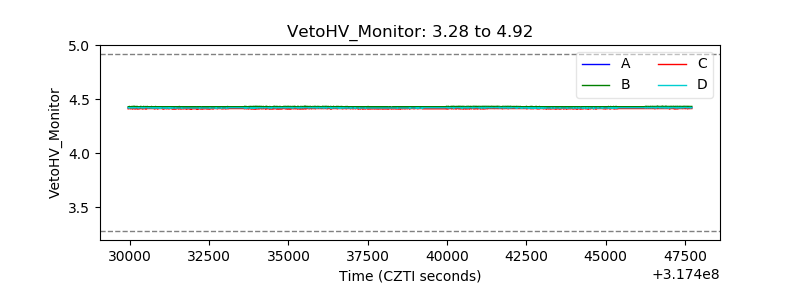

| Veto HV Monitor |  |
| Veto LLD |  |

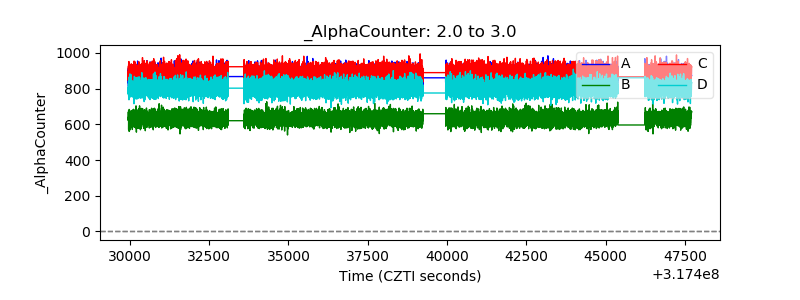

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
