| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_138T09_9000003458_23371cztM0_level2.evt | modeM0/AS1A07_138T09_9000003458_23371cztM0_level2_quad_clean.evt |
| Size (bytes) | 447,327,360 | 100,048,320 |
| Size | 426.6 MB | 95.4 MB |
| Events in quadrant A | 3,036,338 | 649,172 |
| Events in quadrant B | 3,194,959 | 660,291 |
| Events in quadrant C | 3,509,455 | 634,138 |
| Events in quadrant D | 3,354,623 | 622,818 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13507 | 1 |
| B | 0 | 13857 | 1 |
| C | 0 | 14558 | 1 |
| D | 0 | 14654 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6652 | 20 | 0.300661% |
| B | 6652 | 39 | 0.586290% |
| C | 6652 | 82 | 1.232712% |
| D | 6653 | 25 | 0.375770% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7572 | 6652 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7572 | 6653 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7572 | 6653 | 15 | 15 | 0.20% | 0.23% |  |
| D | 7573 | 6654 | 2 | 2 | 0.03% | 0.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9621 | 55.8 | 787 | 771 | 158.6 |
| A | 3 | 137 | 7185 | 40.44 | 787 | 771 | 158.6 |
| A | 0 | 226 | 6827 | 38.18 | 787 | 771 | 158.6 |
| B | 0 | 189 | 49688 | 325.22 | 789 | 770 | 150.4 |
| B | 0 | 229 | 36120 | 235.01 | 789 | 770 | 150.4 |
| B | 12 | 111 | 18705 | 119.24 | 789 | 770 | 150.4 |
| C | 0 | 239 | 267827 | 1516.48 | 756 | 763 | 176.1 |
| C | 14 | 238 | 119597 | 674.78 | 756 | 763 | 176.1 |
| C | 2 | 16 | 100807 | 568.08 | 756 | 763 | 176.1 |
| D | 7 | 238 | 148524 | 785.96 | 764 | 740 | 188.0 |
| D | 1 | 52 | 119332 | 630.71 | 764 | 740 | 188.0 |
| D | 9 | 85 | 72906 | 383.8 | 764 | 740 | 188.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

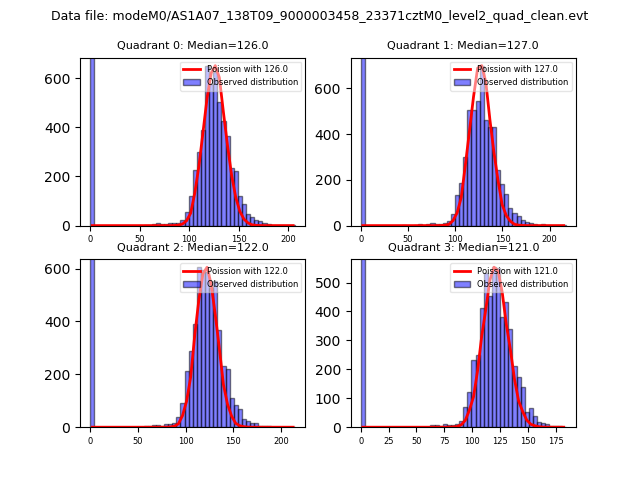

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

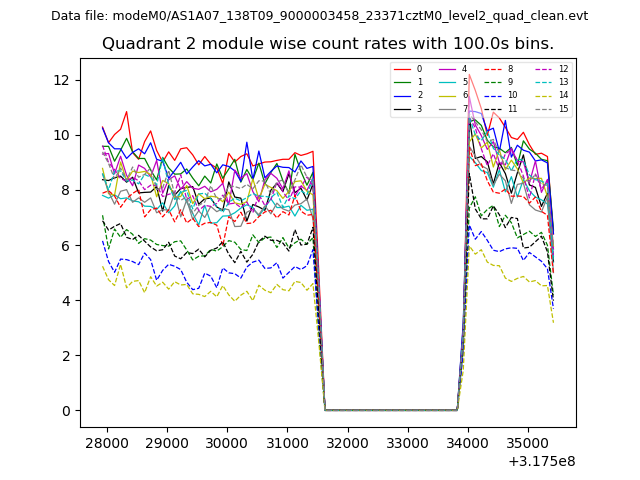

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

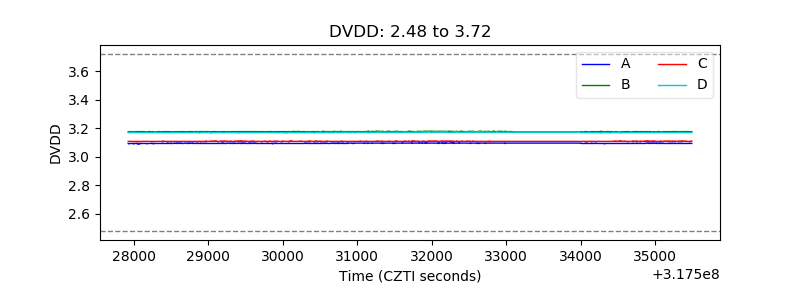

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

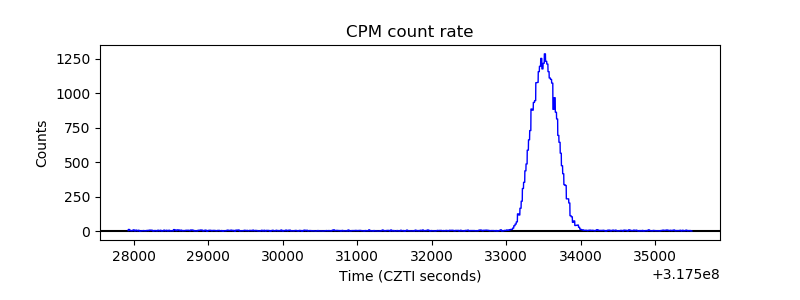

| _CPM_Rate |  |

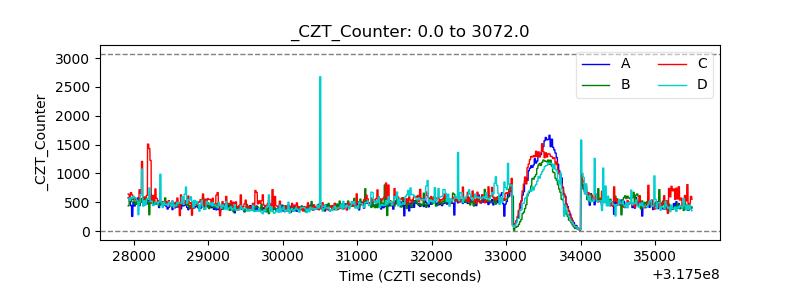

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

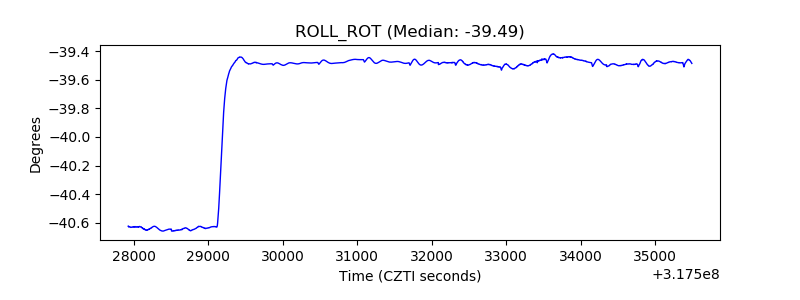

| _ROLL_ROT |  |
| _Roll_DEC |  |

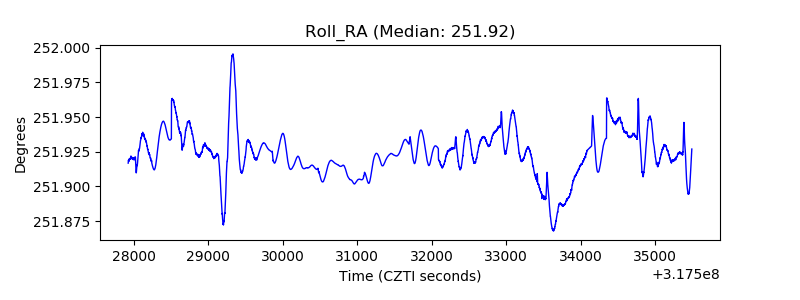

| _Roll_RA |  |
| Veto Counter |  |
