| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_138T09_9000003458_23374cztM0_level2.evt | modeM0/AS1A07_138T09_9000003458_23374cztM0_level2_quad_clean.evt |
| Size (bytes) | 417,634,560 | 89,153,280 |
| Size | 398.3 MB | 85.0 MB |
| Events in quadrant A | 2,863,202 | 579,841 |
| Events in quadrant B | 3,144,285 | 593,248 |
| Events in quadrant C | 3,179,822 | 560,743 |
| Events in quadrant D | 3,053,674 | 547,831 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 2 |
| B | 0 | 122 | 2 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12302 | 26 |
| B | 0 | 13184 | 23 |
| C | 0 | 13255 | 31 |
| D | 0 | 12980 | 25 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5989 | 22 | 0.367340% |
| B | 5991 | 41 | 0.684360% |
| C | 5987 | 60 | 1.002171% |
| D | 5990 | 30 | 0.500835% |

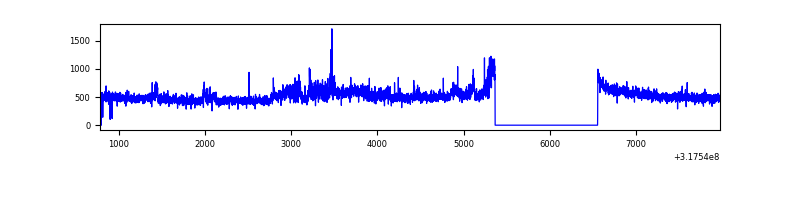

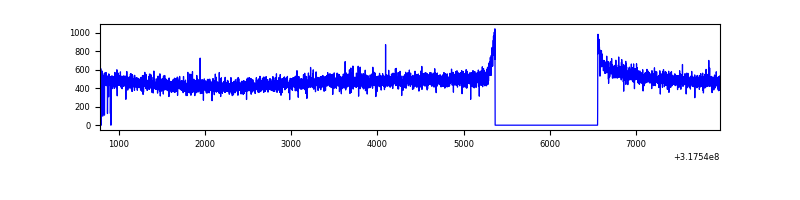

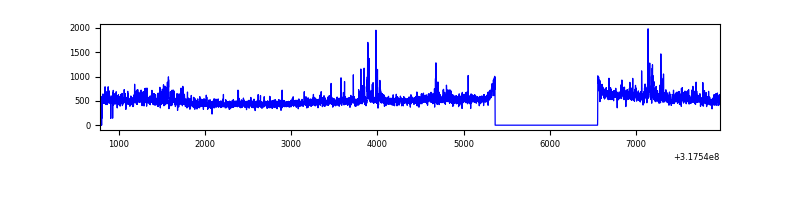

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7190 | 5999 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7192 | 6001 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7191 | 5998 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7191 | 5999 | 19 | 19 | 0.26% | 0.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9024 | 56.09 | 743 | 727 | 147.9 |
| A | 0 | 226 | 6431 | 38.56 | 743 | 727 | 147.9 |
| A | 3 | 137 | 6102 | 36.34 | 743 | 727 | 147.9 |
| B | 0 | 189 | 207829 | 1491.18 | 738 | 719 | 138.9 |
| B | 0 | 190 | 24382 | 170.37 | 738 | 719 | 138.9 |
| B | 12 | 111 | 16515 | 113.73 | 738 | 719 | 138.9 |
| C | 0 | 239 | 167357 | 1022.69 | 705 | 711 | 162.9 |
| C | 14 | 238 | 115082 | 701.88 | 705 | 711 | 162.9 |
| C | 7 | 247 | 74385 | 452.13 | 705 | 711 | 162.9 |
| D | 13 | 104 | 60193 | 345.12 | 716 | 695 | 172.4 |
| D | 1 | 52 | 54989 | 314.93 | 716 | 695 | 172.4 |
| D | 7 | 238 | 47501 | 271.5 | 716 | 695 | 172.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

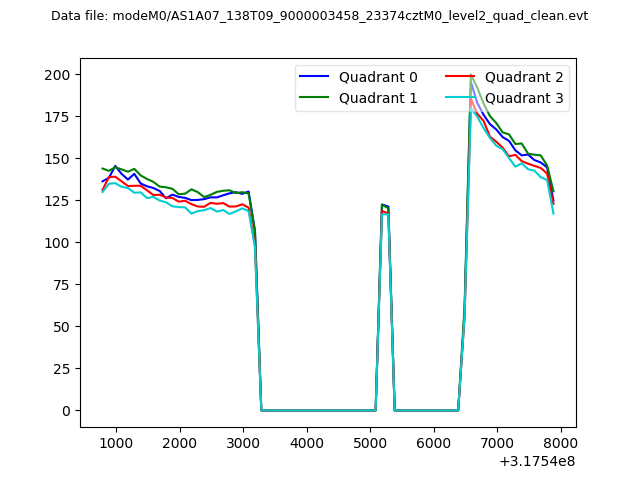

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

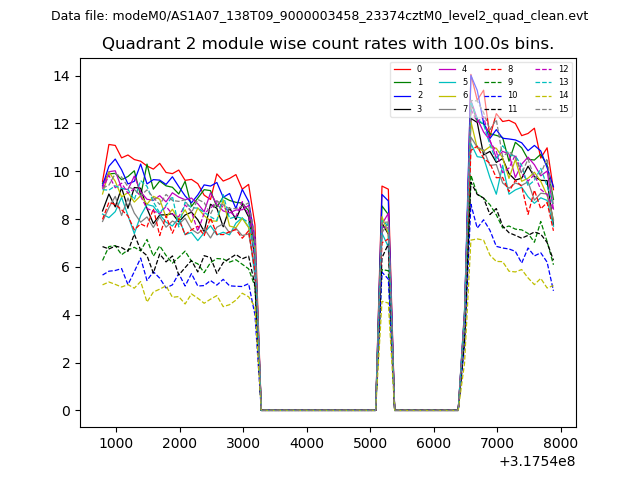

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

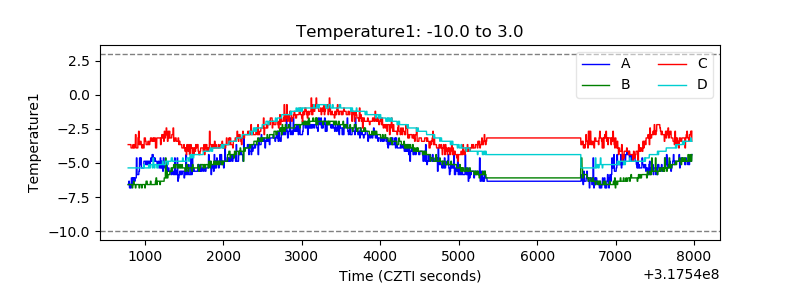

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

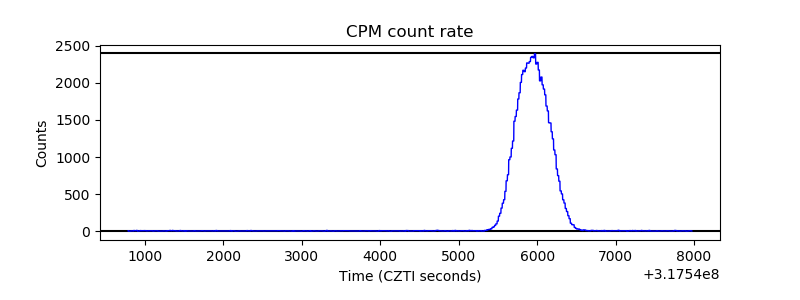

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

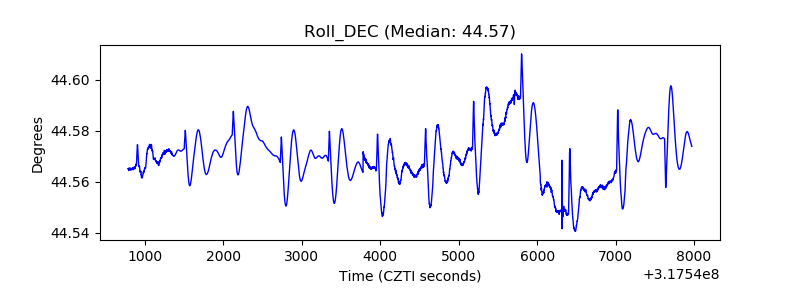

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
