| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_138T09_9000003458_23379cztM0_level2.evt | modeM0/AS1A07_138T09_9000003458_23379cztM0_level2_quad_clean.evt |
| Size (bytes) | 368,501,760 | 61,649,280 |
| Size | 351.4 MB | 58.8 MB |
| Events in quadrant A | 1,977,641 | 404,822 |
| Events in quadrant B | 2,111,393 | 406,077 |
| Events in quadrant C | 4,203,877 | 374,144 |
| Events in quadrant D | 2,587,824 | 392,111 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 84 | 0 |
| B | 0 | 84 | 0 |
| C | 0 | 84 | 0 |
| D | 0 | 84 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8551 | 78 |
| B | 0 | 8869 | 72 |
| C | 0 | 15440 | 171 |
| D | 0 | 10465 | 119 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4107 | 55 | 1.339177% |
| B | 4108 | 89 | 2.166504% |
| C | 4105 | 347 | 8.453106% |
| D | 4107 | 106 | 2.580959% |

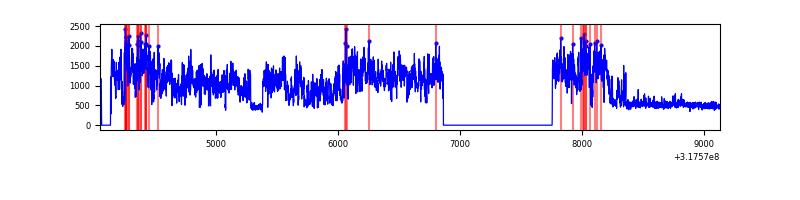

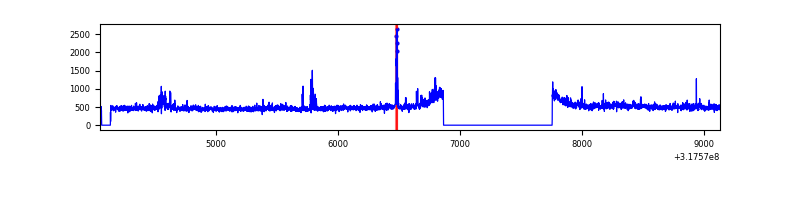

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5074 | 4113 | 0 | 0 | 0.00% | 0.00% |  |
| B | 5074 | 4113 | 4 | 4 | 0.08% | 0.10% |  |
| C | 5074 | 4110 | 40 | 40 | 0.79% | 0.97% |  |
| D | 5074 | 4110 | 53 | 53 | 1.04% | 1.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 6837 | 61.14 | 513 | 502 | 103.6 |
| A | 3 | 137 | 4546 | 39.03 | 513 | 502 | 103.6 |
| A | 0 | 226 | 4314 | 36.79 | 513 | 502 | 103.6 |
| B | 0 | 189 | 85605 | 863.78 | 508 | 496 | 98.5 |
| B | 0 | 229 | 31902 | 318.74 | 508 | 496 | 98.5 |
| B | 12 | 111 | 11850 | 115.23 | 508 | 496 | 98.5 |
| C | 0 | 239 | 2214155 | 19761.78 | 480 | 483 | 112.0 |
| C | 14 | 238 | 74907 | 664.39 | 480 | 483 | 112.0 |
| C | 7 | 247 | 16405 | 142.14 | 480 | 483 | 112.0 |
| D | 1 | 52 | 657282 | 5406.36 | 497 | 483 | 121.5 |
| D | 7 | 238 | 28530 | 230.87 | 497 | 483 | 121.5 |
| D | 2 | 234 | 16468 | 131.58 | 497 | 483 | 121.5 |

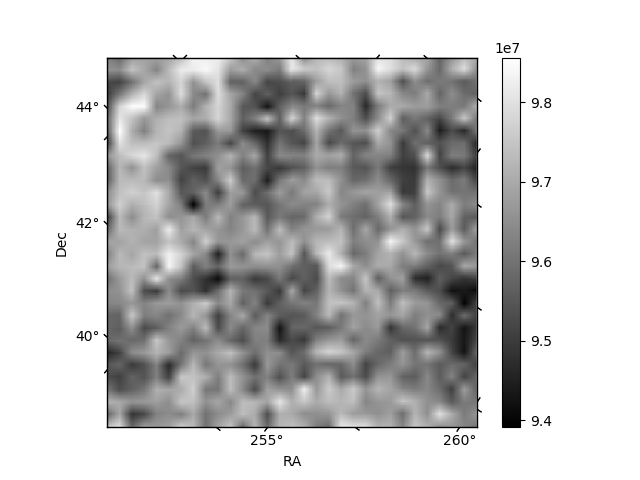

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

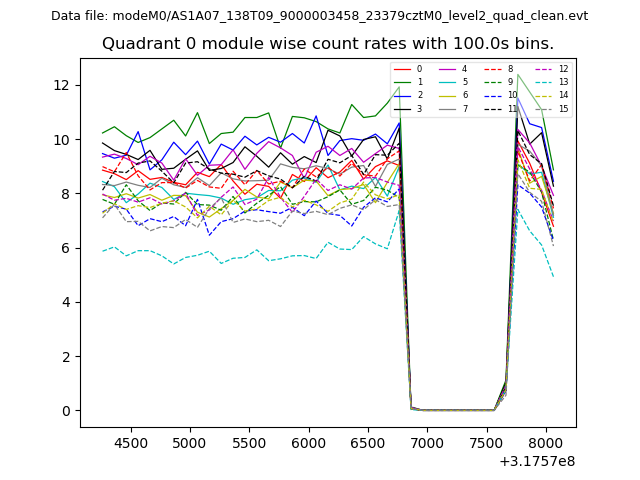

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

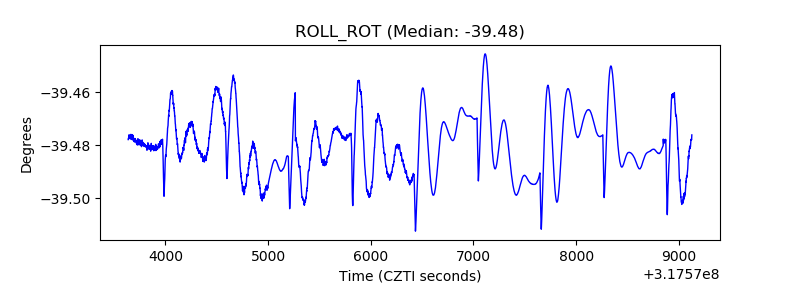

| _ROLL_ROT |  |

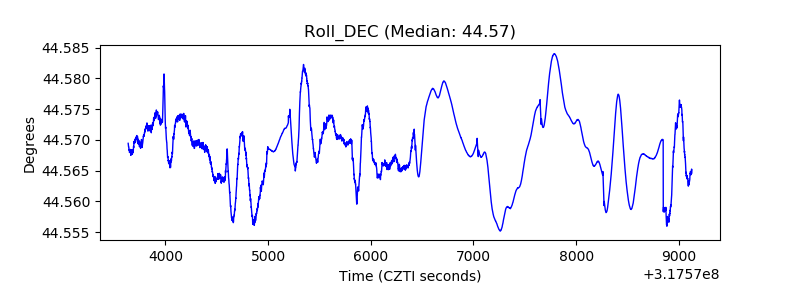

| _Roll_DEC |  |

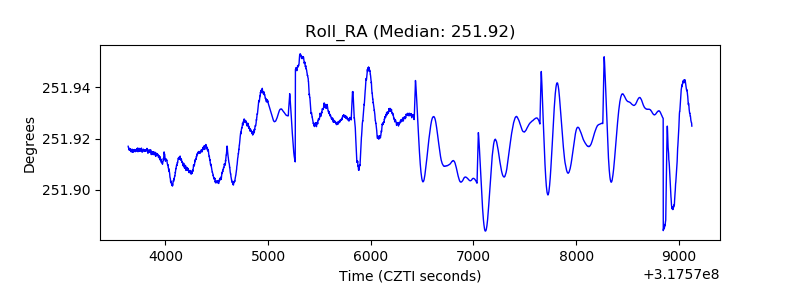

| _Roll_RA |  |
| Veto Counter |  |
