| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_138T09_9000003458_23386cztM0_level2.evt | modeM0/AS1A07_138T09_9000003458_23386cztM0_level2_quad_clean.evt |
| Size (bytes) | 430,940,160 | 93,850,560 |
| Size | 411.0 MB | 89.5 MB |
| Events in quadrant A | 2,976,233 | 602,572 |
| Events in quadrant B | 3,233,244 | 616,029 |
| Events in quadrant C | 3,096,716 | 591,223 |
| Events in quadrant D | 3,300,012 | 576,225 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13265 | 28 |
| B | 0 | 13979 | 33 |
| C | 0 | 13533 | 22 |
| D | 0 | 14440 | 32 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6544 | 6 | 0.091687% |
| B | 6545 | 27 | 0.412529% |
| C | 6550 | 36 | 0.549618% |
| D | 6545 | 53 | 0.809778% |

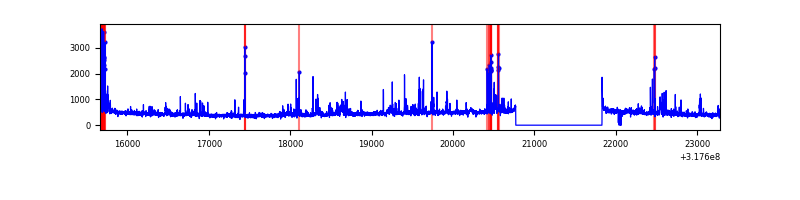

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7618 | 6555 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7619 | 6552 | 7 | 7 | 0.09% | 0.11% |  |
| C | 7619 | 6557 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7619 | 6556 | 42 | 42 | 0.55% | 0.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9016 | 52.76 | 772 | 755 | 156.6 |
| A | 3 | 137 | 6793 | 38.56 | 772 | 755 | 156.6 |
| A | 0 | 226 | 6695 | 37.93 | 772 | 755 | 156.6 |
| B | 0 | 189 | 102924 | 694.92 | 772 | 754 | 147.0 |
| B | 0 | 190 | 70638 | 475.32 | 772 | 754 | 147.0 |
| B | 12 | 111 | 17743 | 115.55 | 772 | 754 | 147.0 |
| C | 14 | 238 | 118096 | 678.13 | 742 | 746 | 173.1 |
| C | 10 | 9 | 59060 | 336.98 | 742 | 746 | 173.1 |
| C | 2 | 16 | 19512 | 108.44 | 742 | 746 | 173.1 |
| D | 1 | 52 | 383961 | 2103.98 | 745 | 722 | 182.1 |
| D | 7 | 238 | 53893 | 291.91 | 745 | 722 | 182.1 |
| D | 13 | 104 | 31618 | 169.62 | 745 | 722 | 182.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

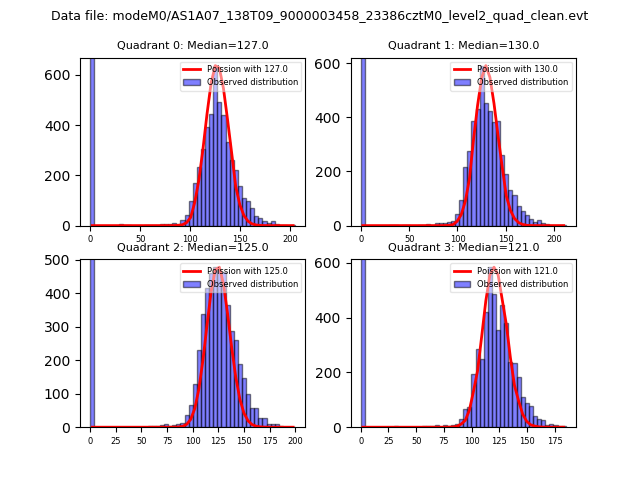

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

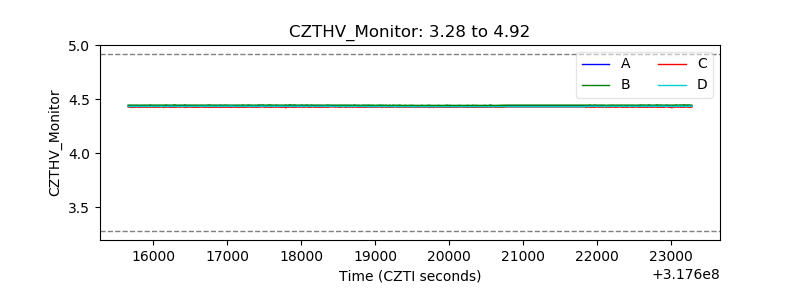

| CZT HV Monitor |  |
| D_VDD |  |

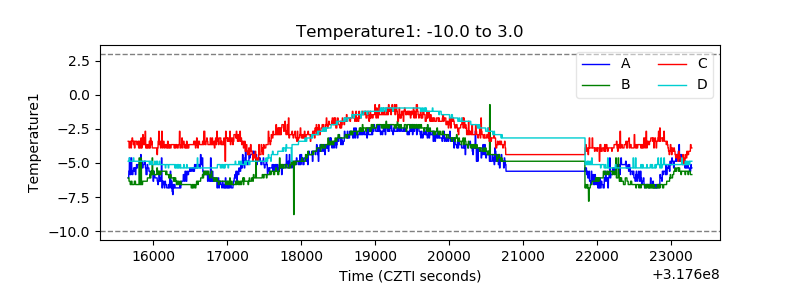

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

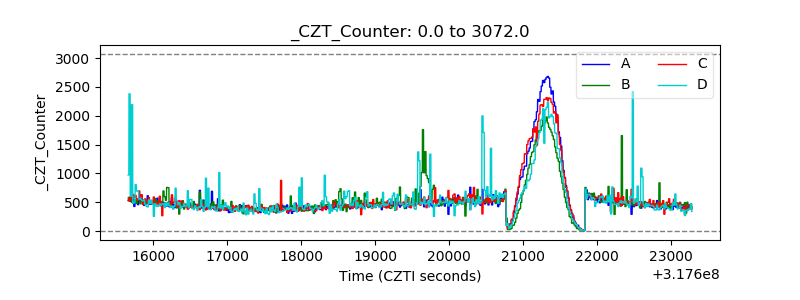

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

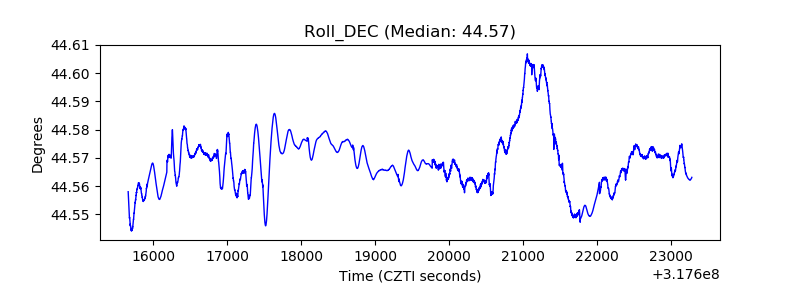

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
