| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_138T09_9000003458_23393cztM0_level2.evt | modeM0/AS1A07_138T09_9000003458_23393cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,189,759,680 | 217,866,240 |
| Size | 1.1 GB | 207.8 MB |
| Events in quadrant A | 7,935,721 | 1,401,995 |
| Events in quadrant B | 8,707,179 | 1,419,688 |
| Events in quadrant C | 8,160,429 | 1,363,934 |
| Events in quadrant D | 10,160,276 | 1,321,965 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 322 | 0 |
| B | 0 | 322 | 0 |
| C | 0 | 322 | 0 |
| D | 0 | 322 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37 | 0 |
| B | 0 | 37 | 0 |
| C | 0 | 37 | 0 |
| D | 0 | 37 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32816 | 3 |
| B | 0 | 35159 | 3 |
| C | 0 | 33079 | 3 |
| D | 0 | 40123 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15822 | 242 | 1.529516% |
| B | 15823 | 307 | 1.940214% |
| C | 15823 | 304 | 1.921254% |
| D | 15823 | 512 | 3.235796% |

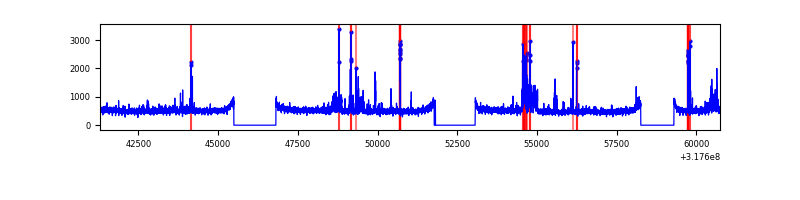

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19447 | 15822 | 0 | 0 | 0.00% | 0.00% |  |
| B | 19448 | 15824 | 47 | 47 | 0.24% | 0.30% |  |
| C | 19448 | 15824 | 6 | 6 | 0.03% | 0.04% |  |
| D | 19448 | 15824 | 307 | 307 | 1.58% | 1.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 23100 | 51.82 | 2059 | 2016 | 406.8 |
| A | 0 | 226 | 18006 | 39.3 | 2059 | 2016 | 406.8 |
| A | 3 | 137 | 17039 | 36.93 | 2059 | 2016 | 406.8 |
| B | 0 | 190 | 400045 | 1068.67 | 2021 | 1977 | 372.5 |
| B | 0 | 189 | 245177 | 652.91 | 2021 | 1977 | 372.5 |
| B | 5 | 172 | 71502 | 186.65 | 2021 | 1977 | 372.5 |
| C | 14 | 238 | 318674 | 704.14 | 1972 | 1988 | 449.7 |
| C | 10 | 9 | 127643 | 279.39 | 1972 | 1988 | 449.7 |
| C | 13 | 61 | 14012 | 26.73 | 1972 | 1988 | 449.7 |
| D | 1 | 52 | 2282996 | 4729.25 | 1999 | 1943 | 482.3 |
| D | 12 | 233 | 232699 | 478.42 | 1999 | 1943 | 482.3 |
| D | 2 | 234 | 68485 | 137.96 | 1999 | 1943 | 482.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

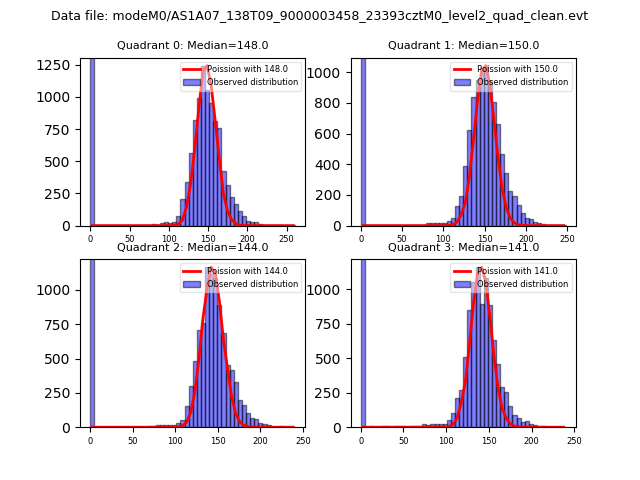

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

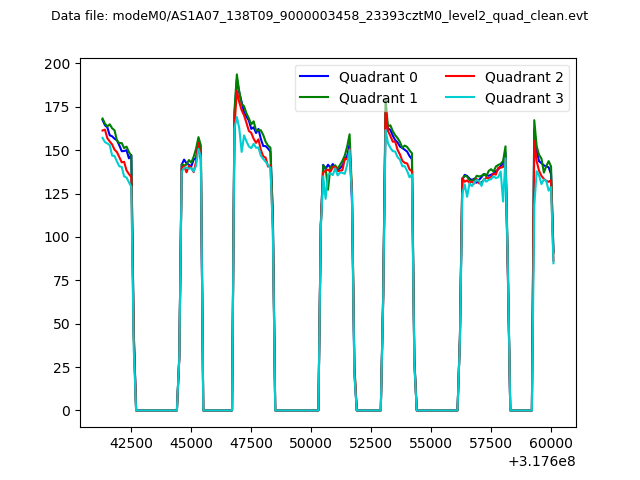

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

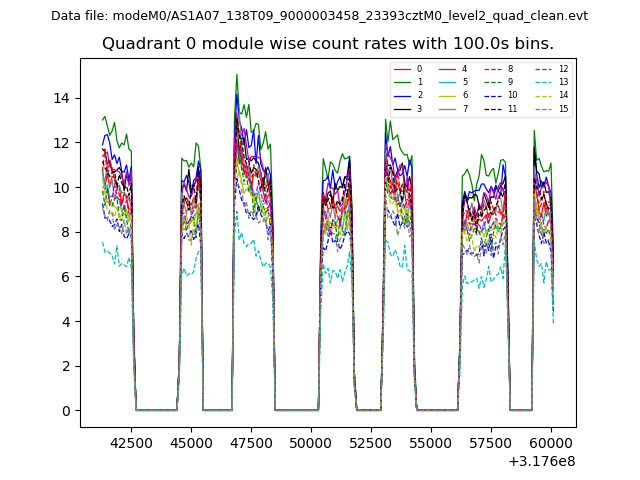

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

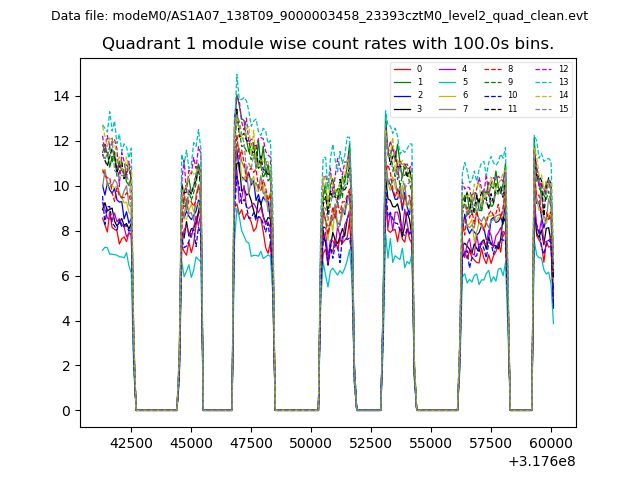

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

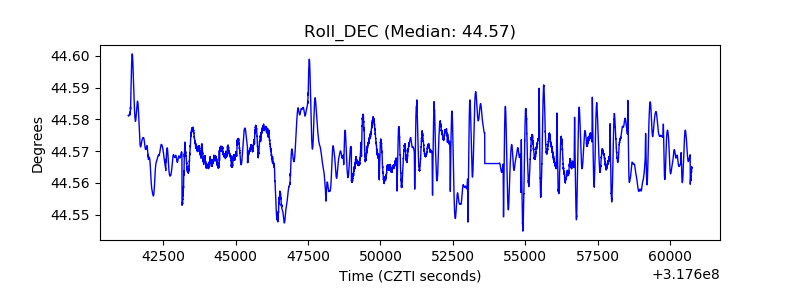

| _Roll_DEC |  |

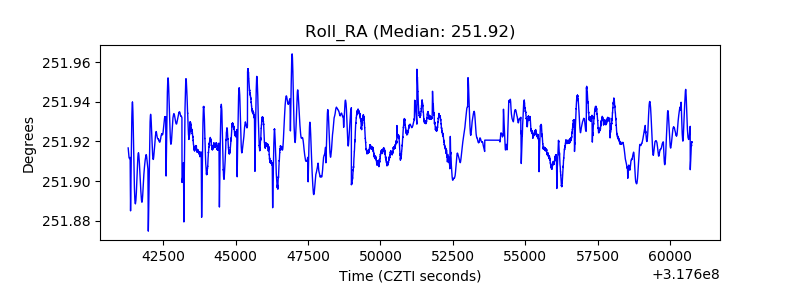

| _Roll_RA |  |

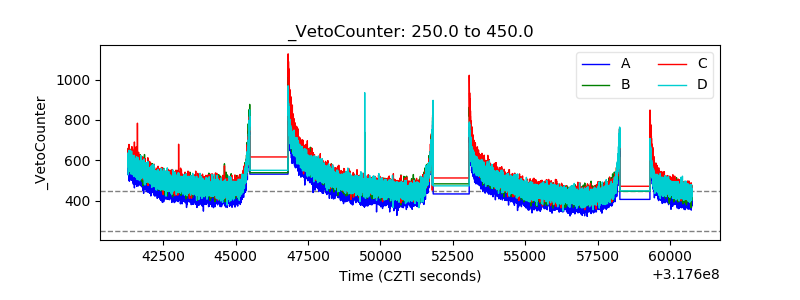

| Veto Counter |  |
