| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_127T02_9000003460_23400cztM0_level2.evt | modeM0/AS1A07_127T02_9000003460_23400cztM0_level2_quad_clean.evt |
| Size (bytes) | 677,194,560 | 63,169,920 |
| Size | 645.8 MB | 60.2 MB |
| Events in quadrant A | 3,222,452 | 405,140 |
| Events in quadrant B | 3,278,485 | 409,969 |
| Events in quadrant C | 3,122,309 | 394,669 |
| Events in quadrant D | 10,457,569 | 260,890 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13425 | 1 |
| B | 0 | 13662 | 1 |
| C | 0 | 13223 | 1 |
| D | 0 | 35391 | 9 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6330 | 41 | 0.647709% |
| B | 6330 | 77 | 1.216430% |
| C | 6331 | 90 | 1.421576% |
| D | 6330 | 3019 | 47.693523% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7285 | 6330 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7285 | 6330 | 20 | 20 | 0.27% | 0.32% |  |
| C | 7286 | 6331 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7284 | 6329 | 2978 | 2978 | 40.88% | 47.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 209850 | 1323.98 | 781 | 764 | 157.9 |
| A | 13 | 254 | 9257 | 53.78 | 781 | 764 | 157.9 |
| A | 3 | 137 | 6888 | 38.78 | 781 | 764 | 157.9 |
| B | 0 | 189 | 189471 | 1252.7 | 779 | 760 | 150.6 |
| B | 12 | 111 | 18442 | 117.38 | 779 | 760 | 150.6 |
| B | 11 | 111 | 16525 | 104.65 | 779 | 760 | 150.6 |
| C | 14 | 238 | 119688 | 677.33 | 749 | 753 | 175.6 |
| C | 2 | 16 | 55944 | 314.31 | 749 | 753 | 175.6 |
| C | 10 | 91 | 9328 | 48.83 | 749 | 753 | 175.6 |
| D | 1 | 52 | 8223675 | 58711.79 | 575 | 559 | 140.1 |
| D | 7 | 238 | 35282 | 247.92 | 575 | 559 | 140.1 |
| D | 9 | 35 | 17898 | 123.8 | 575 | 559 | 140.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

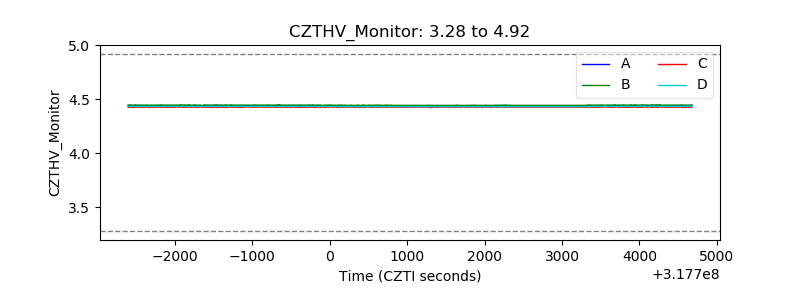

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

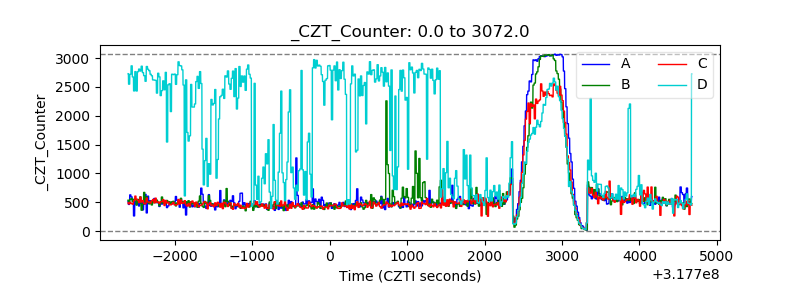

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

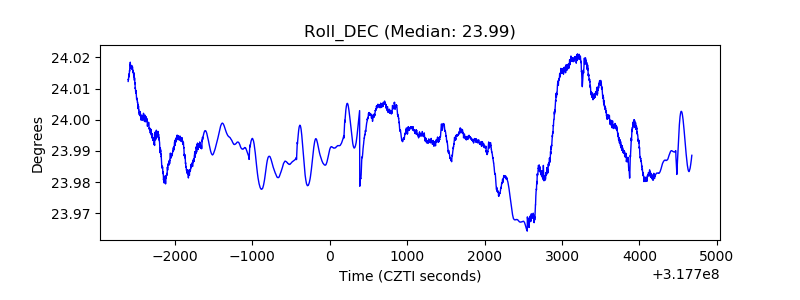

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
