| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_127T02_9000003460_23410cztM0_level2.evt | modeM0/AS1A07_127T02_9000003460_23410cztM0_level2_quad_clean.evt |
| Size (bytes) | 535,302,720 | 103,893,120 |
| Size | 510.5 MB | 99.1 MB |
| Events in quadrant A | 3,499,995 | 678,475 |
| Events in quadrant B | 3,712,738 | 679,893 |
| Events in quadrant C | 4,275,524 | 629,169 |
| Events in quadrant D | 4,214,206 | 636,737 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15321 | 1 |
| B | 0 | 15872 | 1 |
| C | 0 | 17432 | 1 |
| D | 0 | 17596 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7502 | 22 | 0.293255% |
| B | 7503 | 54 | 0.719712% |
| C | 7503 | 254 | 3.385313% |
| D | 7503 | 151 | 2.012528% |

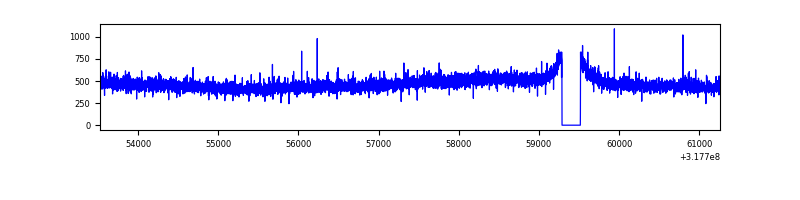

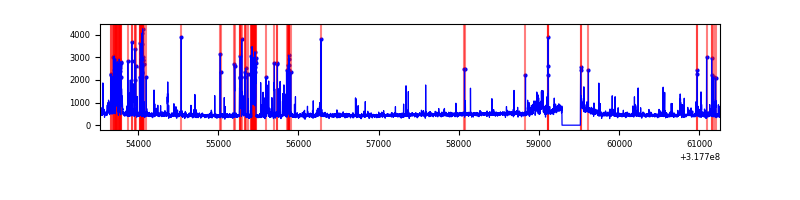

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7732 | 7503 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7733 | 7504 | 7 | 7 | 0.09% | 0.09% |  |
| C | 7733 | 7504 | 164 | 164 | 2.12% | 2.19% |  |
| D | 7733 | 7504 | 144 | 144 | 1.86% | 1.92% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11274 | 56.85 | 907 | 885 | 182.8 |
| A | 3 | 137 | 8164 | 39.83 | 907 | 885 | 182.8 |
| A | 0 | 226 | 7883 | 38.29 | 907 | 885 | 182.8 |
| B | 0 | 189 | 103044 | 597.23 | 900 | 878 | 171.1 |
| B | 6 | 36 | 39087 | 223.36 | 900 | 878 | 171.1 |
| B | 0 | 229 | 23653 | 133.14 | 900 | 878 | 171.1 |
| C | 10 | 9 | 769798 | 3804.76 | 854 | 859 | 202.1 |
| C | 14 | 238 | 134746 | 662.48 | 854 | 859 | 202.1 |
| C | 10 | 91 | 17993 | 84.78 | 854 | 859 | 202.1 |
| D | 1 | 52 | 758427 | 3503.4 | 878 | 854 | 216.2 |
| D | 13 | 172 | 75940 | 347.24 | 878 | 854 | 216.2 |
| D | 2 | 234 | 35531 | 160.36 | 878 | 854 | 216.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

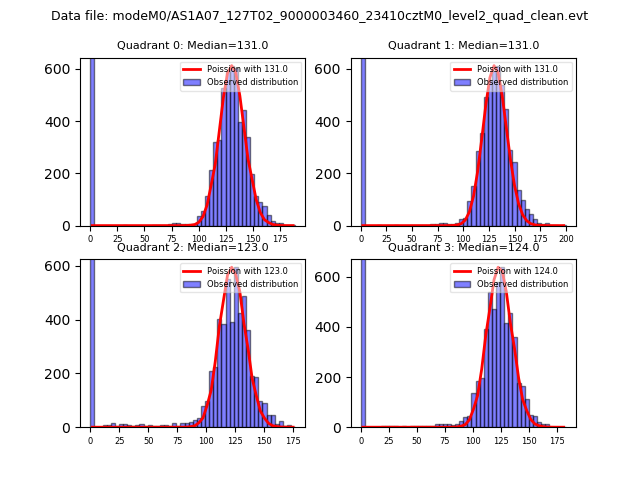

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

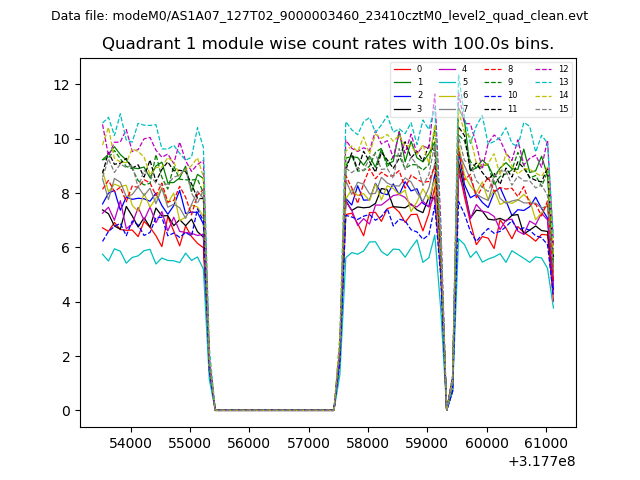

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

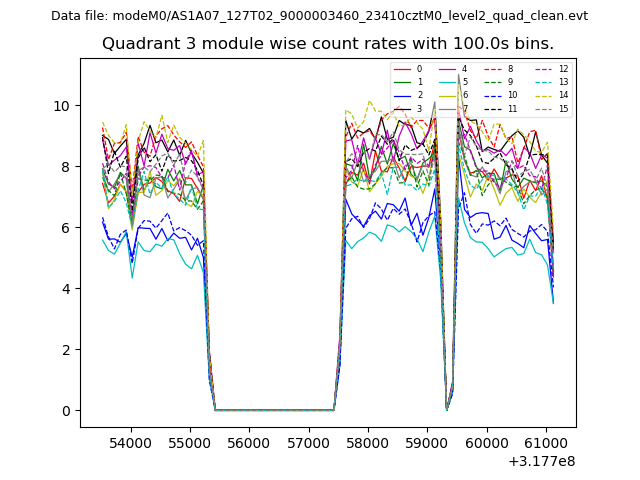

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

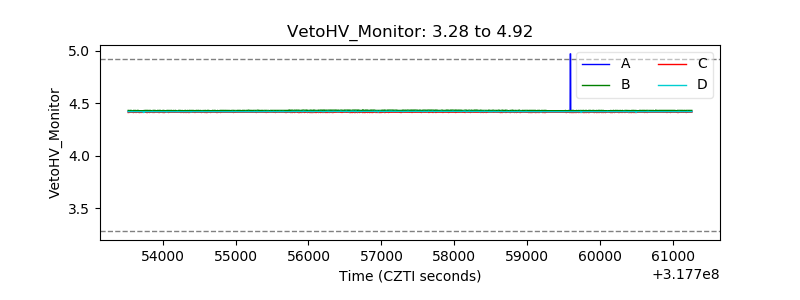

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

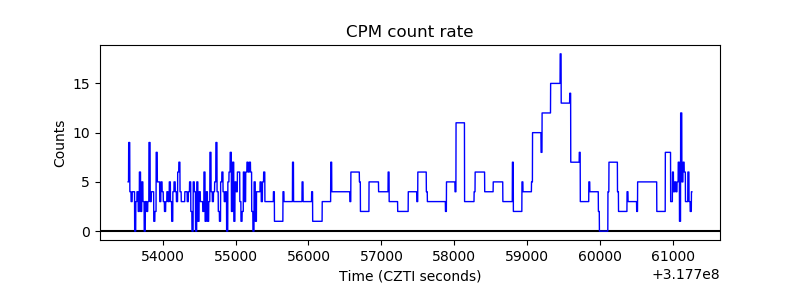

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

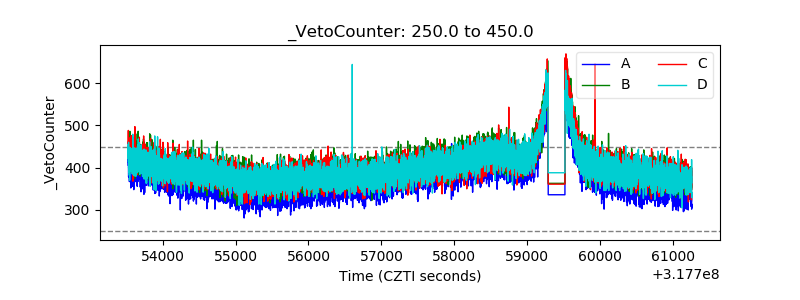

| Veto Counter |  |
