| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_127T02_9000003460_23411cztM0_level2.evt | modeM0/AS1A07_127T02_9000003460_23411cztM0_level2_quad_clean.evt |
| Size (bytes) | 471,268,800 | 86,742,720 |
| Size | 449.4 MB | 82.7 MB |
| Events in quadrant A | 3,170,915 | 548,833 |
| Events in quadrant B | 3,281,399 | 554,529 |
| Events in quadrant C | 3,946,483 | 522,720 |
| Events in quadrant D | 3,406,904 | 522,156 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13951 | 1 |
| B | 0 | 14137 | 1 |
| C | 0 | 16031 | 1 |
| D | 0 | 14719 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6865 | 12 | 0.174800% |
| B | 6866 | 28 | 0.407807% |
| C | 6866 | 199 | 2.898340% |
| D | 6866 | 18 | 0.262161% |

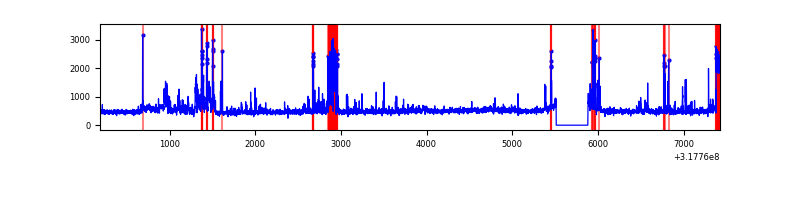

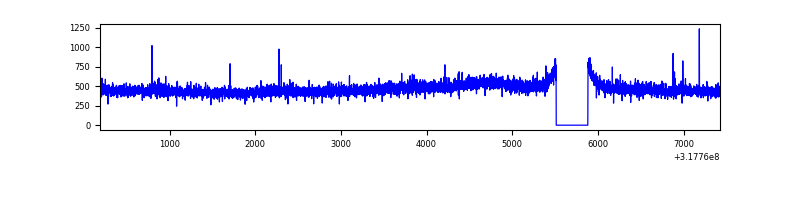

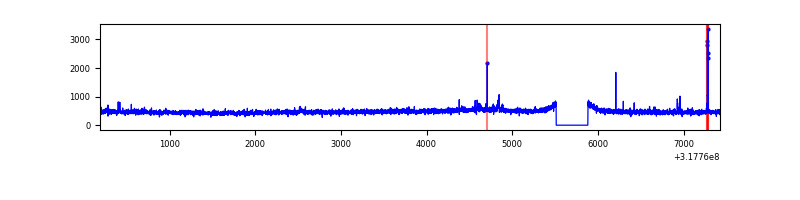

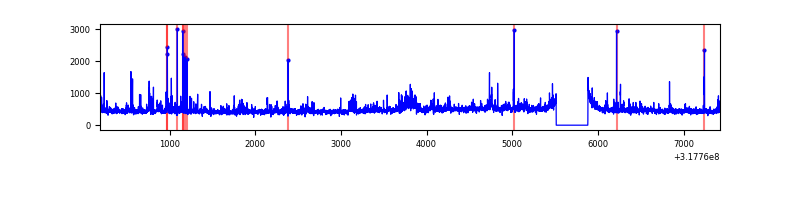

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7235 | 6866 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7236 | 6867 | 6 | 6 | 0.08% | 0.09% |  |
| C | 7236 | 6867 | 127 | 127 | 1.76% | 1.85% |  |
| D | 7236 | 6867 | 11 | 11 | 0.15% | 0.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11224 | 62.97 | 821 | 802 | 165.5 |
| A | 3 | 137 | 7357 | 39.61 | 821 | 802 | 165.5 |
| A | 0 | 226 | 7042 | 37.71 | 821 | 802 | 165.5 |
| B | 0 | 189 | 27117 | 166.96 | 817 | 797 | 157.6 |
| B | 0 | 183 | 23544 | 144.29 | 817 | 797 | 157.6 |
| B | 12 | 111 | 19386 | 117.92 | 817 | 797 | 157.6 |
| C | 10 | 9 | 754685 | 4105.25 | 781 | 785 | 183.6 |
| C | 14 | 238 | 123055 | 665.8 | 781 | 785 | 183.6 |
| C | 8 | 128 | 9528 | 47.61 | 781 | 785 | 183.6 |
| D | 1 | 52 | 218946 | 1103.66 | 802 | 780 | 197.7 |
| D | 7 | 238 | 90111 | 451.91 | 802 | 780 | 197.7 |
| D | 13 | 172 | 36886 | 182.65 | 802 | 780 | 197.7 |

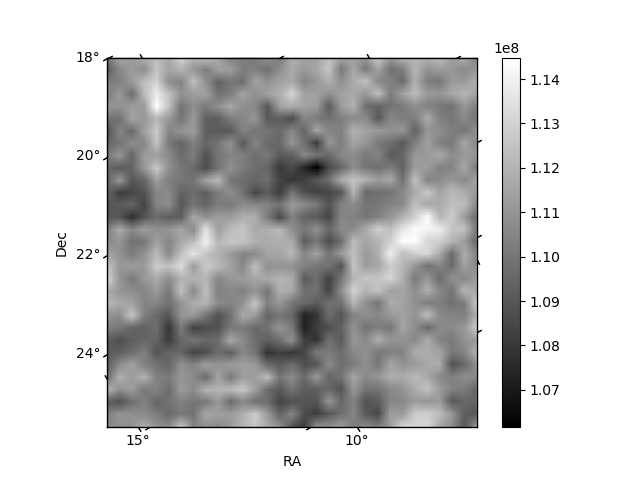

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

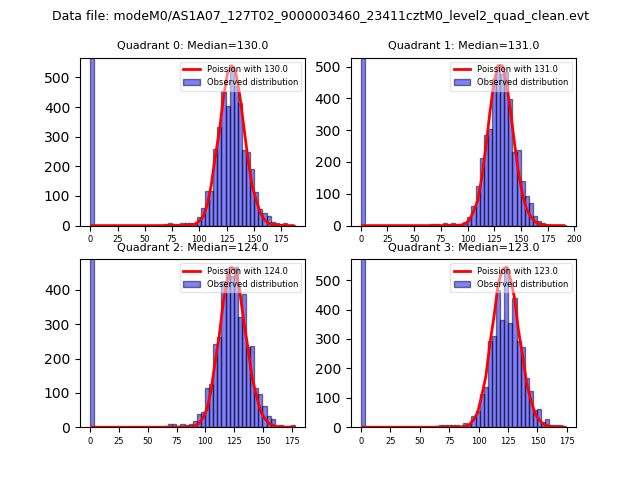

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

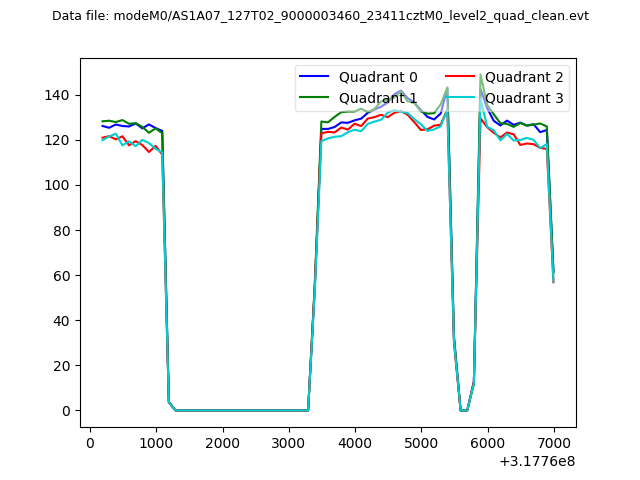

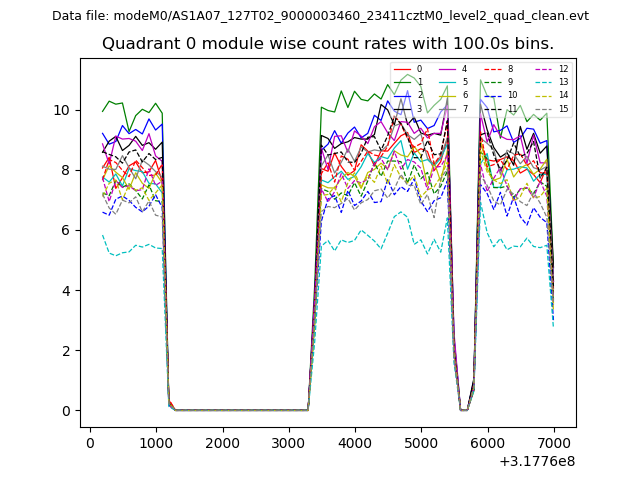

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

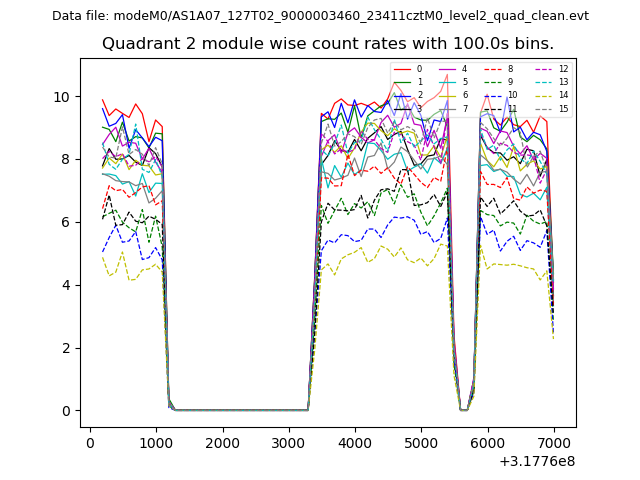

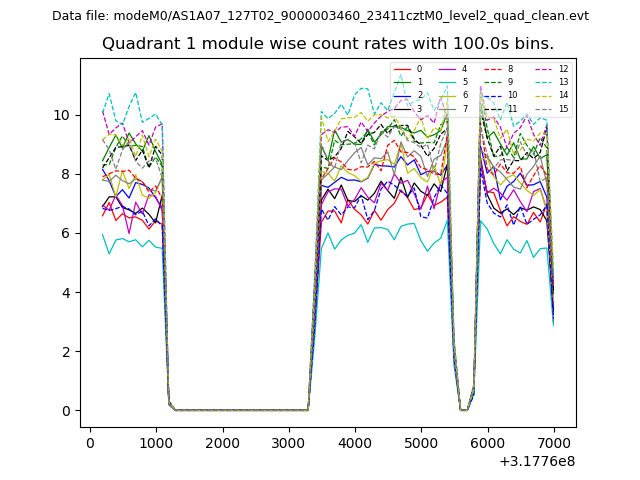

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

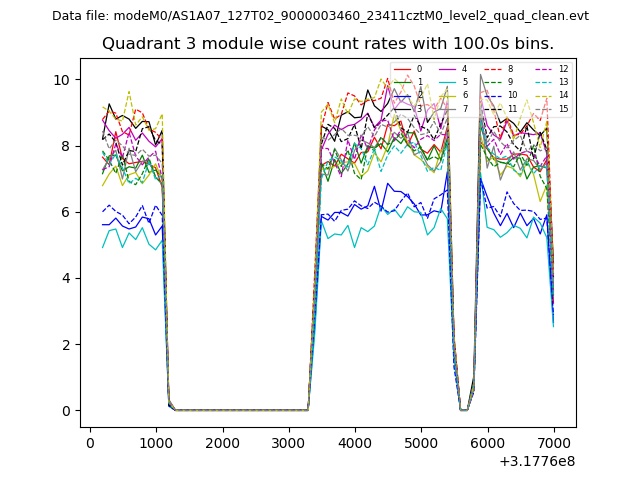

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

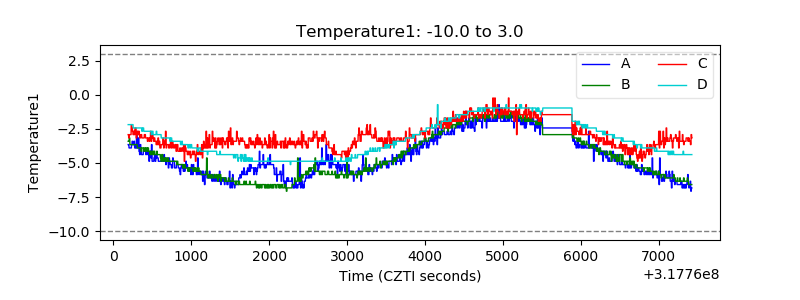

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

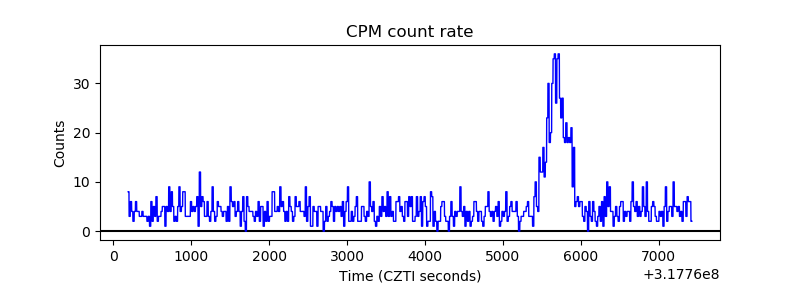

| _CPM_Rate |  |

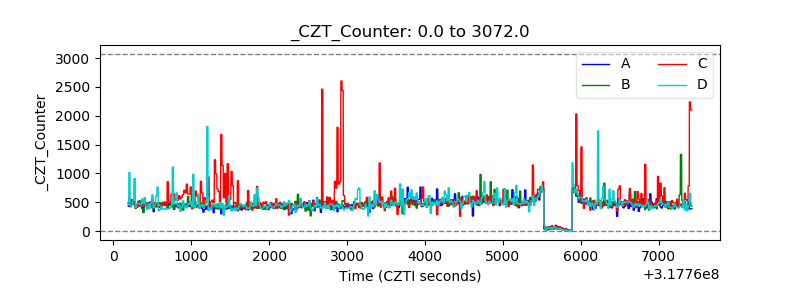

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

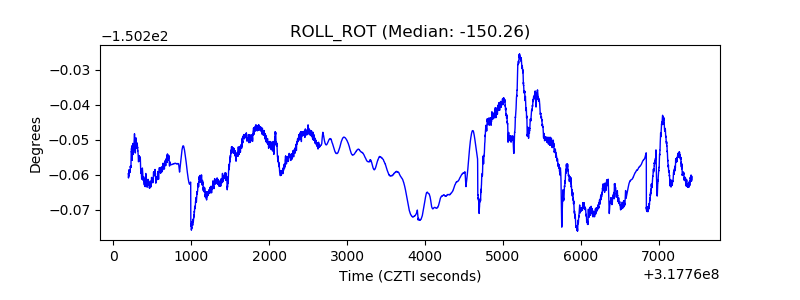

| _ROLL_ROT |  |

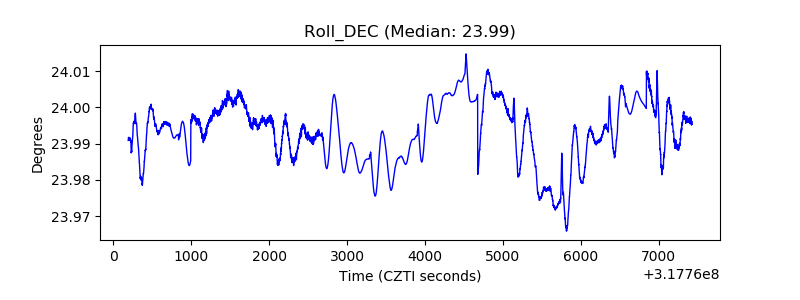

| _Roll_DEC |  |

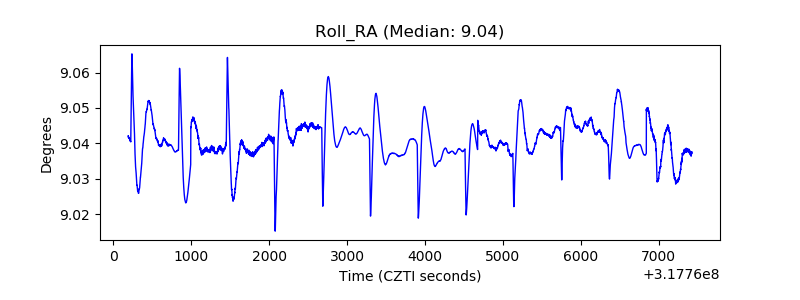

| _Roll_RA |  |

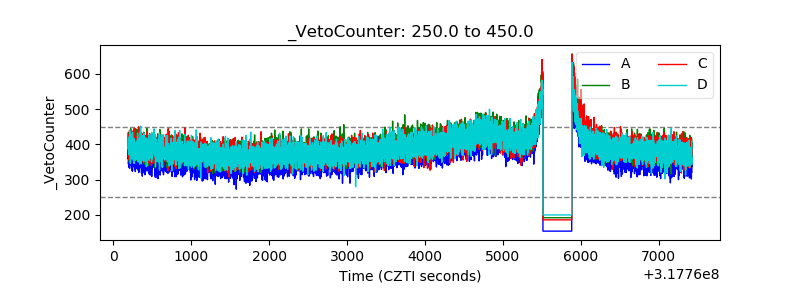

| Veto Counter |  |
