| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_127T02_9000003460_23415cztM0_level2.evt | modeM0/AS1A07_127T02_9000003460_23415cztM0_level2_quad_clean.evt |
| Size (bytes) | 487,356,480 | 69,960,960 |
| Size | 464.8 MB | 66.7 MB |
| Events in quadrant A | 3,282,773 | 421,778 |
| Events in quadrant B | 3,485,010 | 423,962 |
| Events in quadrant C | 3,520,277 | 405,754 |
| Events in quadrant D | 4,018,395 | 401,516 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13889 | 2 |
| B | 0 | 14464 | 2 |
| C | 0 | 14662 | 2 |
| D | 0 | 16204 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6672 | 73 | 1.094125% |
| B | 6672 | 94 | 1.408873% |
| C | 6672 | 124 | 1.858513% |
| D | 6672 | 83 | 1.244005% |

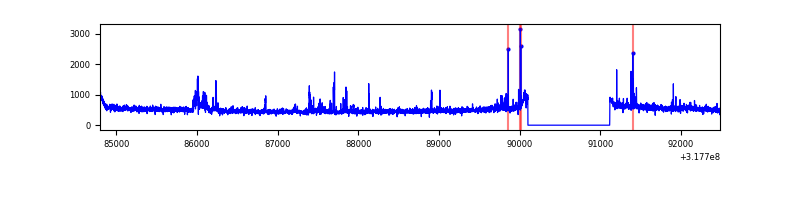

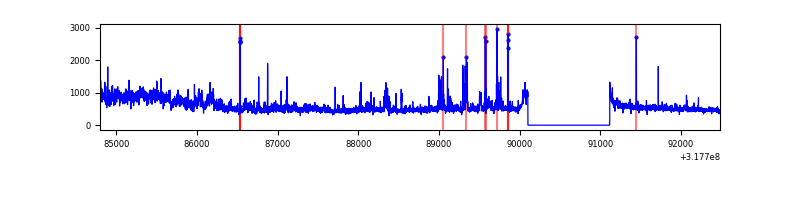

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7687 | 6672 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7687 | 6672 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7687 | 6672 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7687 | 6672 | 13 | 13 | 0.17% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10556 | 56.59 | 852 | 833 | 171.8 |
| A | 3 | 137 | 7434 | 38.42 | 852 | 833 | 171.8 |
| A | 0 | 226 | 7228 | 37.22 | 852 | 833 | 171.8 |
| B | 0 | 190 | 88565 | 540.22 | 848 | 828 | 162.4 |
| B | 0 | 189 | 53234 | 322.68 | 848 | 828 | 162.4 |
| B | 12 | 111 | 19745 | 116.48 | 848 | 828 | 162.4 |
| C | 10 | 9 | 211231 | 1108.25 | 814 | 821 | 189.9 |
| C | 14 | 238 | 130074 | 680.79 | 814 | 821 | 189.9 |
| C | 13 | 61 | 5666 | 25.52 | 814 | 821 | 189.9 |
| D | 7 | 238 | 598775 | 3006.74 | 823 | 800 | 198.9 |
| D | 1 | 52 | 246674 | 1236.31 | 823 | 800 | 198.9 |
| D | 9 | 35 | 32290 | 158.34 | 823 | 800 | 198.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

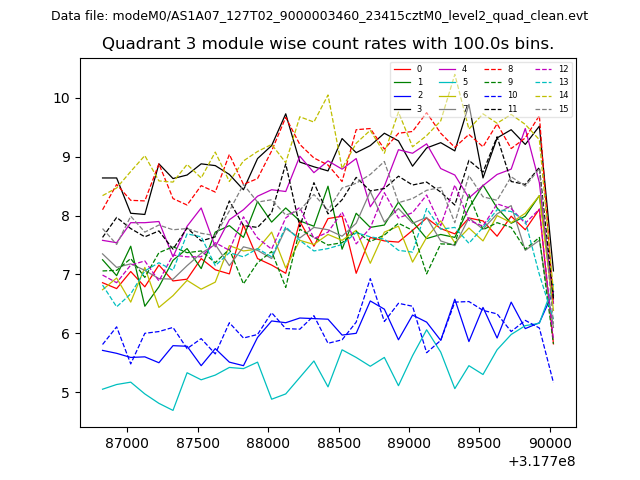

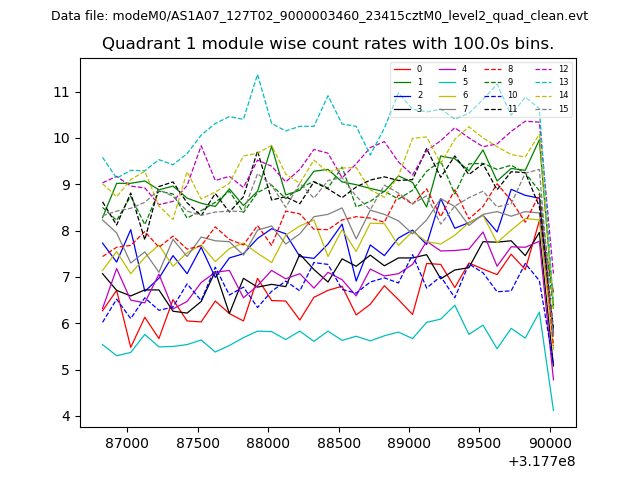

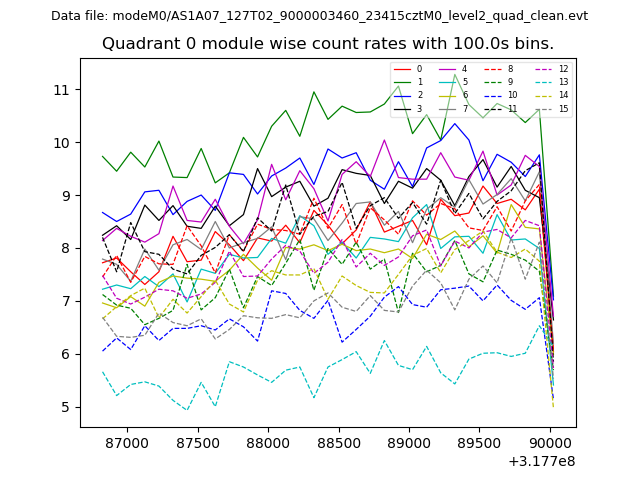

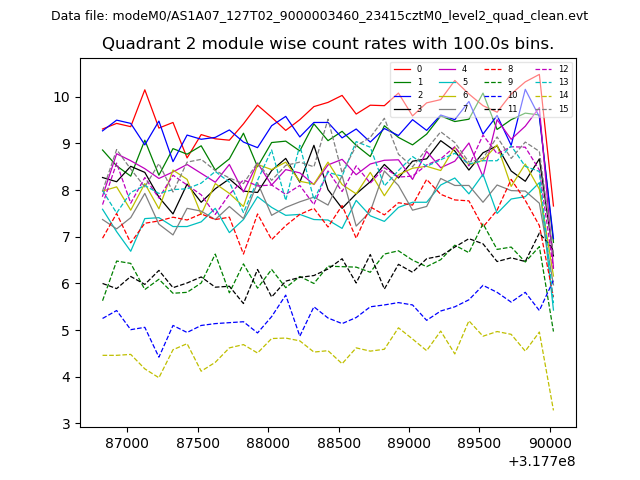

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

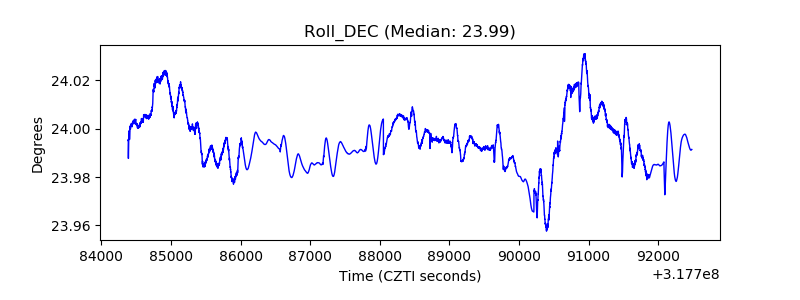

| _Roll_DEC |  |
| _Roll_RA |  |

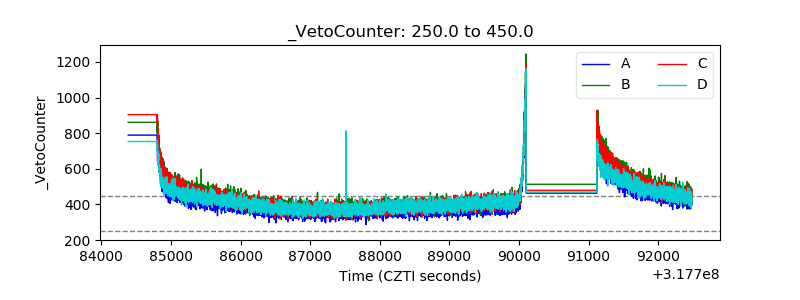

| Veto Counter |  |
