| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_127T02_9000003460_23417cztM0_level2.evt | modeM0/AS1A07_127T02_9000003460_23417cztM0_level2_quad_clean.evt |
| Size (bytes) | 452,701,440 | 80,576,640 |
| Size | 431.7 MB | 76.8 MB |
| Events in quadrant A | 3,212,465 | 511,200 |
| Events in quadrant B | 3,313,014 | 518,679 |
| Events in quadrant C | 3,531,657 | 486,339 |
| Events in quadrant D | 3,226,863 | 485,938 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13423 | 0 |
| B | 0 | 13766 | 0 |
| C | 0 | 14386 | 0 |
| D | 0 | 13555 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6279 | 58 | 0.923714% |
| B | 6278 | 84 | 1.338006% |
| C | 6278 | 155 | 2.468939% |
| D | 6278 | 60 | 0.955718% |

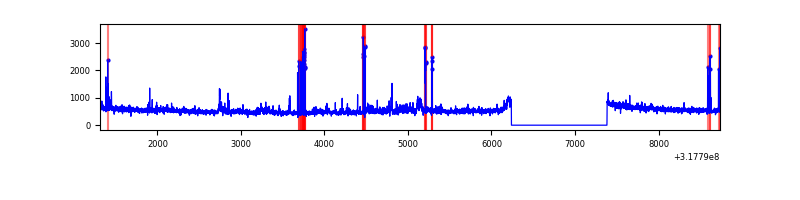

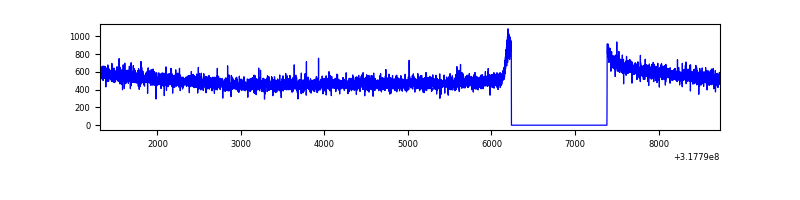

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7424 | 6279 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7423 | 6278 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7423 | 6278 | 39 | 39 | 0.53% | 0.62% |  |
| D | 7423 | 6278 | 13 | 13 | 0.18% | 0.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9850 | 54.26 | 834 | 819 | 166.5 |
| A | 0 | 226 | 7260 | 38.7 | 834 | 819 | 166.5 |
| A | 3 | 137 | 7102 | 37.75 | 834 | 819 | 166.5 |
| B | 0 | 190 | 24644 | 151.68 | 828 | 809 | 157.1 |
| B | 0 | 189 | 19029 | 115.94 | 828 | 809 | 157.1 |
| B | 12 | 111 | 18717 | 113.96 | 828 | 809 | 157.1 |
| C | 10 | 9 | 338018 | 1850.32 | 785 | 793 | 182.3 |
| C | 14 | 238 | 127600 | 695.78 | 785 | 793 | 182.3 |
| C | 7 | 247 | 7357 | 36.02 | 785 | 793 | 182.3 |
| D | 1 | 52 | 181877 | 947.93 | 801 | 782 | 191.0 |
| D | 2 | 234 | 26427 | 134.24 | 801 | 782 | 191.0 |
| D | 7 | 238 | 12871 | 63.28 | 801 | 782 | 191.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

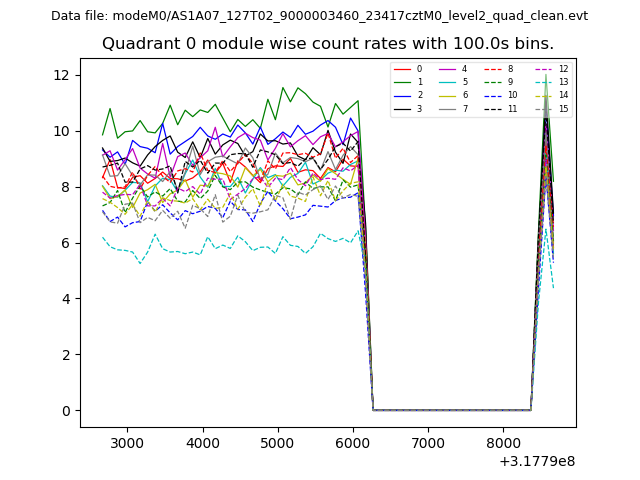

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

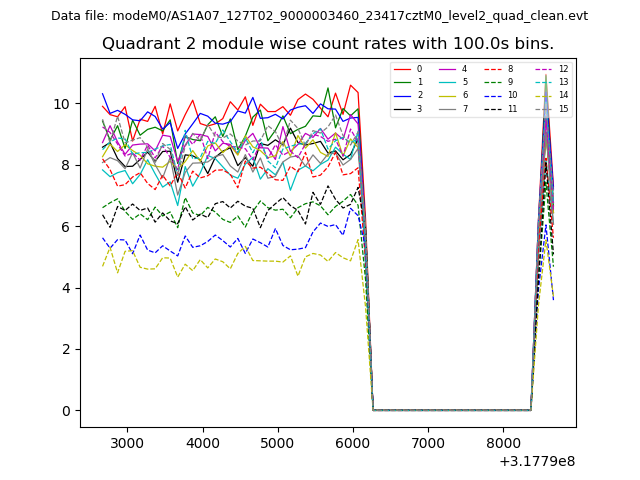

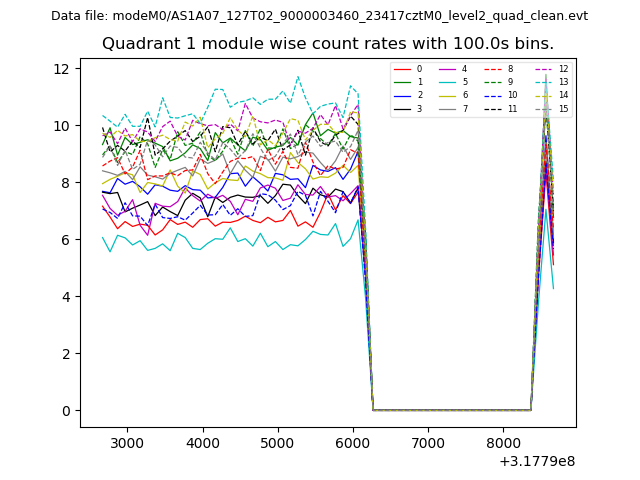

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

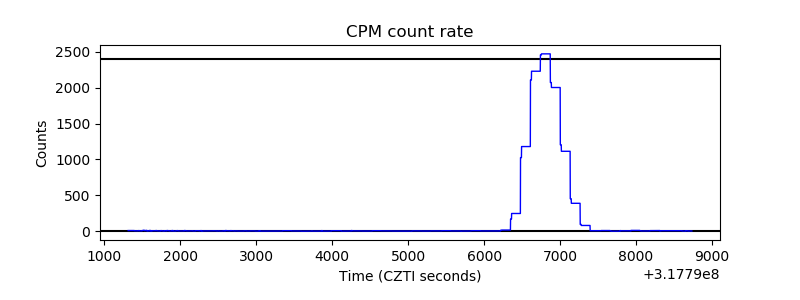

| _CPM_Rate |  |

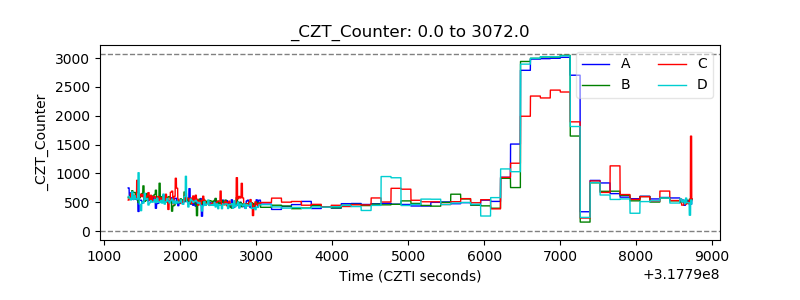

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

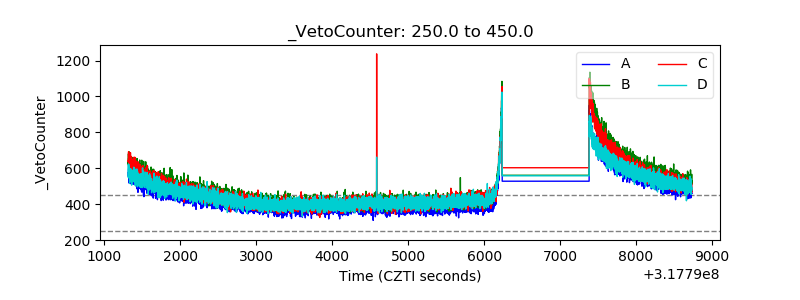

| Veto Counter |  |
