| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_127T02_9000003460_23419cztM0_level2.evt | modeM0/AS1A07_127T02_9000003460_23419cztM0_level2_quad_clean.evt |
| Size (bytes) | 474,361,920 | 108,328,320 |
| Size | 452.4 MB | 103.3 MB |
| Events in quadrant A | 3,493,876 | 736,243 |
| Events in quadrant B | 3,590,689 | 745,710 |
| Events in quadrant C | 3,451,824 | 684,705 |
| Events in quadrant D | 3,406,913 | 679,433 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14369 | 2 |
| B | 0 | 14632 | 2 |
| C | 0 | 14214 | 2 |
| D | 0 | 14014 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6223 | 85 | 1.365901% |
| B | 6223 | 107 | 1.719428% |
| C | 6223 | 125 | 2.008677% |
| D | 6223 | 58 | 0.932026% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7553 | 6223 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7553 | 6223 | 11 | 11 | 0.15% | 0.18% |  |
| C | 7553 | 6223 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7553 | 6223 | 0 | 0 | 0.00% | 0.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9987 | 50.57 | 907 | 893 | 179.8 |
| A | 0 | 226 | 8062 | 39.86 | 907 | 893 | 179.8 |
| A | 3 | 137 | 7088 | 34.45 | 907 | 893 | 179.8 |
| B | 0 | 189 | 50602 | 296.48 | 894 | 874 | 167.7 |
| B | 0 | 190 | 24191 | 139.02 | 894 | 874 | 167.7 |
| B | 12 | 111 | 19111 | 108.73 | 894 | 874 | 167.7 |
| C | 14 | 238 | 138224 | 709.53 | 837 | 844 | 193.6 |
| C | 10 | 9 | 48719 | 247.26 | 837 | 844 | 193.6 |
| C | 13 | 61 | 5889 | 26.06 | 837 | 844 | 193.6 |
| D | 1 | 52 | 95650 | 464.37 | 859 | 837 | 204.2 |
| D | 2 | 234 | 27565 | 130.91 | 859 | 837 | 204.2 |
| D | 9 | 35 | 24573 | 116.25 | 859 | 837 | 204.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

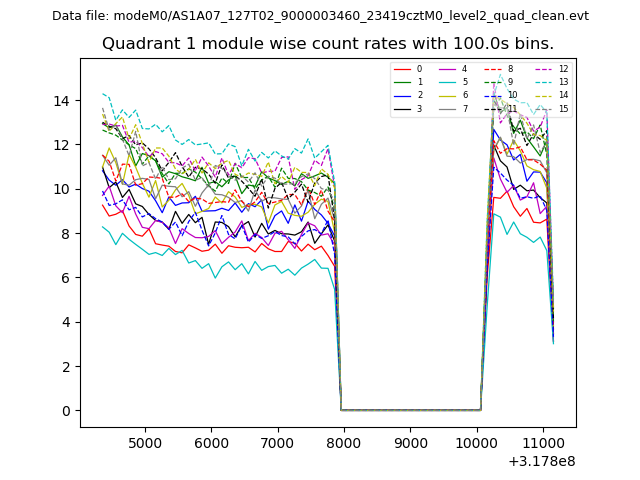

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

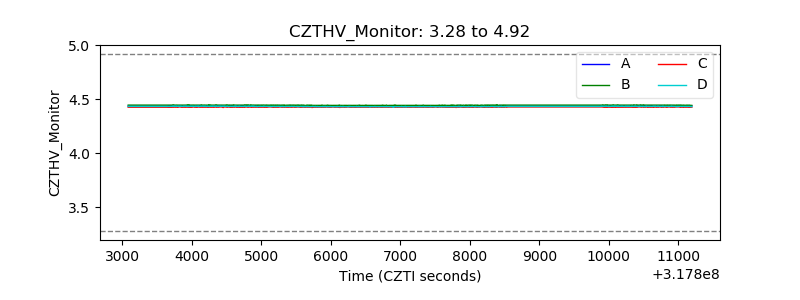

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

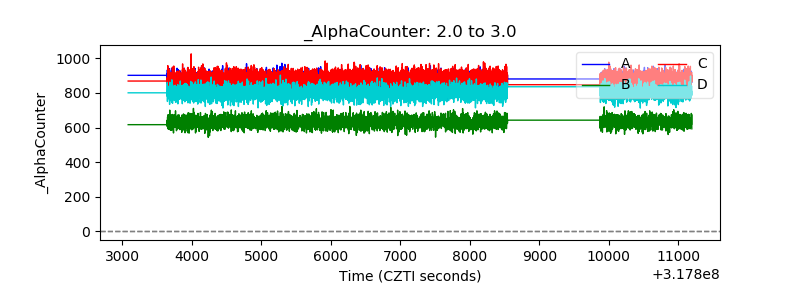

| Alpha Counter |  |

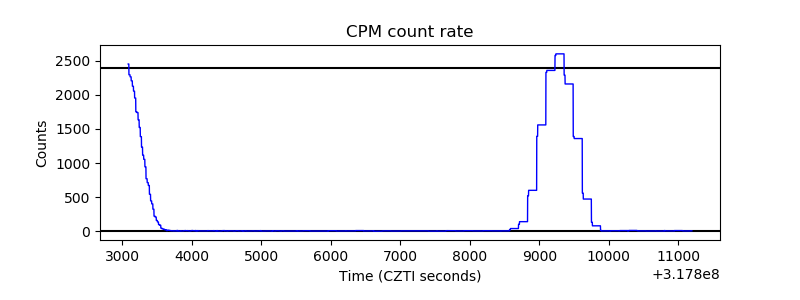

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

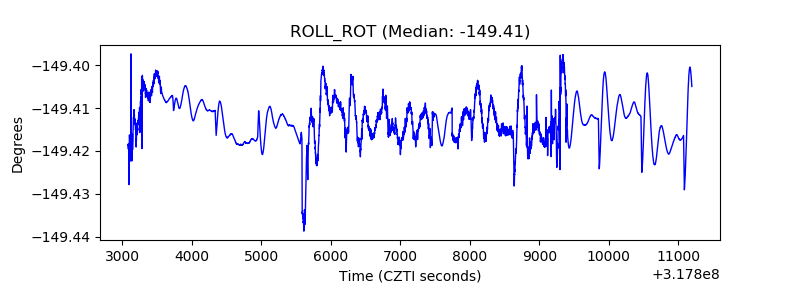

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
