| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_138T02_9000003464_23424cztM0_level2.evt | modeM0/AS1A07_138T02_9000003464_23424cztM0_level2_quad_clean.evt |
| Size (bytes) | 293,852,160 | 51,189,120 |
| Size | 280.2 MB | 48.8 MB |
| Events in quadrant A | 1,985,375 | 320,788 |
| Events in quadrant B | 2,067,465 | 326,184 |
| Events in quadrant C | 2,106,090 | 310,332 |
| Events in quadrant D | 2,463,390 | 306,424 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 84 | 0 |
| B | 0 | 84 | 0 |
| C | 0 | 84 | 0 |
| D | 0 | 84 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8411 | 1 |
| B | 0 | 8645 | 1 |
| C | 0 | 8743 | 1 |
| D | 0 | 10021 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4053 | 53 | 1.307673% |
| B | 4053 | 65 | 1.603750% |
| C | 4053 | 110 | 2.714039% |
| D | 4053 | 217 | 5.354059% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4348 | 4055 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4348 | 4053 | 0 | 0 | 0.00% | 0.00% |  |
| C | 4348 | 4054 | 1 | 1 | 0.02% | 0.02% |  |
| D | 4348 | 4054 | 69 | 69 | 1.59% | 1.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 6050 | 53.38 | 514 | 503 | 103.9 |
| A | 3 | 137 | 4588 | 39.31 | 514 | 503 | 103.9 |
| A | 0 | 226 | 4489 | 38.36 | 514 | 503 | 103.9 |
| B | 0 | 189 | 31249 | 309.82 | 511 | 498 | 99.3 |
| B | 3 | 209 | 15602 | 152.17 | 511 | 498 | 99.3 |
| B | 12 | 111 | 11756 | 113.43 | 511 | 498 | 99.3 |
| C | 10 | 9 | 110596 | 954.23 | 486 | 486 | 115.4 |
| C | 14 | 238 | 75980 | 654.24 | 486 | 486 | 115.4 |
| C | 7 | 247 | 21695 | 183.8 | 486 | 486 | 115.4 |
| D | 1 | 52 | 402134 | 3339.42 | 489 | 474 | 120.3 |
| D | 12 | 233 | 127154 | 1053.22 | 489 | 474 | 120.3 |
| D | 13 | 104 | 25873 | 211.17 | 489 | 474 | 120.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

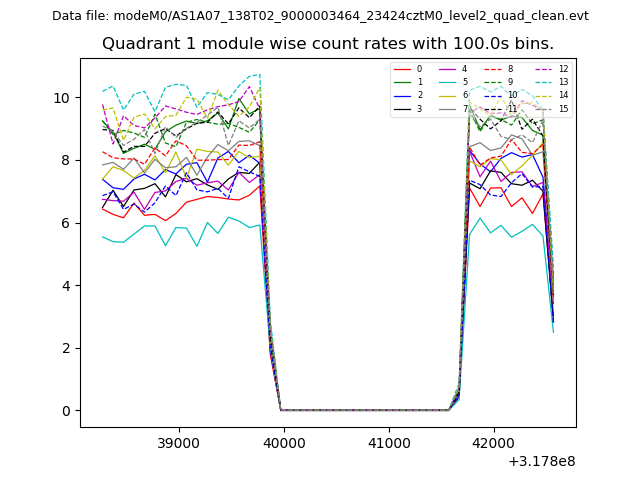

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

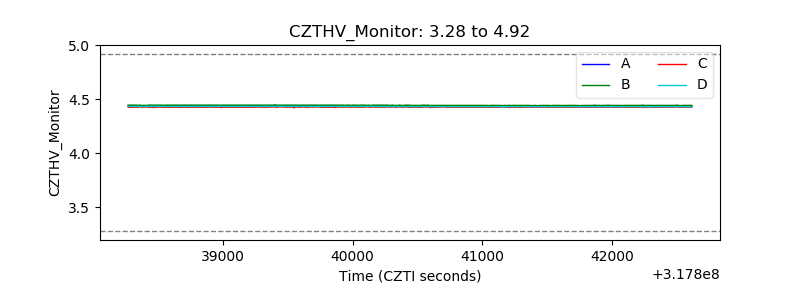

| CZT HV Monitor |  |

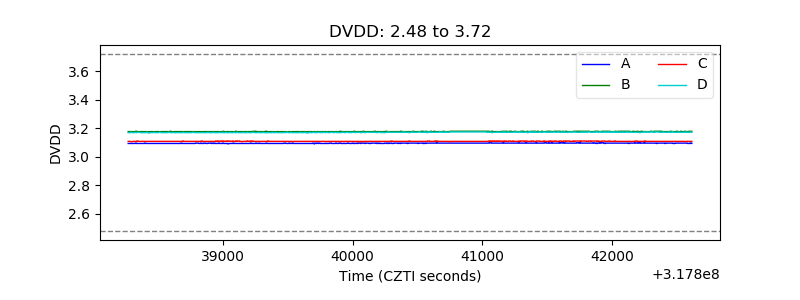

| D_VDD |  |

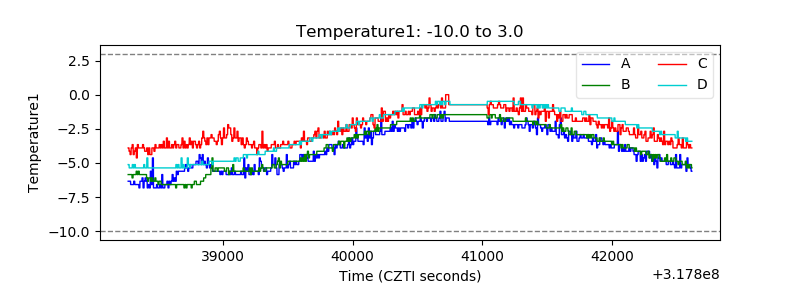

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

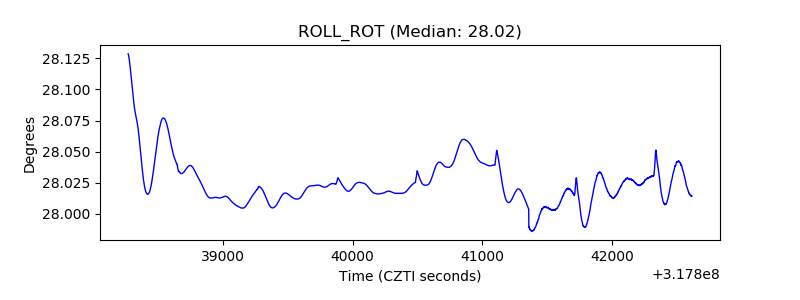

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
