| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_100T02_9000003470_23466cztM0_level2.evt | modeM0/AS1A07_100T02_9000003470_23466cztM0_level2_quad_clean.evt |
| Size (bytes) | 339,900,480 | 73,264,320 |
| Size | 324.2 MB | 69.9 MB |
| Events in quadrant A | 2,337,102 | 476,828 |
| Events in quadrant B | 2,398,250 | 479,806 |
| Events in quadrant C | 2,390,266 | 461,652 |
| Events in quadrant D | 2,832,496 | 454,680 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10032 | 0 |
| B | 0 | 10130 | 0 |
| C | 0 | 10093 | 0 |
| D | 0 | 11516 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 102 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4928 | 82 | 1.663961% |
| B | 4928 | 94 | 1.907468% |
| C | 4928 | 99 | 2.008929% |
| D | 4928 | 130 | 2.637987% |

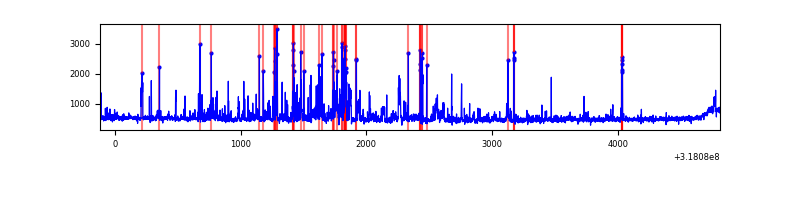

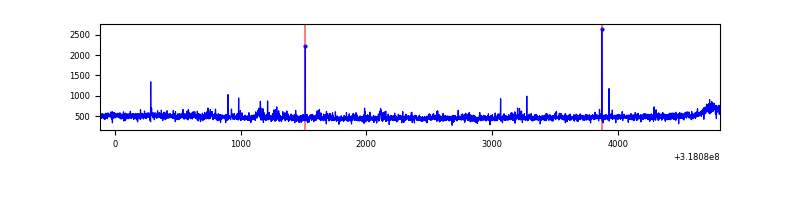

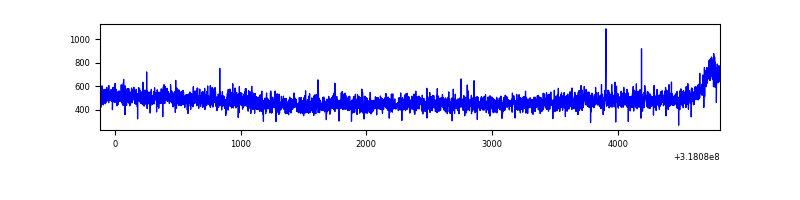

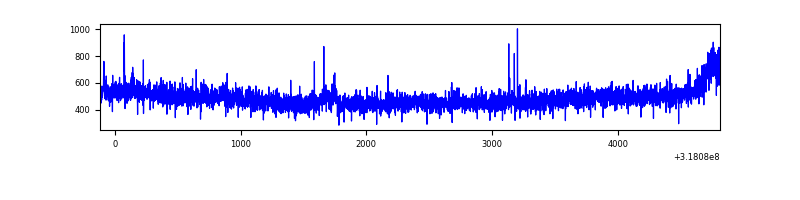

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4927 | 4927 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4927 | 4927 | 2 | 2 | 0.04% | 0.04% |  |
| C | 4927 | 4927 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4927 | 4927 | 51 | 51 | 1.04% | 1.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9452 | 72.68 | 604 | 591 | 121.9 |
| A | 0 | 226 | 5283 | 38.48 | 604 | 591 | 121.9 |
| A | 3 | 137 | 4855 | 34.97 | 604 | 591 | 121.9 |
| B | 0 | 228 | 15330 | 130.83 | 599 | 585 | 112.7 |
| B | 12 | 111 | 12677 | 107.29 | 599 | 585 | 112.7 |
| B | 3 | 209 | 12533 | 106.01 | 599 | 585 | 112.7 |
| C | 14 | 238 | 92484 | 684.02 | 579 | 582 | 134.4 |
| C | 10 | 91 | 11133 | 78.53 | 579 | 582 | 134.4 |
| C | 7 | 247 | 10803 | 76.07 | 579 | 582 | 134.4 |
| D | 7 | 238 | 179131 | 1254.62 | 588 | 572 | 142.3 |
| D | 1 | 52 | 164919 | 1154.76 | 588 | 572 | 142.3 |
| D | 12 | 233 | 153932 | 1077.56 | 588 | 572 | 142.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

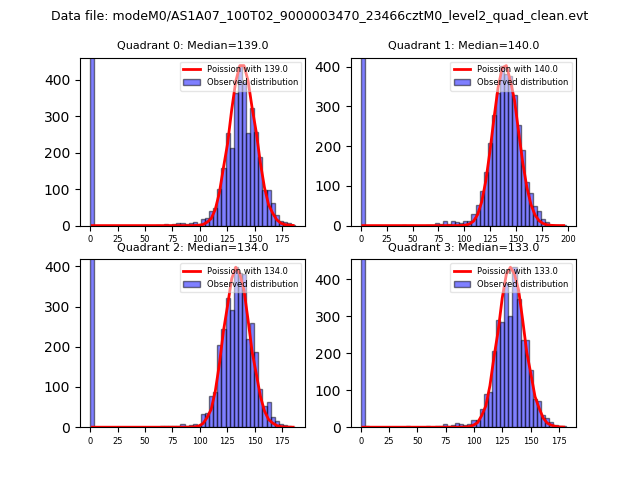

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

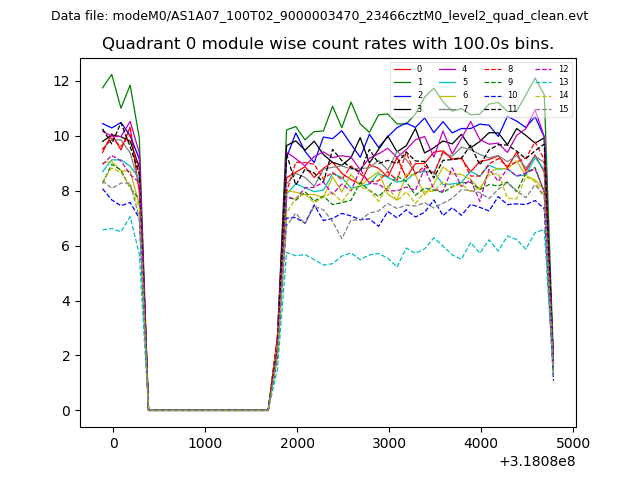

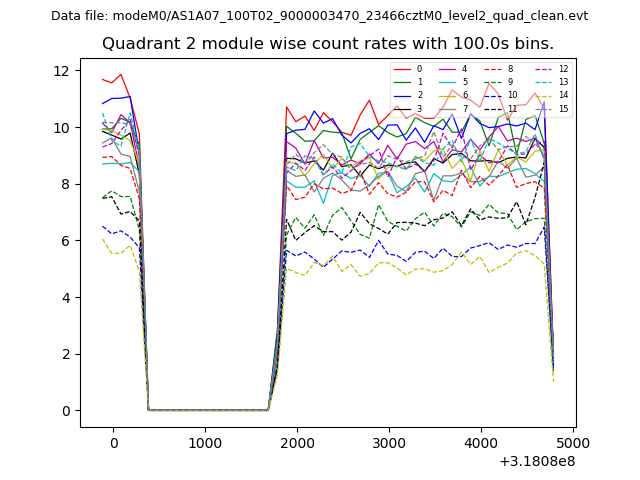

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

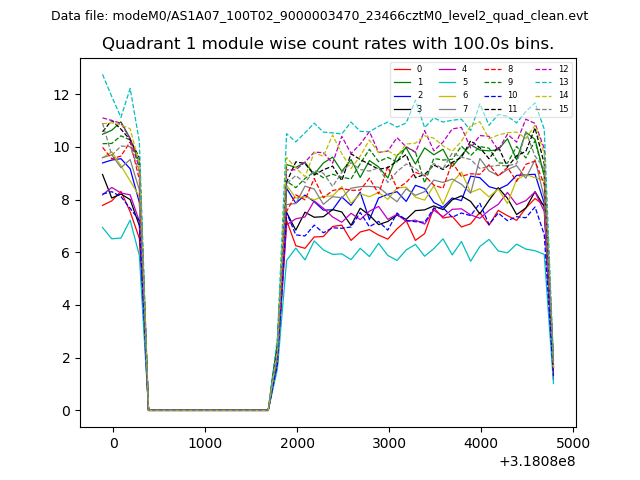

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

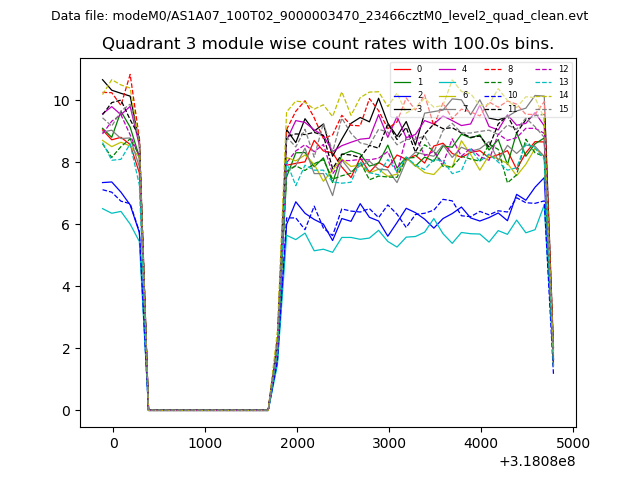

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

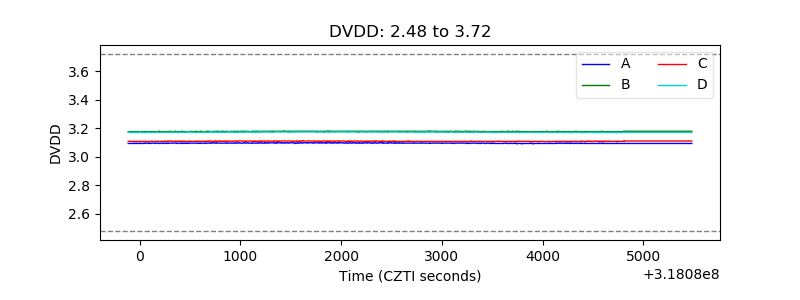

| D_VDD |  |

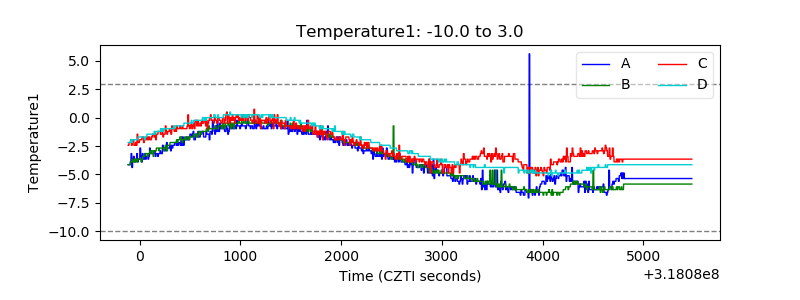

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

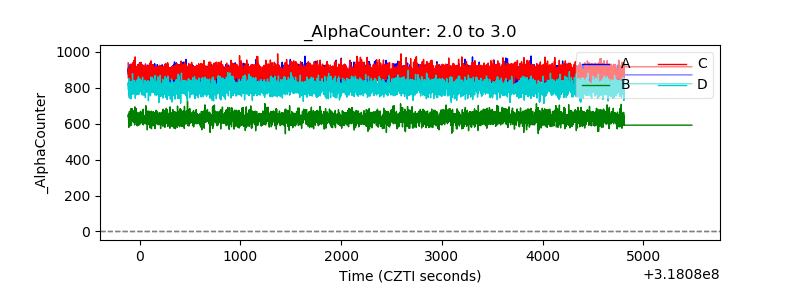

| Alpha Counter |  |

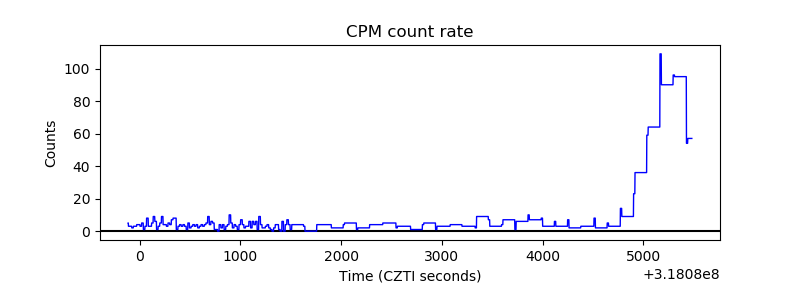

| _CPM_Rate |  |

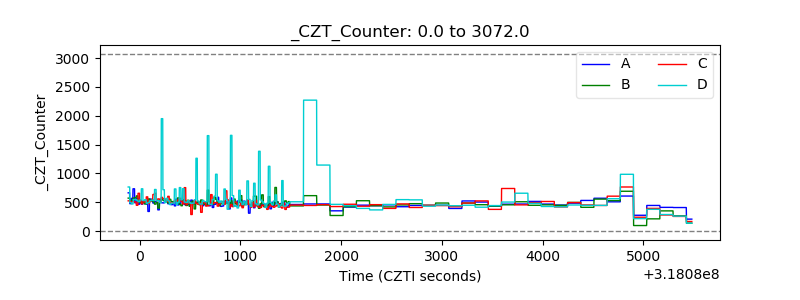

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

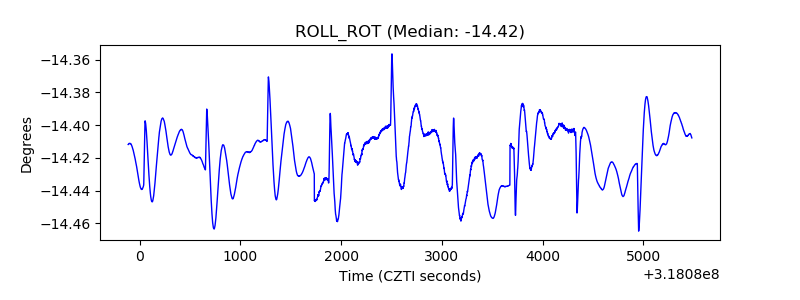

| _ROLL_ROT |  |

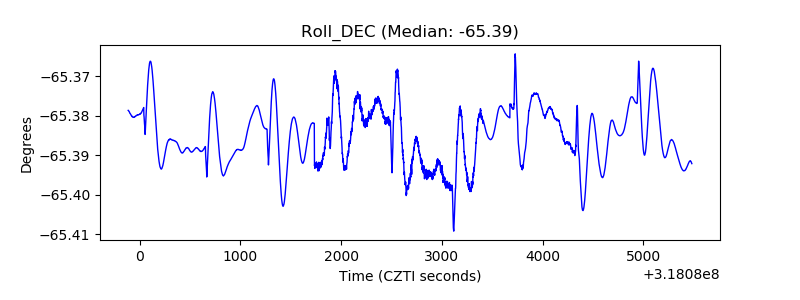

| _Roll_DEC |  |

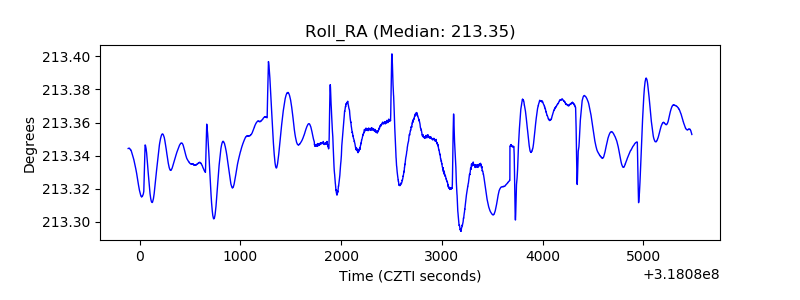

| _Roll_RA |  |

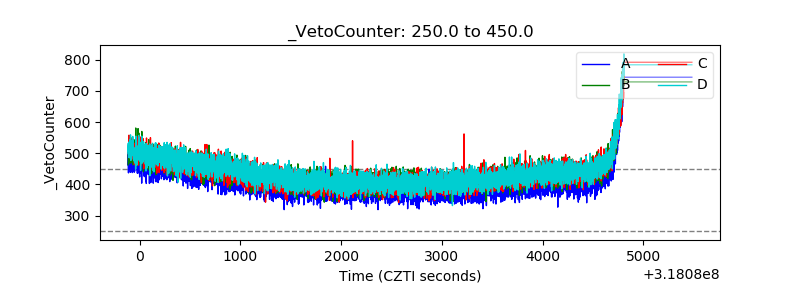

| Veto Counter |  |
