| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_127T01_9000003468_23437cztM0_level2.evt | modeM0/AS1A07_127T01_9000003468_23437cztM0_level2_quad_clean.evt |
| Size (bytes) | 664,349,760 | 66,556,800 |
| Size | 633.6 MB | 63.5 MB |
| Events in quadrant A | 3,292,304 | 408,227 |
| Events in quadrant B | 3,442,571 | 409,294 |
| Events in quadrant C | 8,581,815 | 344,162 |
| Events in quadrant D | 4,360,022 | 396,169 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13622 | 1 |
| B | 0 | 14114 | 1 |
| C | 0 | 30051 | 1 |
| D | 0 | 17237 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6545 | 74 | 1.130634% |
| B | 6546 | 89 | 1.359609% |
| C | 6546 | 1811 | 27.665750% |
| D | 6545 | 279 | 4.262796% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7415 | 6545 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7416 | 6546 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7416 | 6546 | 1237 | 1237 | 16.68% | 18.90% |  |
| D | 7415 | 6545 | 170 | 170 | 2.29% | 2.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10869 | 58.24 | 851 | 834 | 172.3 |
| A | 15 | 174 | 10440 | 55.75 | 851 | 834 | 172.3 |
| A | 3 | 137 | 7402 | 38.12 | 851 | 834 | 172.3 |
| B | 0 | 189 | 78067 | 475.86 | 840 | 818 | 162.3 |
| B | 0 | 190 | 48802 | 295.58 | 840 | 818 | 162.3 |
| B | 12 | 111 | 19318 | 113.96 | 840 | 818 | 162.3 |
| C | 10 | 9 | 5451967 | 30152.11 | 769 | 775 | 180.8 |
| C | 14 | 238 | 120985 | 664.92 | 769 | 775 | 180.8 |
| C | 7 | 247 | 9315 | 47.24 | 769 | 775 | 180.8 |
| D | 1 | 52 | 797123 | 3974.99 | 821 | 801 | 200.3 |
| D | 12 | 233 | 292389 | 1455.52 | 821 | 801 | 200.3 |
| D | 7 | 238 | 98667 | 488.52 | 821 | 801 | 200.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

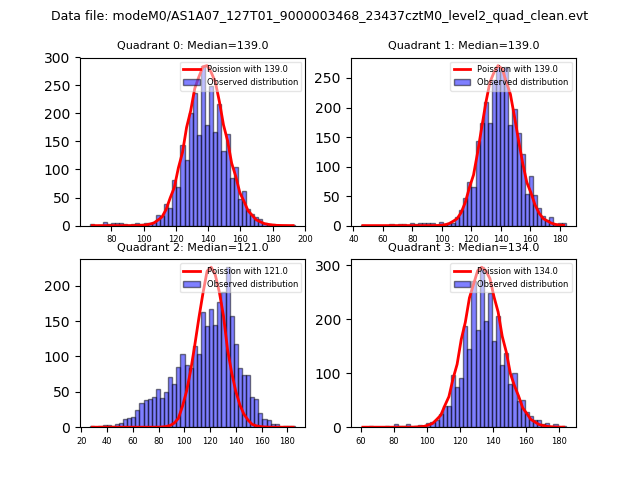

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

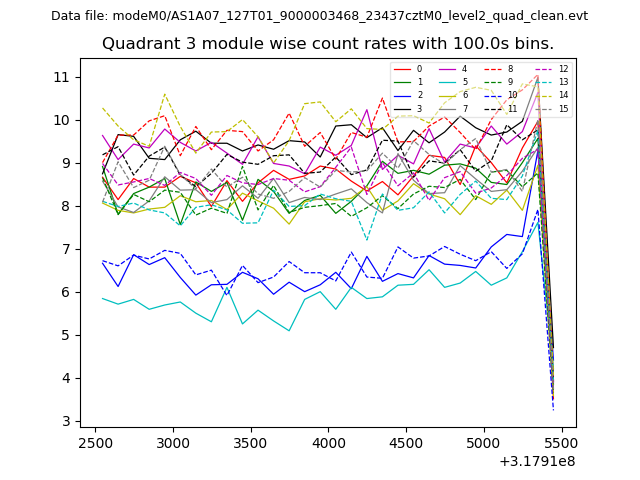

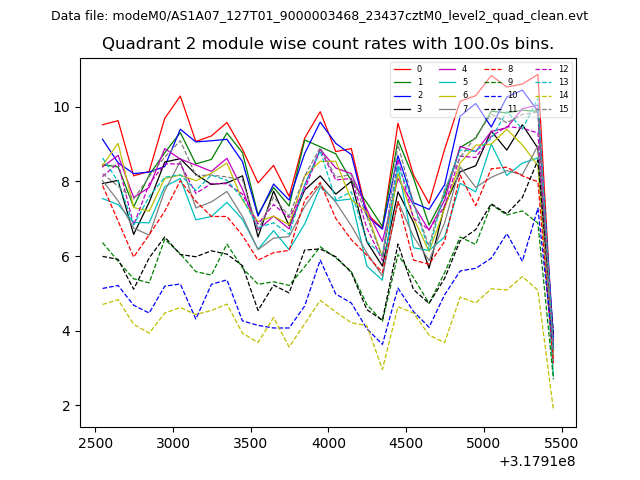

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

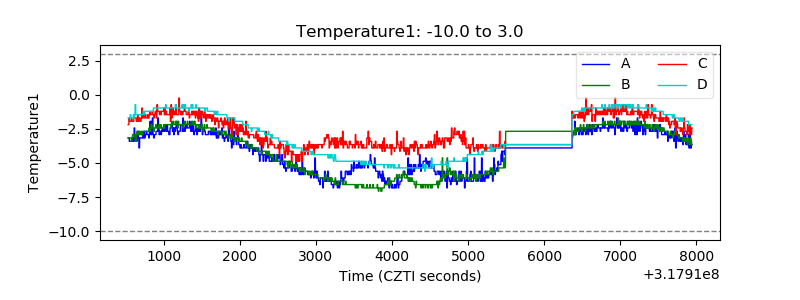

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

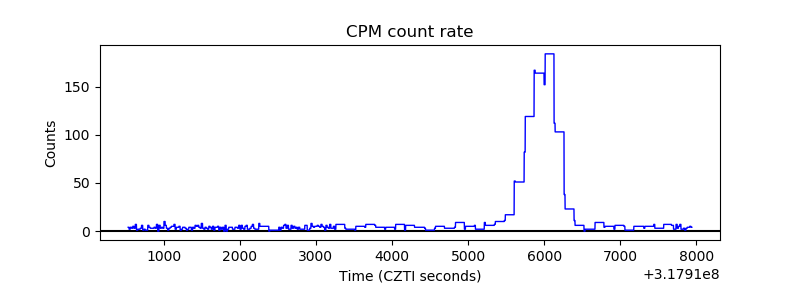

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

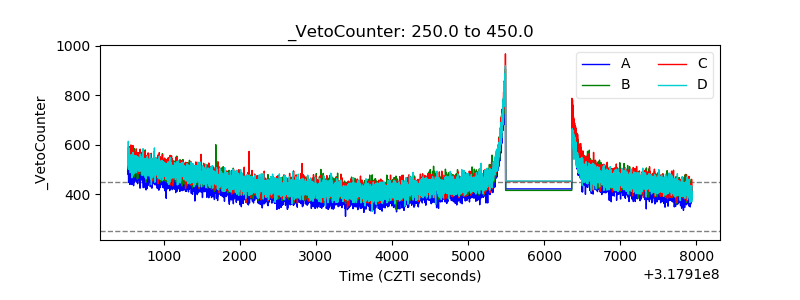

| Veto Counter |  |
