| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_127T01_9000003468_23438cztM0_level2.evt | modeM0/AS1A07_127T01_9000003468_23438cztM0_level2_quad_clean.evt |
| Size (bytes) | 761,820,480 | 75,121,920 |
| Size | 726.5 MB | 71.6 MB |
| Events in quadrant A | 3,323,653 | 472,260 |
| Events in quadrant B | 3,474,065 | 477,545 |
| Events in quadrant C | 10,698,544 | 400,155 |
| Events in quadrant D | 5,120,675 | 454,875 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14050 | 1 |
| B | 0 | 14436 | 1 |
| C | 0 | 36476 | 1 |
| D | 0 | 19875 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6730 | 110 | 1.634473% |
| B | 6731 | 139 | 2.065072% |
| C | 6731 | 2947 | 43.782499% |
| D | 6731 | 462 | 6.863765% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7145 | 6730 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7146 | 6731 | 4 | 4 | 0.06% | 0.06% |  |
| C | 7146 | 6731 | 1991 | 1991 | 27.86% | 29.58% |  |
| D | 7145 | 6730 | 314 | 314 | 4.39% | 4.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 33726 | 190.5 | 854 | 836 | 172.7 |
| A | 13 | 254 | 11172 | 59.87 | 854 | 836 | 172.7 |
| A | 3 | 137 | 7585 | 39.09 | 854 | 836 | 172.7 |
| B | 0 | 190 | 77510 | 470.97 | 845 | 823 | 162.8 |
| B | 0 | 189 | 61893 | 375.06 | 845 | 823 | 162.8 |
| B | 12 | 111 | 19912 | 117.23 | 845 | 823 | 162.8 |
| C | 10 | 9 | 7676759 | 44294.84 | 741 | 745 | 173.3 |
| C | 14 | 238 | 113674 | 651.66 | 741 | 745 | 173.3 |
| C | 7 | 247 | 12667 | 68.8 | 741 | 745 | 173.3 |
| D | 1 | 52 | 1317629 | 6539.53 | 816 | 791 | 201.4 |
| D | 13 | 172 | 414136 | 2052.71 | 816 | 791 | 201.4 |
| D | 12 | 233 | 219813 | 1087.68 | 816 | 791 | 201.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

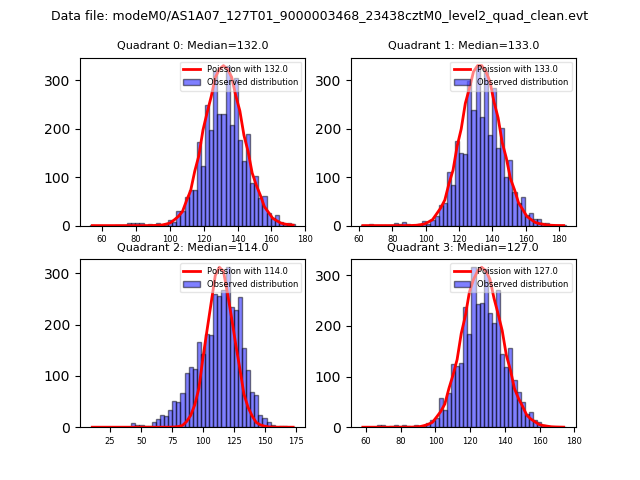

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

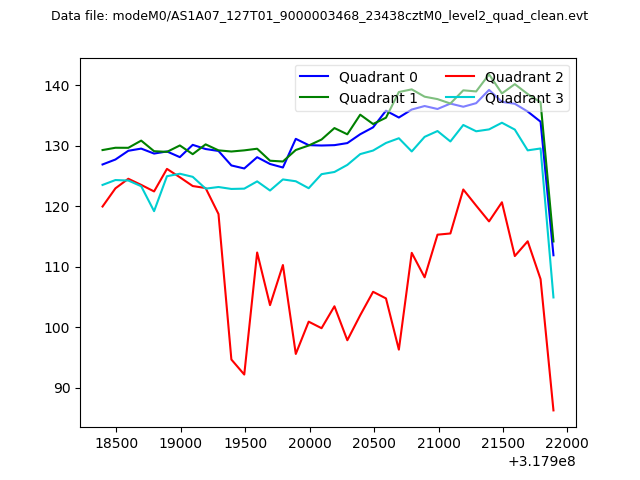

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

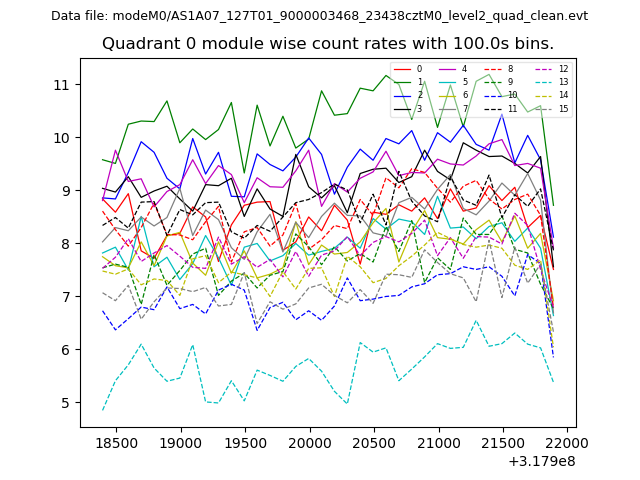

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

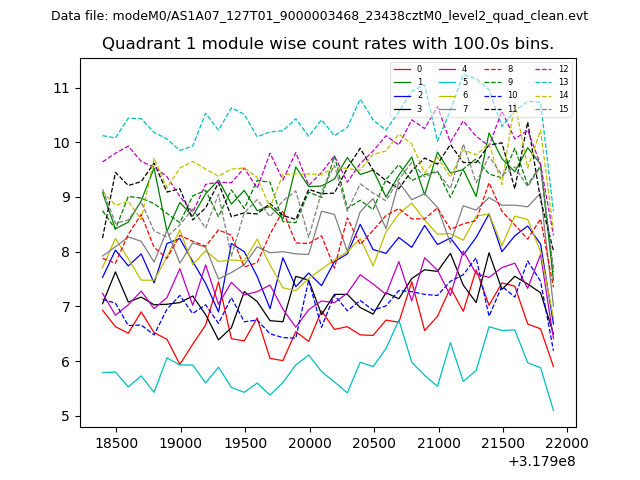

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

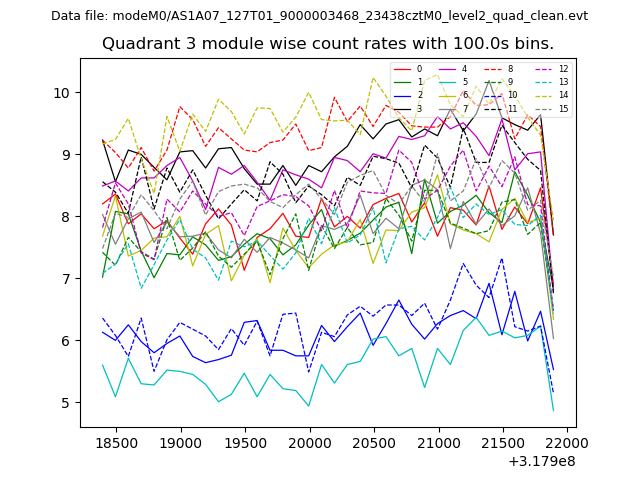

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

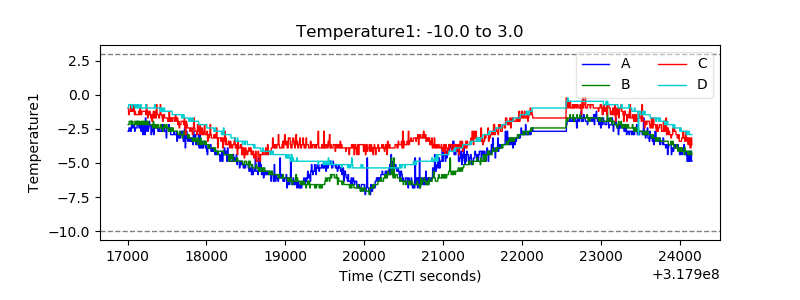

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

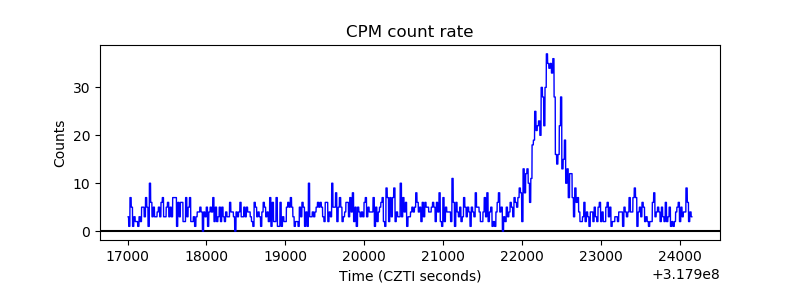

| _CPM_Rate |  |

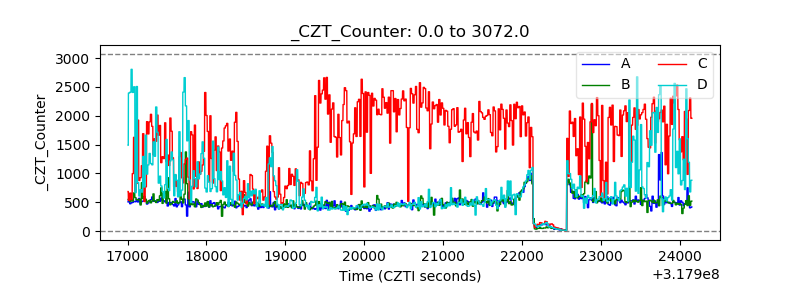

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
