| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_148T02_9000003474_23468cztM0_level2.evt | modeM0/AS1A07_148T02_9000003474_23468cztM0_level2_quad_clean.evt |
| Size (bytes) | 554,117,760 | 78,528,960 |
| Size | 528.4 MB | 74.9 MB |
| Events in quadrant A | 3,421,147 | 477,916 |
| Events in quadrant B | 3,541,879 | 482,658 |
| Events in quadrant C | 3,513,799 | 470,554 |
| Events in quadrant D | 5,821,983 | 451,500 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14708 | 1 |
| B | 0 | 14931 | 1 |
| C | 0 | 14785 | 1 |
| D | 0 | 22174 | 8 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7104 | 130 | 1.829955% |
| B | 7104 | 160 | 2.252252% |
| C | 7104 | 149 | 2.097410% |
| D | 7103 | 696 | 9.798677% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7289 | 7104 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7289 | 7104 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7289 | 7105 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7287 | 7103 | 516 | 516 | 7.08% | 7.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12806 | 65.97 | 884 | 863 | 181.0 |
| A | 3 | 137 | 7746 | 38.02 | 884 | 863 | 181.0 |
| A | 0 | 226 | 7635 | 37.41 | 884 | 863 | 181.0 |
| B | 0 | 229 | 27858 | 160.51 | 879 | 857 | 168.2 |
| B | 15 | 33 | 24309 | 139.41 | 879 | 857 | 168.2 |
| B | 0 | 228 | 21466 | 122.51 | 879 | 857 | 168.2 |
| C | 14 | 238 | 133206 | 656.69 | 852 | 857 | 201.5 |
| C | 7 | 247 | 16547 | 77.85 | 852 | 857 | 201.5 |
| C | 3 | 233 | 14177 | 66.09 | 852 | 857 | 201.5 |
| D | 7 | 238 | 2352495 | 11616.16 | 822 | 799 | 202.5 |
| D | 1 | 52 | 142848 | 701.65 | 822 | 799 | 202.5 |
| D | 12 | 233 | 90924 | 445.17 | 822 | 799 | 202.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

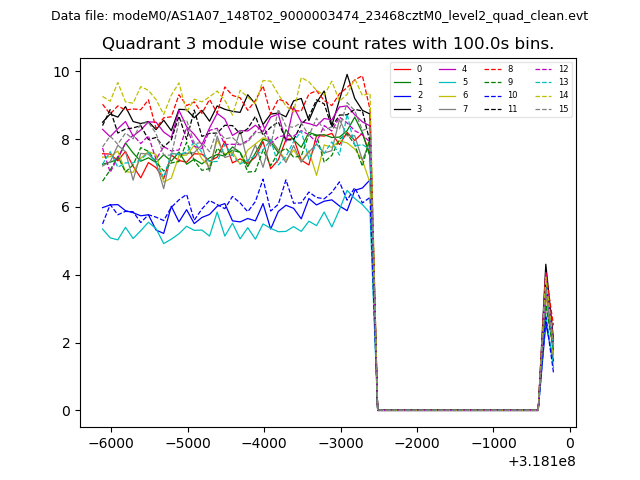

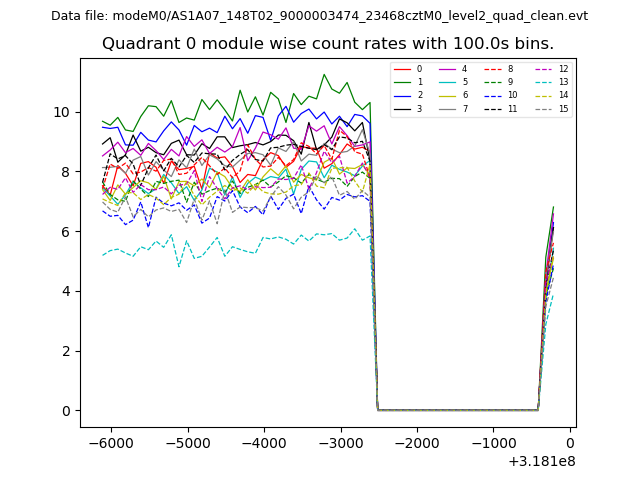

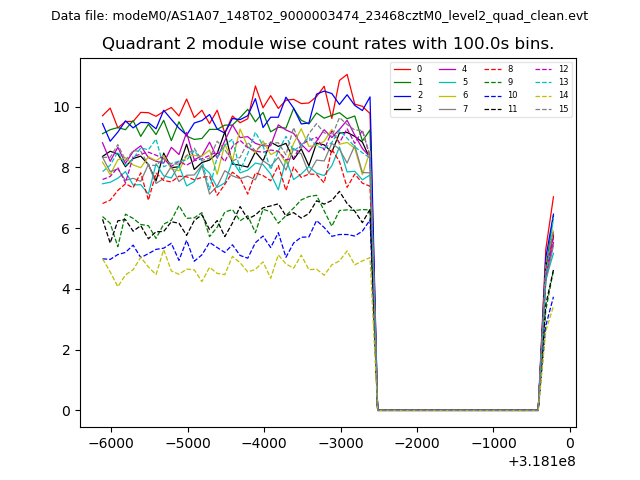

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

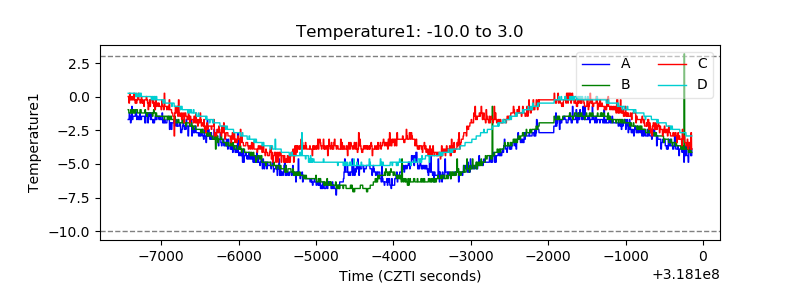

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

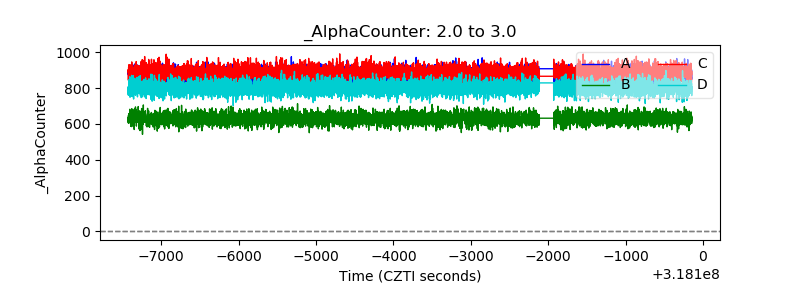

| Alpha Counter |  |

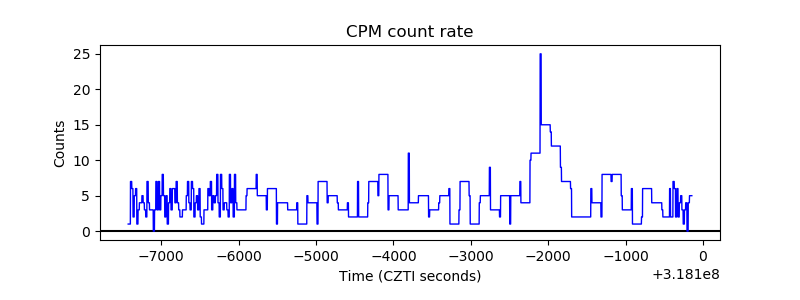

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

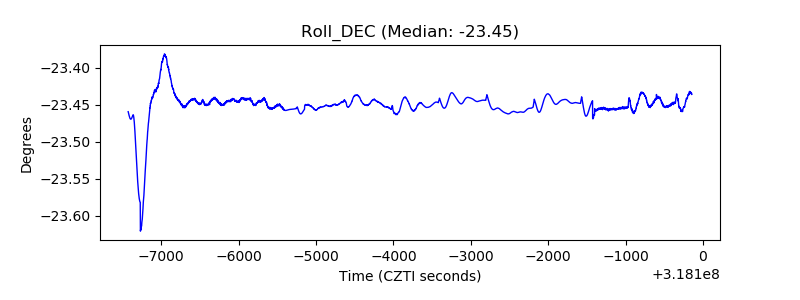

| _Roll_DEC |  |
| _Roll_RA |  |

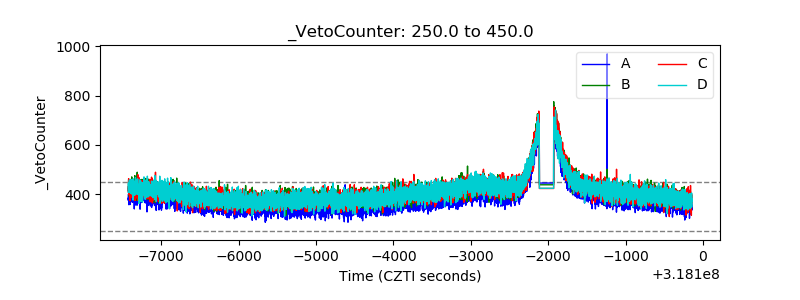

| Veto Counter |  |
