| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_148T02_9000003474_23473cztM0_level2.evt | modeM0/AS1A07_148T02_9000003474_23473cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,534,858,560 | 213,163,200 |
| Size | 1.4 GB | 203.3 MB |
| Events in quadrant A | 8,157,748 | 1,379,931 |
| Events in quadrant B | 9,218,096 | 1,392,758 |
| Events in quadrant C | 8,486,277 | 1,358,469 |
| Events in quadrant D | 19,446,705 | 1,123,971 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35656 | 3 |
| B | 0 | 38628 | 3 |
| C | 0 | 36174 | 3 |
| D | 0 | 69795 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 354 | 0 |
| B | 0 | 354 | 0 |
| C | 0 | 354 | 0 |
| D | 0 | 354 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 17402 | 147 | 0.844730% |
| B | 17403 | 398 | 2.286962% |
| C | 17403 | 241 | 1.384819% |
| D | 17403 | 3893 | 22.369706% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 18912 | 17404 | 0 | 0 | 0.00% | 0.00% |  |
| B | 18913 | 17404 | 144 | 144 | 0.76% | 0.83% |  |
| C | 18913 | 17404 | 2 | 2 | 0.01% | 0.01% |  |
| D | 18913 | 17404 | 3428 | 3428 | 18.13% | 19.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 30695 | 67.42 | 2110 | 2063 | 424.7 |
| A | 3 | 137 | 18503 | 38.71 | 2110 | 2063 | 424.7 |
| A | 0 | 226 | 18149 | 37.88 | 2110 | 2063 | 424.7 |
| B | 0 | 183 | 421084 | 1043.38 | 2093 | 2039 | 401.6 |
| B | 0 | 189 | 367426 | 909.78 | 2093 | 2039 | 401.6 |
| B | 0 | 230 | 84936 | 206.41 | 2093 | 2039 | 401.6 |
| C | 14 | 238 | 319044 | 662.93 | 2036 | 2050 | 478.2 |
| C | 7 | 247 | 137062 | 282.35 | 2036 | 2050 | 478.2 |
| C | 10 | 9 | 27340 | 52.89 | 2036 | 2050 | 478.2 |
| D | 7 | 238 | 11305361 | 24864.33 | 1865 | 1809 | 454.6 |
| D | 1 | 52 | 872926 | 1916.19 | 1865 | 1809 | 454.6 |
| D | 13 | 104 | 93202 | 201.04 | 1865 | 1809 | 454.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

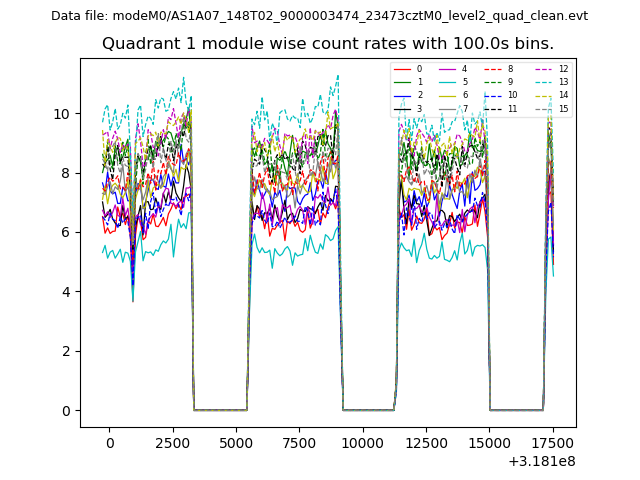

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

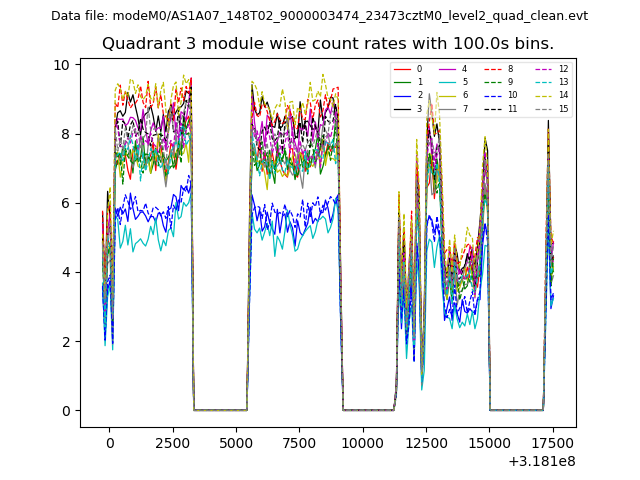

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

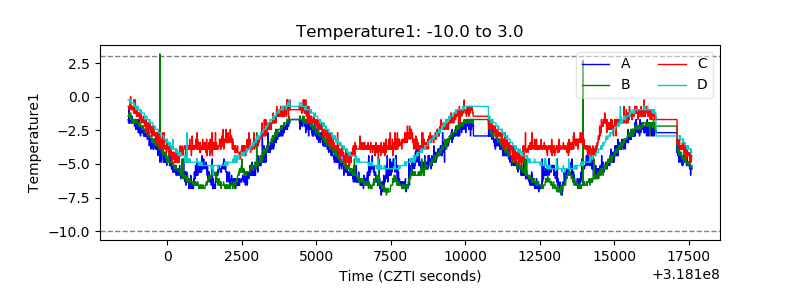

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

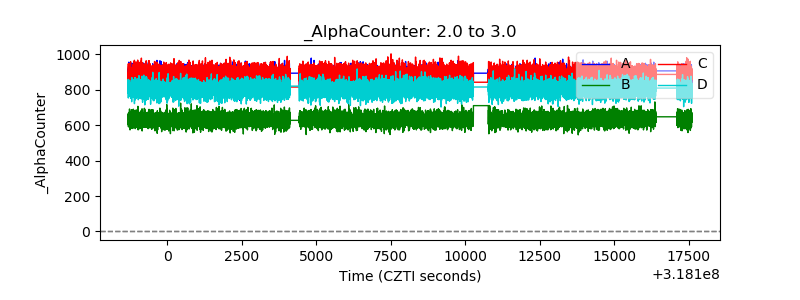

| Alpha Counter |  |
| _CPM_Rate |  |

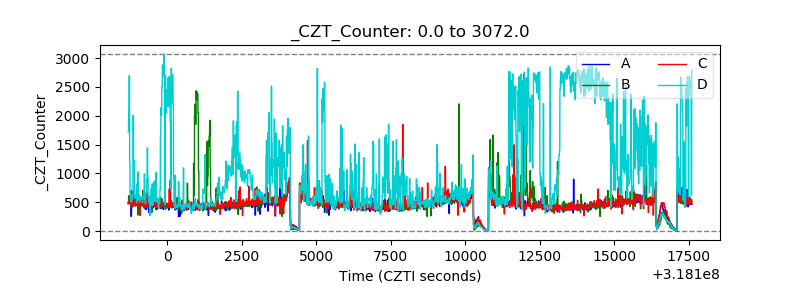

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

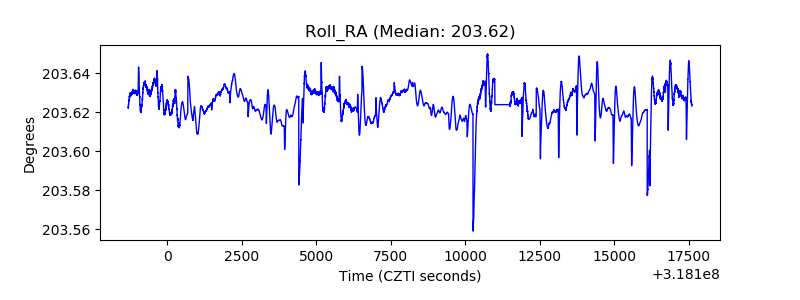

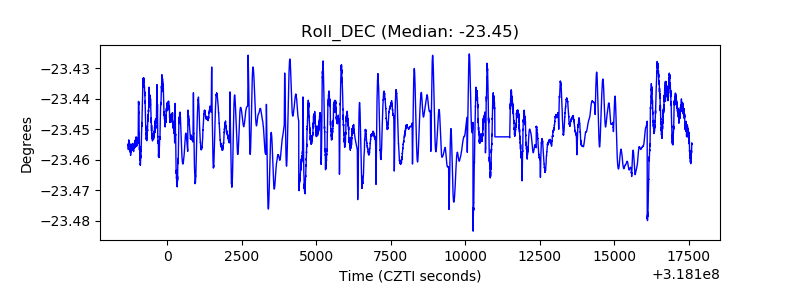

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
