| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_148T02_9000003474_23481cztM0_level2.evt | modeM0/AS1A07_148T02_9000003474_23481cztM0_level2_quad_clean.evt |
| Size (bytes) | 532,837,440 | 78,940,800 |
| Size | 508.2 MB | 75.3 MB |
| Events in quadrant A | 3,710,041 | 474,522 |
| Events in quadrant B | 3,952,612 | 478,546 |
| Events in quadrant C | 4,000,592 | 462,502 |
| Events in quadrant D | 3,973,258 | 461,312 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15496 | 2 |
| B | 0 | 16212 | 2 |
| C | 0 | 16191 | 3 |
| D | 0 | 16474 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7365 | 166 | 2.253904% |
| B | 7365 | 196 | 2.661236% |
| C | 7364 | 279 | 3.788702% |
| D | 7364 | 136 | 1.846822% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7925 | 7365 | 4 | 4 | 0.05% | 0.05% |  |
| B | 7925 | 7365 | 8 | 8 | 0.10% | 0.11% |  |
| C | 7924 | 7364 | 41 | 41 | 0.52% | 0.56% |  |
| D | 7924 | 7364 | 31 | 31 | 0.39% | 0.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 38487 | 195.97 | 949 | 925 | 191.7 |
| A | 13 | 254 | 11900 | 57.26 | 949 | 925 | 191.7 |
| A | 12 | 96 | 11377 | 54.53 | 949 | 925 | 191.7 |
| B | 0 | 189 | 251488 | 1372.11 | 936 | 909 | 182.6 |
| B | 12 | 111 | 21843 | 114.63 | 936 | 909 | 182.6 |
| B | 11 | 111 | 19522 | 101.92 | 936 | 909 | 182.6 |
| C | 2 | 16 | 193384 | 902.69 | 908 | 912 | 213.2 |
| C | 14 | 238 | 143896 | 670.59 | 908 | 912 | 213.2 |
| C | 7 | 247 | 71018 | 328.8 | 908 | 912 | 213.2 |
| D | 1 | 52 | 318459 | 1400.66 | 930 | 904 | 226.7 |
| D | 13 | 104 | 48132 | 208.31 | 930 | 904 | 226.7 |
| D | 2 | 234 | 29515 | 126.2 | 930 | 904 | 226.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

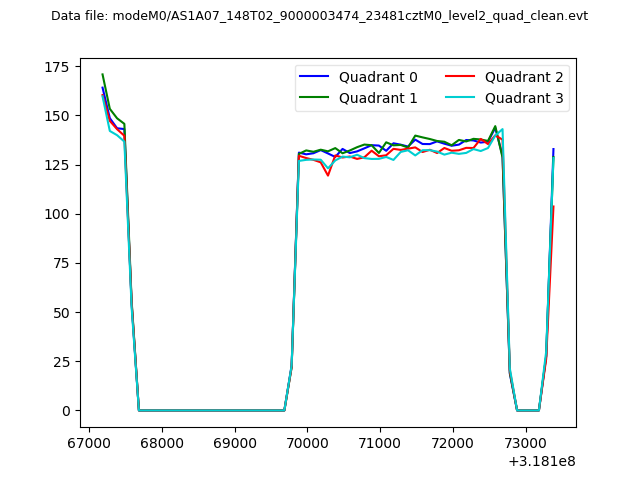

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

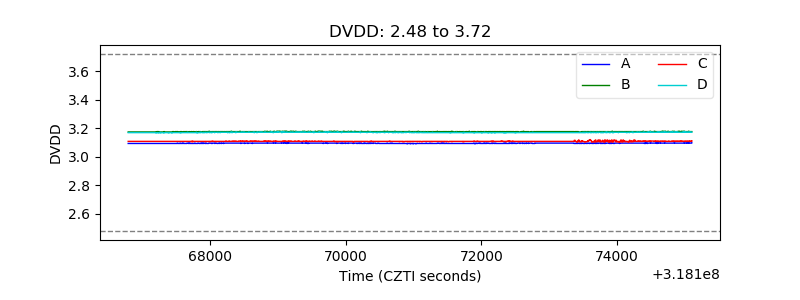

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

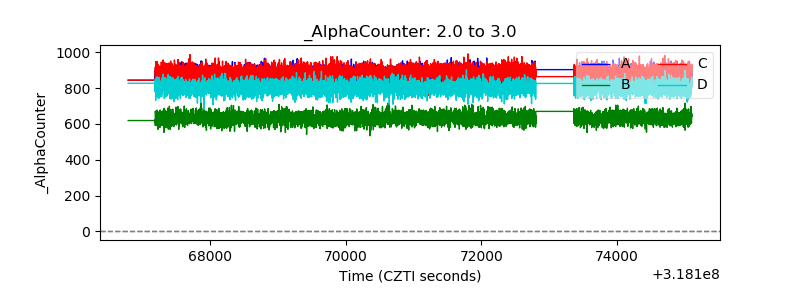

| Alpha Counter |  |

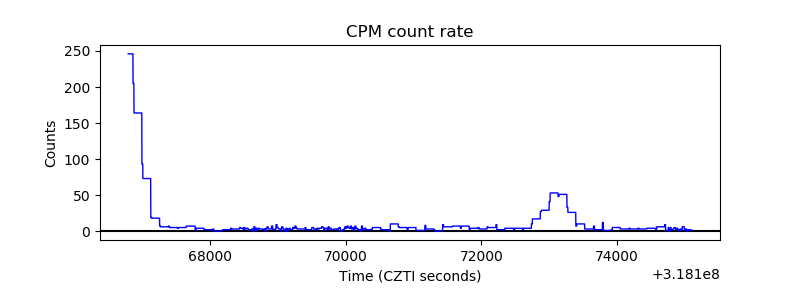

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

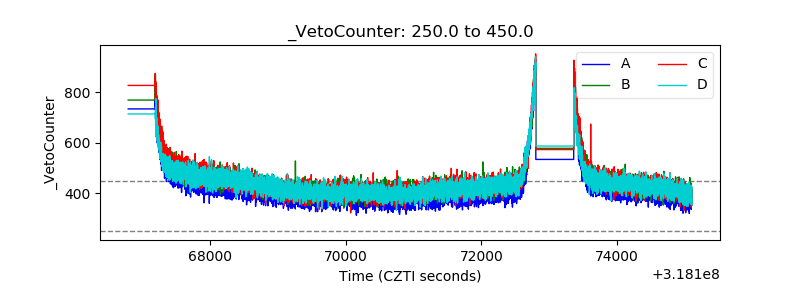

| Veto Counter |  |
