| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_100T02_9000003476_23491cztM0_level2.evt | modeM0/AS1A07_100T02_9000003476_23491cztM0_level2_quad_clean.evt |
| Size (bytes) | 436,204,800 | 102,432,960 |
| Size | 416.0 MB | 97.7 MB |
| Events in quadrant A | 2,896,745 | 677,124 |
| Events in quadrant B | 3,276,340 | 696,622 |
| Events in quadrant C | 3,276,282 | 675,502 |
| Events in quadrant D | 3,370,278 | 650,665 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12069 | 1 |
| B | 0 | 13333 | 1 |
| C | 0 | 13235 | 1 |
| D | 0 | 13487 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5759 | 5 | 0.086821% |
| B | 5760 | 62 | 1.076389% |
| C | 5760 | 62 | 1.076389% |
| D | 5760 | 98 | 1.701389% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

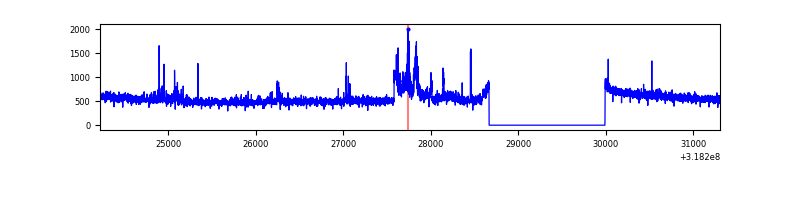

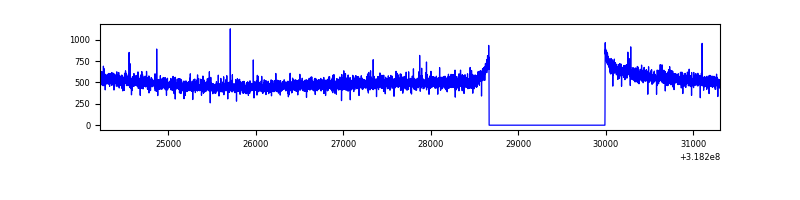

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7084 | 5760 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7085 | 5761 | 19 | 19 | 0.27% | 0.33% |  |
| C | 7085 | 5761 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7085 | 5761 | 75 | 75 | 1.06% | 1.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10109 | 63.0 | 751 | 737 | 148.8 |
| A | 0 | 226 | 6330 | 37.6 | 751 | 737 | 148.8 |
| A | 3 | 137 | 5694 | 33.32 | 751 | 737 | 148.8 |
| B | 0 | 229 | 176152 | 1277.45 | 753 | 737 | 137.3 |
| B | 0 | 189 | 82043 | 592.1 | 753 | 737 | 137.3 |
| B | 0 | 228 | 29871 | 212.17 | 753 | 737 | 137.3 |
| C | 8 | 208 | 181632 | 1057.35 | 746 | 754 | 171.1 |
| C | 14 | 238 | 120677 | 701.03 | 746 | 754 | 171.1 |
| C | 7 | 247 | 48752 | 280.58 | 746 | 754 | 171.1 |
| D | 1 | 52 | 253007 | 1414.36 | 744 | 724 | 178.4 |
| D | 13 | 104 | 114300 | 636.73 | 744 | 724 | 178.4 |
| D | 12 | 233 | 86298 | 479.75 | 744 | 724 | 178.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

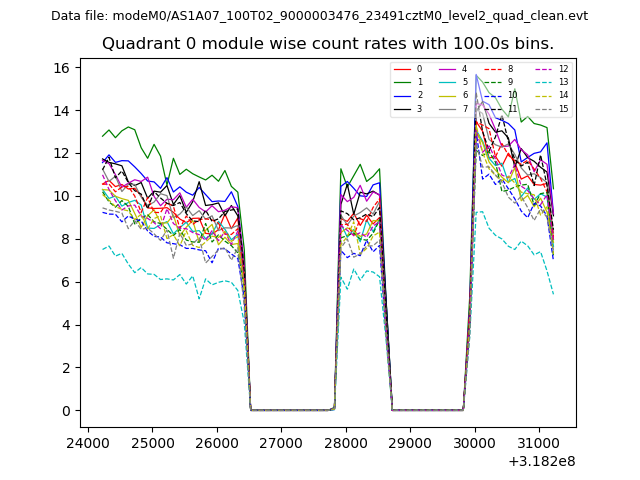

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

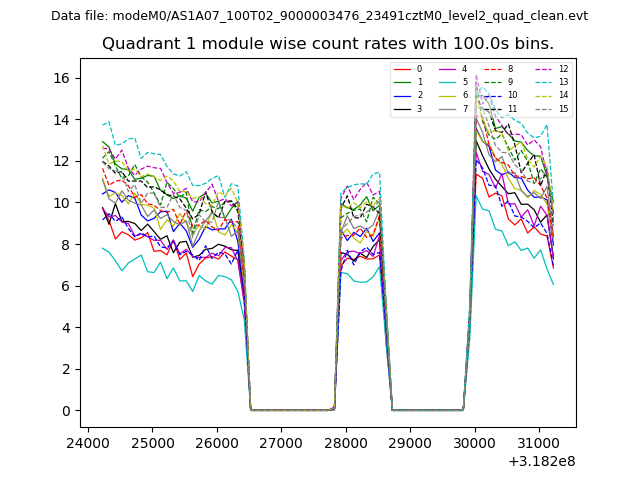

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

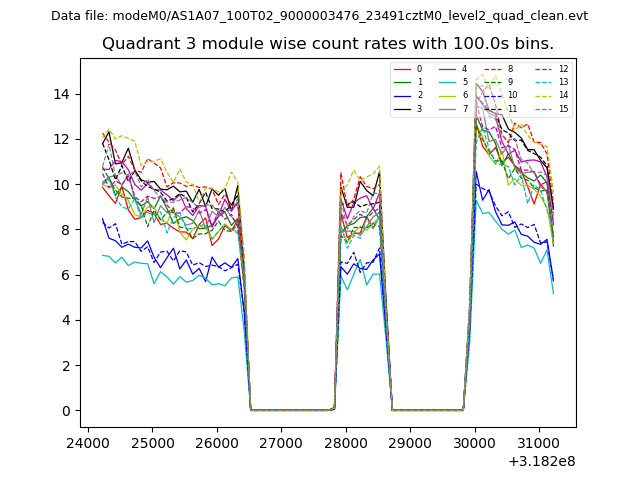

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

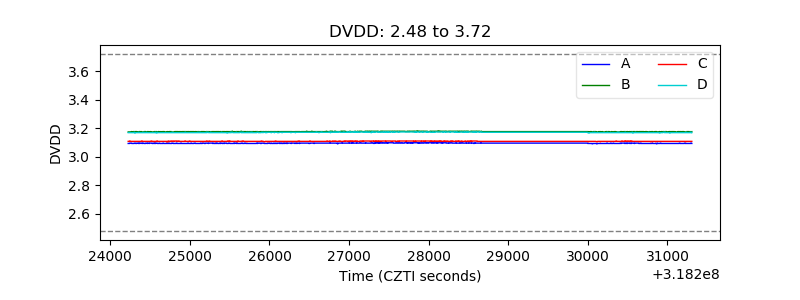

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

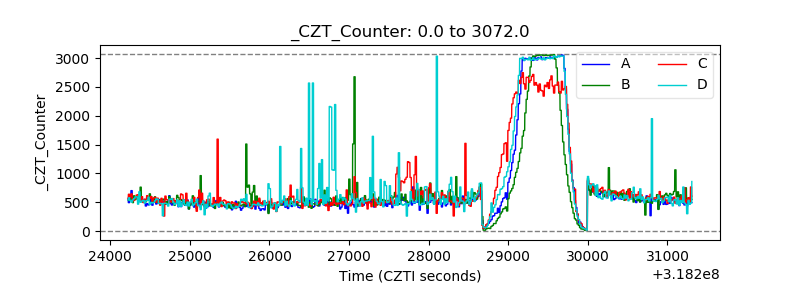

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

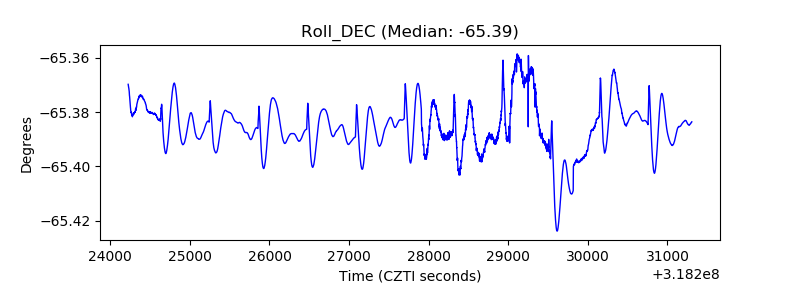

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
