| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_100T02_9000003476_23497cztM0_level2.evt | modeM0/AS1A07_100T02_9000003476_23497cztM0_level2_quad_clean.evt |
| Size (bytes) | 451,146,240 | 90,357,120 |
| Size | 430.2 MB | 86.2 MB |
| Events in quadrant A | 2,975,574 | 583,890 |
| Events in quadrant B | 3,441,492 | 588,085 |
| Events in quadrant C | 3,526,117 | 563,900 |
| Events in quadrant D | 3,291,567 | 560,731 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 2 |
| C | 0 | 130 | 2 |
| D | 0 | 130 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13148 | 124 |
| B | 0 | 14353 | 141 |
| C | 0 | 14538 | 122 |
| D | 0 | 14175 | 130 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6295 | 143 | 2.271644% |
| B | 6296 | 212 | 3.367217% |
| C | 6297 | 185 | 2.937907% |
| D | 6292 | 132 | 2.097902% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

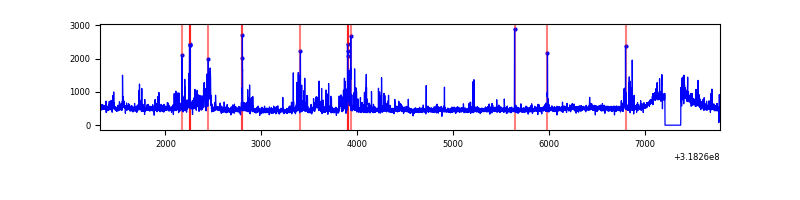

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6465 | 6298 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6464 | 6299 | 15 | 15 | 0.23% | 0.24% |  |
| C | 6464 | 6299 | 21 | 21 | 0.32% | 0.33% |  |
| D | 6461 | 6296 | 48 | 48 | 0.74% | 0.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11157 | 66.75 | 769 | 750 | 155.9 |
| A | 0 | 226 | 6630 | 37.71 | 769 | 750 | 155.9 |
| A | 3 | 137 | 6438 | 36.48 | 769 | 750 | 155.9 |
| B | 0 | 189 | 295779 | 2035.99 | 762 | 742 | 144.9 |
| B | 15 | 32 | 50976 | 346.66 | 762 | 742 | 144.9 |
| B | 0 | 229 | 35558 | 240.26 | 762 | 742 | 144.9 |
| C | 8 | 208 | 469560 | 2711.25 | 742 | 745 | 172.9 |
| C | 14 | 238 | 115420 | 663.19 | 742 | 745 | 172.9 |
| C | 1 | 16 | 11345 | 61.3 | 742 | 745 | 172.9 |
| D | 1 | 52 | 208416 | 1131.51 | 753 | 729 | 183.5 |
| D | 12 | 233 | 128623 | 696.79 | 753 | 729 | 183.5 |
| D | 13 | 249 | 32315 | 172.09 | 753 | 729 | 183.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

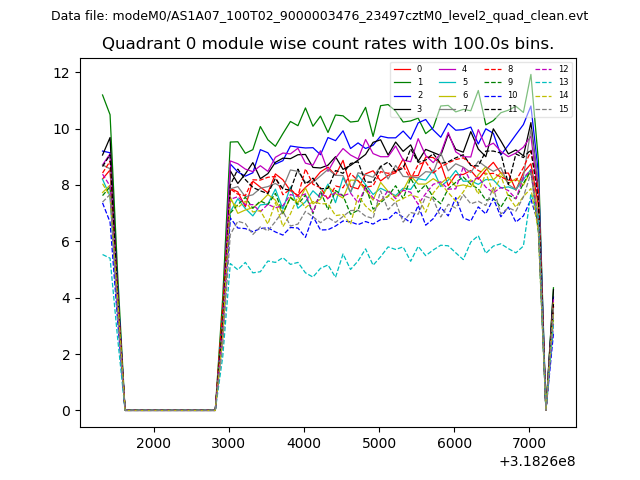

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

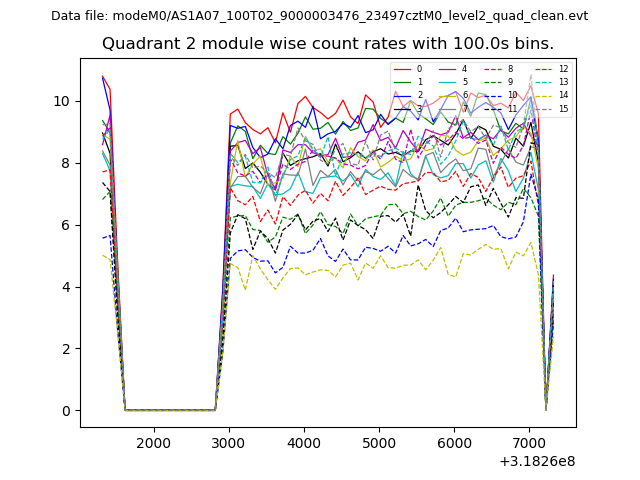

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

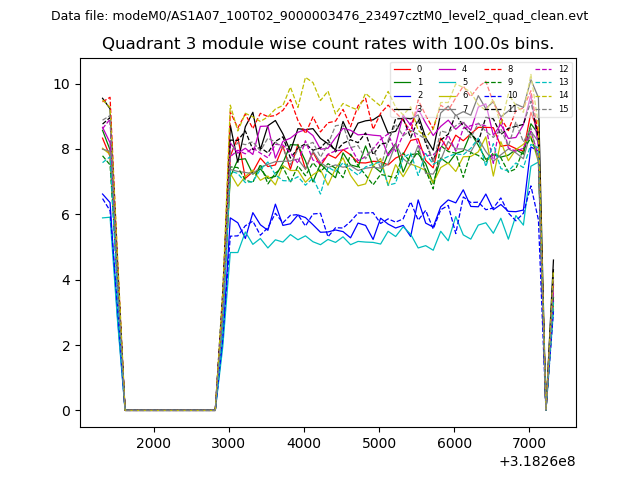

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

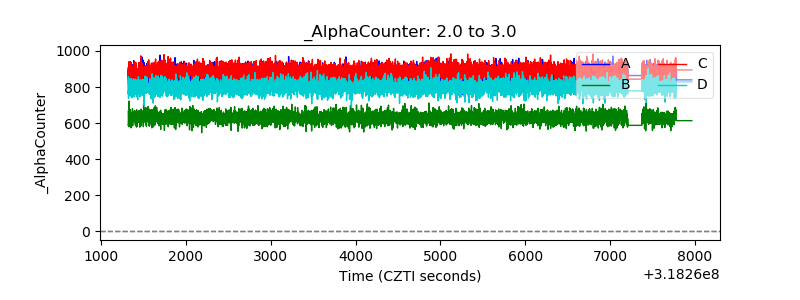

| Alpha Counter |  |

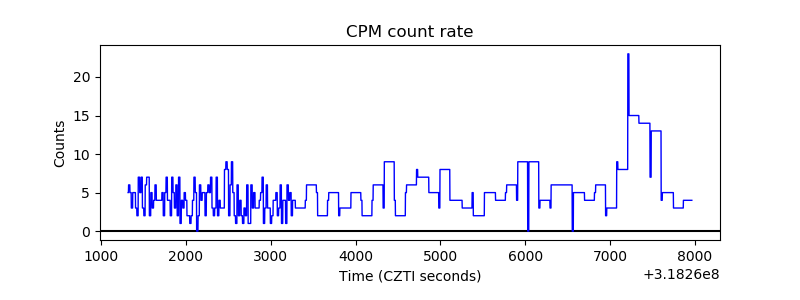

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

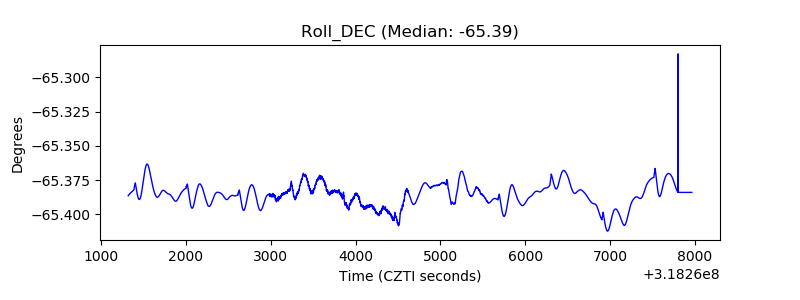

| _Roll_DEC |  |

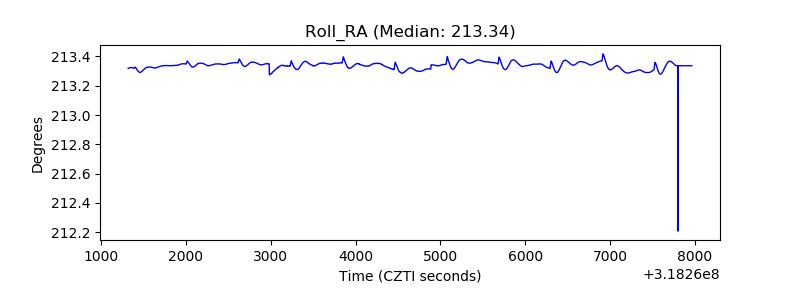

| _Roll_RA |  |
| Veto Counter |  |
