| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_112T01_9000003478_23508cztM0_level2.evt | modeM0/AS1A07_112T01_9000003478_23508cztM0_level2_quad_clean.evt |
| Size (bytes) | 417,873,600 | 73,195,200 |
| Size | 398.5 MB | 69.8 MB |
| Events in quadrant A | 2,905,934 | 466,887 |
| Events in quadrant B | 3,068,383 | 470,087 |
| Events in quadrant C | 2,934,565 | 449,231 |
| Events in quadrant D | 3,369,089 | 441,822 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 12 |
| B | 0 | 124 | 14 |
| C | 0 | 124 | 14 |
| D | 0 | 124 | 10 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12840 | 1175 |
| B | 0 | 13581 | 1258 |
| C | 0 | 12948 | 1193 |
| D | 0 | 15073 | 1721 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5559 | 131 | 2.356539% |
| B | 5558 | 149 | 2.680820% |
| C | 5556 | 146 | 2.627790% |
| D | 5529 | 149 | 2.694882% |

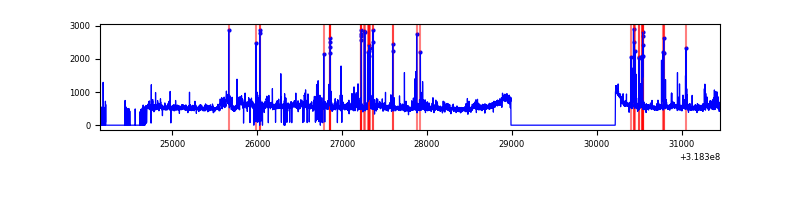

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7306 | 5642 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7306 | 5636 | 5 | 5 | 0.07% | 0.09% |  |
| C | 7307 | 5642 | 7 | 7 | 0.10% | 0.12% |  |
| D | 7307 | 5598 | 42 | 42 | 0.57% | 0.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9881 | 60.43 | 753 | 738 | 151.3 |
| A | 0 | 226 | 6607 | 38.79 | 753 | 738 | 151.3 |
| A | 3 | 137 | 6088 | 35.36 | 753 | 738 | 151.3 |
| B | 0 | 219 | 75852 | 547.93 | 736 | 718 | 137.1 |
| B | 0 | 189 | 60466 | 435.72 | 736 | 718 | 137.1 |
| B | 12 | 111 | 16486 | 114.99 | 736 | 718 | 137.1 |
| C | 14 | 238 | 112921 | 684.33 | 708 | 713 | 164.0 |
| C | 7 | 247 | 30508 | 181.71 | 708 | 713 | 164.0 |
| C | 2 | 16 | 13784 | 79.72 | 708 | 713 | 164.0 |
| D | 1 | 52 | 501311 | 2841.59 | 727 | 706 | 176.2 |
| D | 9 | 85 | 83274 | 468.68 | 727 | 706 | 176.2 |
| D | 2 | 234 | 23632 | 130.13 | 727 | 706 | 176.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

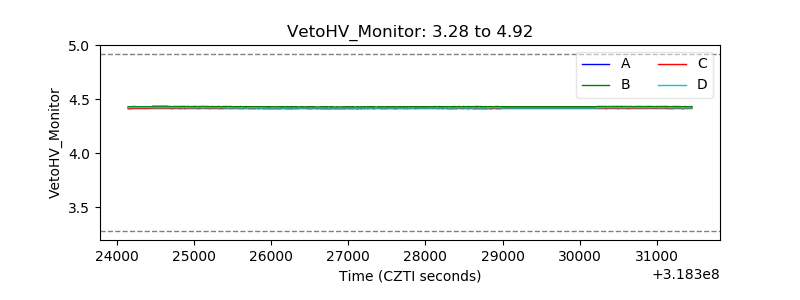

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

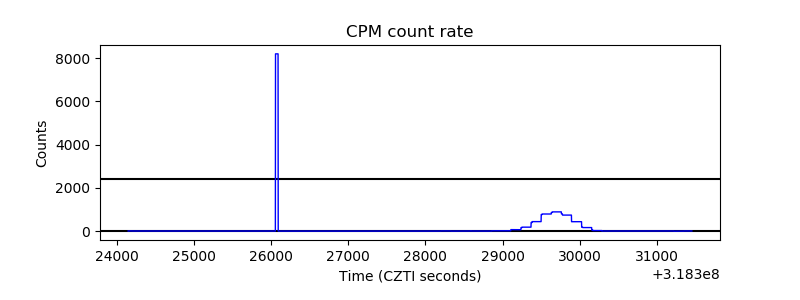

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

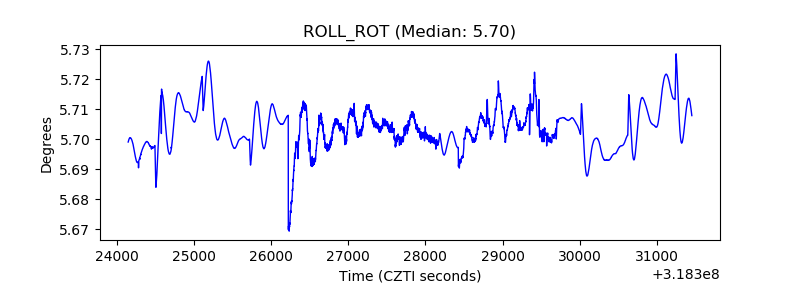

| _ROLL_ROT |  |

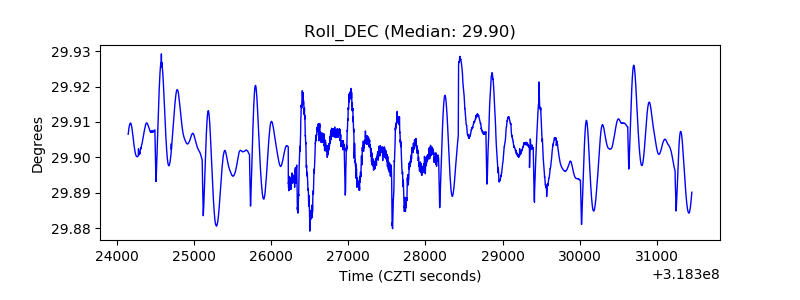

| _Roll_DEC |  |
| _Roll_RA |  |

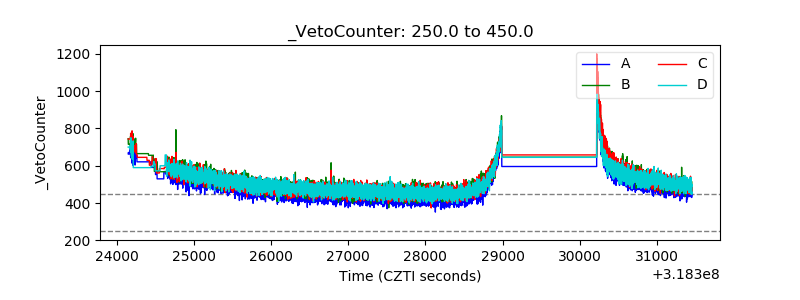

| Veto Counter |  |
