| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_112T01_9000003478_23510cztM0_level2.evt | modeM0/AS1A07_112T01_9000003478_23510cztM0_level2_quad_clean.evt |
| Size (bytes) | 705,029,760 | 75,147,840 |
| Size | 672.4 MB | 71.7 MB |
| Events in quadrant A | 3,554,240 | 472,966 |
| Events in quadrant B | 3,897,998 | 477,749 |
| Events in quadrant C | 4,170,179 | 453,588 |
| Events in quadrant D | 9,241,280 | 368,348 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14997 | 2 |
| B | 0 | 15947 | 2 |
| C | 0 | 16757 | 2 |
| D | 0 | 32355 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7211 | 118 | 1.636389% |
| B | 7211 | 173 | 2.399112% |
| C | 7211 | 369 | 5.117182% |
| D | 7211 | 1999 | 27.721537% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7806 | 7211 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7806 | 7211 | 19 | 19 | 0.24% | 0.26% |  |
| C | 7806 | 7211 | 191 | 191 | 2.45% | 2.65% |  |
| D | 7806 | 7211 | 1805 | 1805 | 23.12% | 25.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 16658 | 85.29 | 917 | 899 | 184.8 |
| A | 13 | 254 | 12429 | 62.4 | 917 | 899 | 184.8 |
| A | 0 | 226 | 7979 | 38.32 | 917 | 899 | 184.8 |
| B | 0 | 189 | 204067 | 1178.44 | 903 | 880 | 172.4 |
| B | 0 | 229 | 32673 | 184.39 | 903 | 880 | 172.4 |
| B | 0 | 219 | 27579 | 154.85 | 903 | 880 | 172.4 |
| C | 0 | 10 | 546478 | 2713.73 | 857 | 863 | 201.1 |
| C | 14 | 238 | 135271 | 668.51 | 857 | 863 | 201.1 |
| C | 7 | 247 | 100180 | 493.97 | 857 | 863 | 201.1 |
| D | 1 | 52 | 5829076 | 30301.62 | 781 | 756 | 192.3 |
| D | 9 | 85 | 270361 | 1401.68 | 781 | 756 | 192.3 |
| D | 7 | 238 | 65351 | 335.83 | 781 | 756 | 192.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

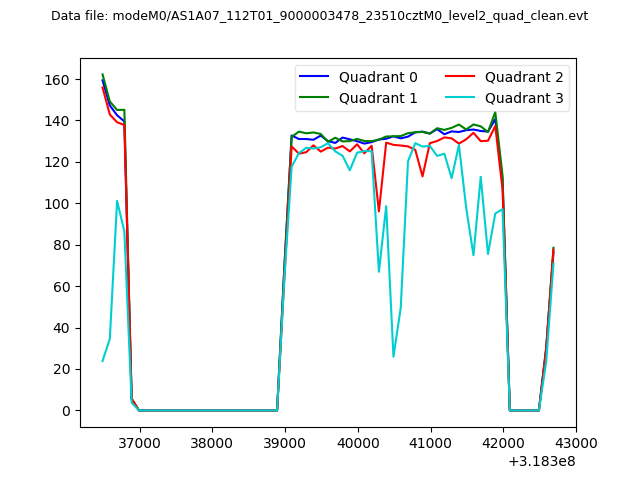

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

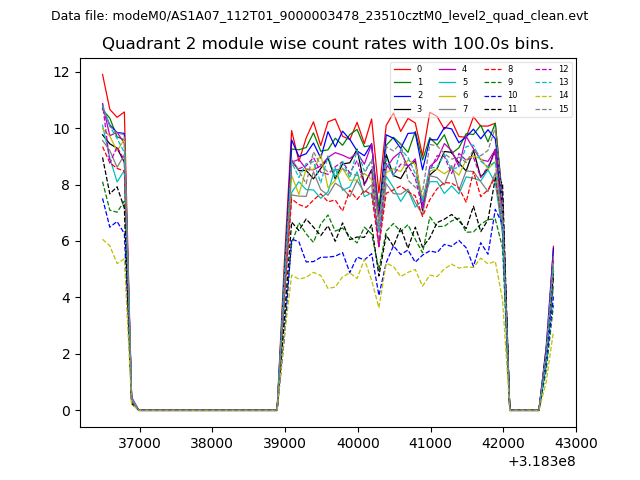

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
