| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_112T02_9000003480_23516cztM0_level2.evt | modeM0/AS1A07_112T02_9000003480_23516cztM0_level2_quad_clean.evt |
| Size (bytes) | 279,855,360 | 69,960,960 |
| Size | 266.9 MB | 66.7 MB |
| Events in quadrant A | 1,950,986 | 455,508 |
| Events in quadrant B | 2,043,713 | 465,820 |
| Events in quadrant C | 2,101,283 | 449,284 |
| Events in quadrant D | 2,082,428 | 442,197 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 5 |
| B | 0 | 12 | 3 |
| C | 0 | 14 | 6 |
| D | 0 | 13 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 117 | 31 |
| B | 0 | 116 | 26 |
| C | 0 | 120 | 36 |
| D | 0 | 118 | 32 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11963 | 3104 |
| B | 0 | 12280 | 3264 |
| C | 0 | 12379 | 3238 |
| D | 0 | 13124 | 3799 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4368 | 15 | 0.343407% |
| B | 4346 | 27 | 0.621261% |
| C | 4348 | 53 | 1.218951% |
| D | 4326 | 34 | 0.785945% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7531 | 4644 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7545 | 4615 | 2 | 2 | 0.03% | 0.04% |  |
| C | 7544 | 4622 | 11 | 11 | 0.15% | 0.24% |  |
| D | 7536 | 4576 | 22 | 22 | 0.29% | 0.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 6820 | 61.59 | 505 | 495 | 102.7 |
| A | 3 | 137 | 4506 | 39.06 | 505 | 495 | 102.7 |
| A | 0 | 226 | 4289 | 36.94 | 505 | 495 | 102.7 |
| B | 0 | 189 | 49827 | 507.69 | 503 | 490 | 97.2 |
| B | 12 | 111 | 11728 | 115.64 | 503 | 490 | 97.2 |
| B | 12 | 17 | 11450 | 112.78 | 503 | 490 | 97.2 |
| C | 7 | 247 | 99449 | 852.09 | 486 | 488 | 116.1 |
| C | 14 | 238 | 78220 | 669.3 | 486 | 488 | 116.1 |
| C | 9 | 54 | 21716 | 182.78 | 486 | 488 | 116.1 |
| D | 1 | 52 | 216592 | 1815.34 | 484 | 471 | 119.1 |
| D | 2 | 234 | 17467 | 142.76 | 484 | 471 | 119.1 |
| D | 5 | 222 | 12551 | 101.47 | 484 | 471 | 119.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

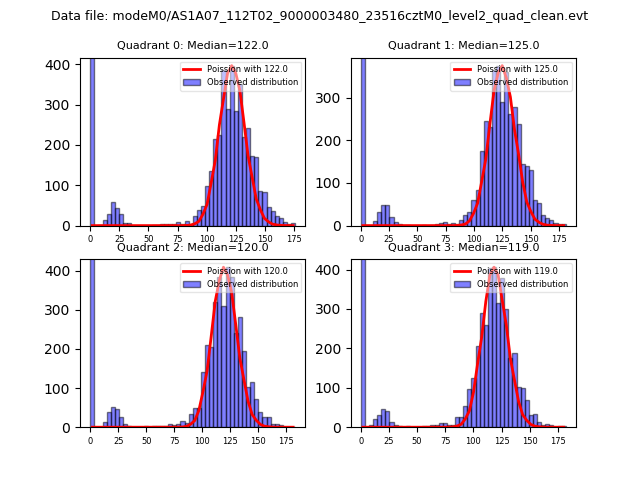

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

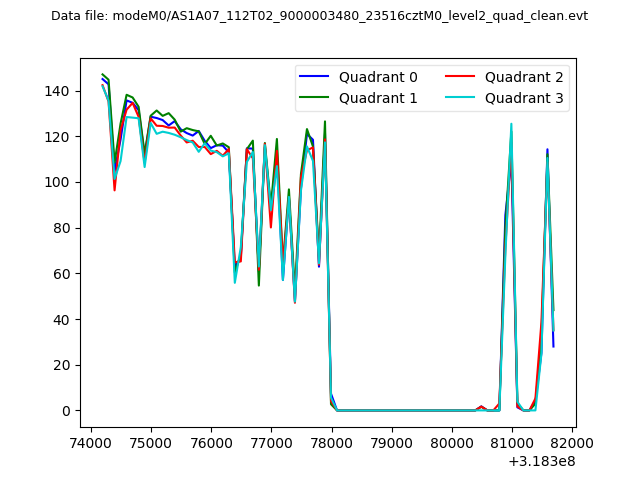

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

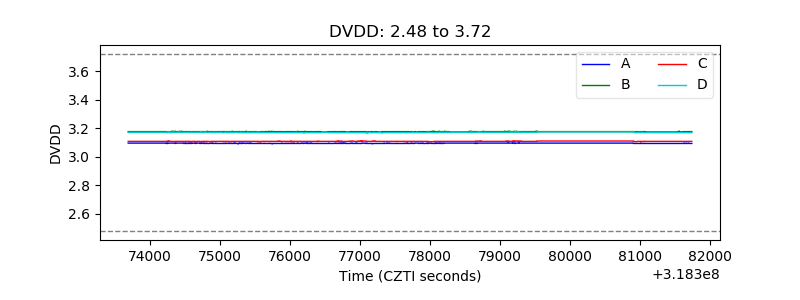

| CZT HV Monitor |  |
| D_VDD |  |

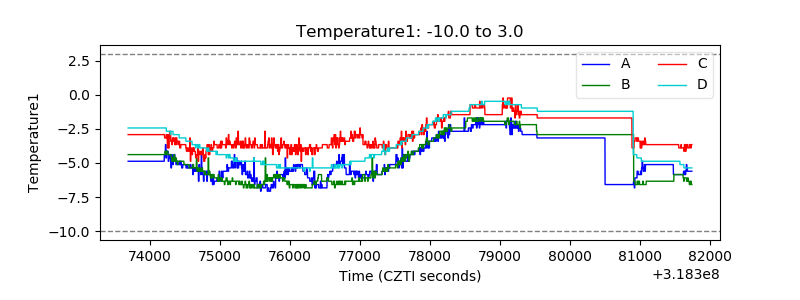

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

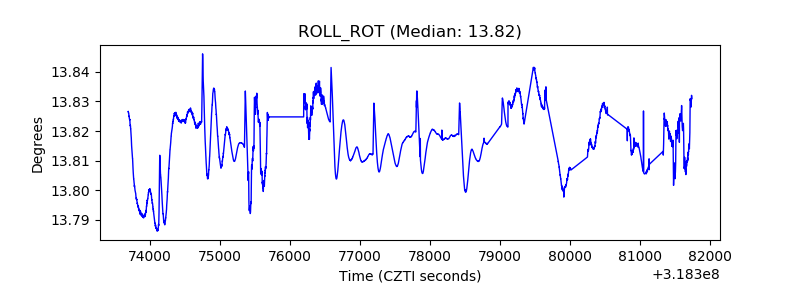

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
