| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_112T02_9000003480_23523cztM0_level2.evt | modeM0/AS1A07_112T02_9000003480_23523cztM0_level2_quad_clean.evt |
| Size (bytes) | 325,569,600 | 59,276,160 |
| Size | 310.5 MB | 56.5 MB |
| Events in quadrant A | 2,221,701 | 379,789 |
| Events in quadrant B | 2,325,919 | 382,416 |
| Events in quadrant C | 2,238,882 | 362,558 |
| Events in quadrant D | 2,767,937 | 354,723 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 1 | 140136312081288 | 46 |
| B | 1 | -1 | -1 |
| C | 1 | -1 | -1 |
| D | 1 | -1 | -1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 90 | 0 |
| B | 0 | 90 | 0 |
| C | 0 | 90 | 0 |
| D | 0 | 90 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9161 | 5 |
| B | 0 | 9430 | 3 |
| C | 0 | 9215 | 1 |
| D | 0 | 11034 | 12 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4481 | 8 | 0.178532% |
| B | 4482 | 17 | 0.379295% |
| C | 4483 | 20 | 0.446130% |
| D | 4481 | 51 | 1.138139% |

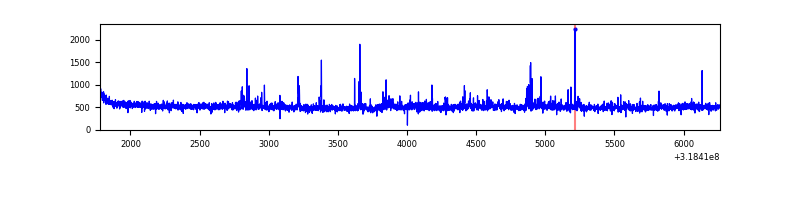

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4483 | 4483 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4483 | 4483 | 1 | 1 | 0.02% | 0.02% |  |
| C | 4483 | 4483 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4483 | 4483 | 38 | 38 | 0.85% | 0.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 7492 | 59.83 | 576 | 566 | 115.8 |
| A | 0 | 226 | 4936 | 37.75 | 576 | 566 | 115.8 |
| A | 3 | 137 | 4626 | 35.07 | 576 | 566 | 115.8 |
| B | 0 | 189 | 36366 | 339.08 | 564 | 553 | 105.6 |
| B | 0 | 230 | 29232 | 271.53 | 564 | 553 | 105.6 |
| B | 0 | 245 | 17963 | 164.84 | 564 | 553 | 105.6 |
| C | 14 | 238 | 88828 | 703.56 | 541 | 546 | 125.5 |
| C | 7 | 247 | 27891 | 217.92 | 541 | 546 | 125.5 |
| C | 2 | 16 | 7692 | 56.95 | 541 | 546 | 125.5 |
| D | 1 | 52 | 603702 | 4447.17 | 554 | 538 | 135.6 |
| D | 8 | 195 | 24054 | 173.39 | 554 | 538 | 135.6 |
| D | 2 | 234 | 19774 | 141.83 | 554 | 538 | 135.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

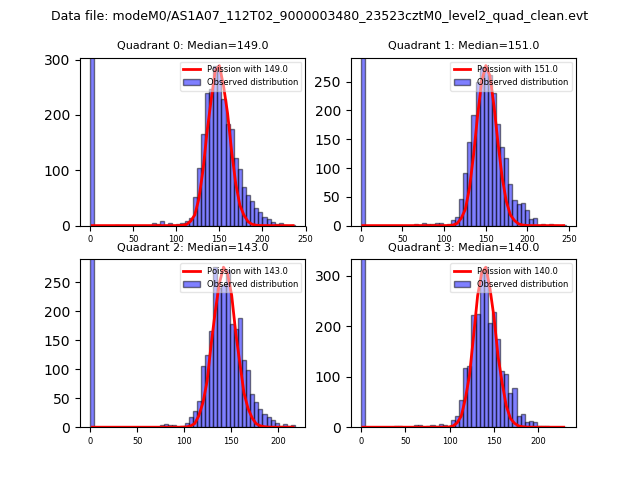

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

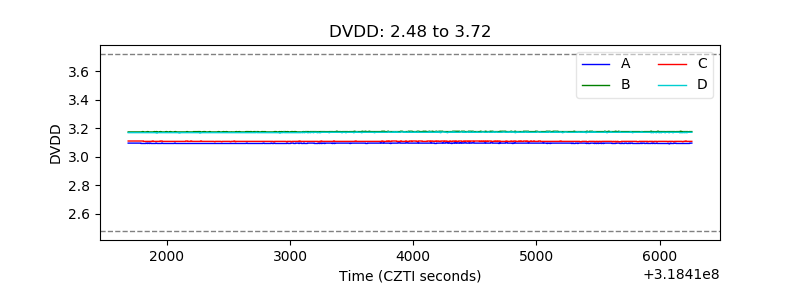

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

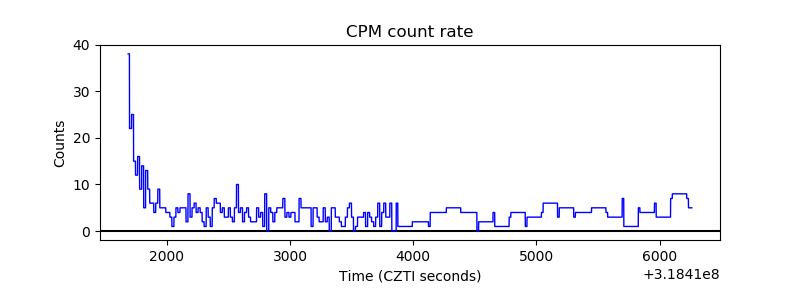

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

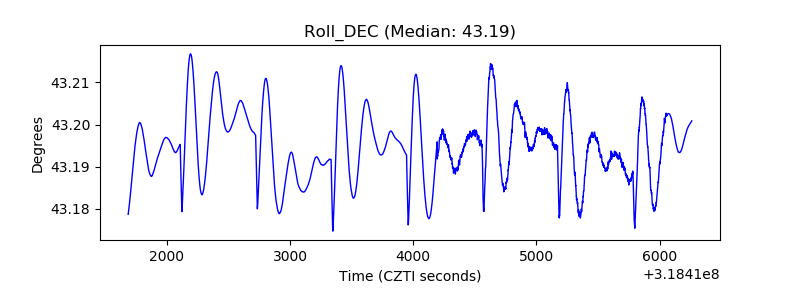

| _Roll_DEC |  |

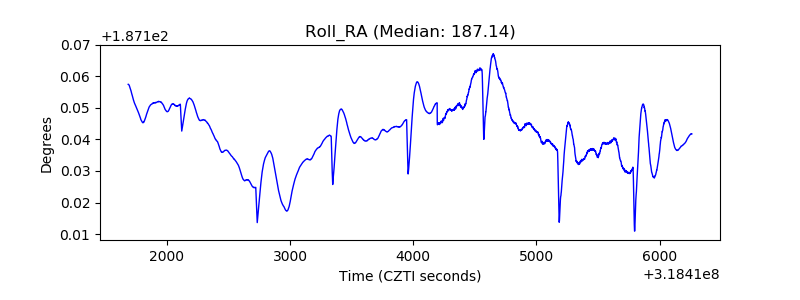

| _Roll_RA |  |

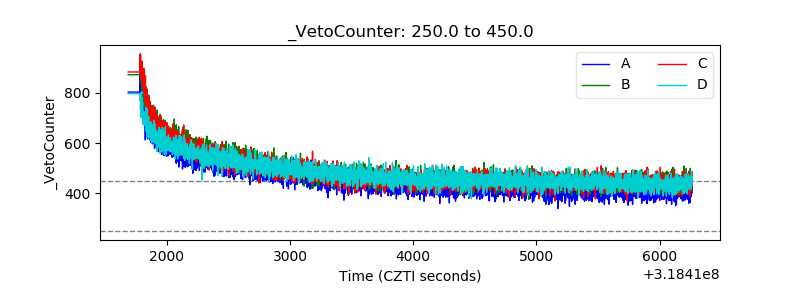

| Veto Counter |  |
