| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_011T01_9000003482_23531cztM0_level2.evt | modeM0/AS1A07_011T01_9000003482_23531cztM0_level2_quad_clean.evt |
| Size (bytes) | 780,534,720 | 169,554,240 |
| Size | 744.4 MB | 161.7 MB |
| Events in quadrant A | 5,231,529 | 1,101,257 |
| Events in quadrant B | 5,699,749 | 1,119,422 |
| Events in quadrant C | 5,427,850 | 1,079,347 |
| Events in quadrant D | 6,514,120 | 1,053,853 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 242 | 10 |
| B | 0 | 242 | 10 |
| C | 0 | 243 | 9 |
| D | 0 | 241 | 8 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23879 | 740 |
| B | 0 | 25255 | 815 |
| C | 0 | 24475 | 769 |
| D | 0 | 28217 | 874 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 11296 | 76 | 0.672805% |
| B | 11290 | 137 | 1.213463% |
| C | 11283 | 169 | 1.497829% |
| D | 11284 | 315 | 2.791563% |

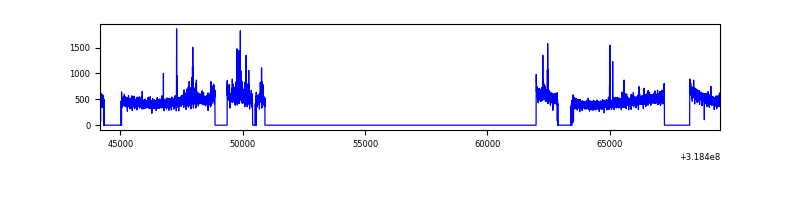

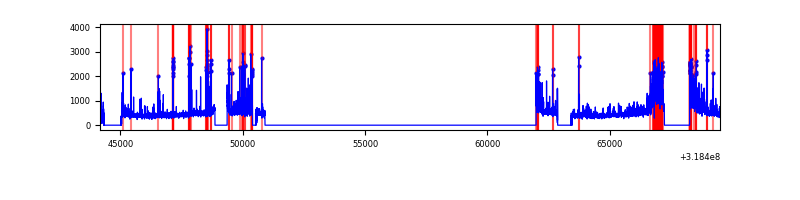

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 25354 | 11329 | 1 | 1 | 0.00% | 0.01% |  |
| B | 25354 | 11321 | 24 | 24 | 0.09% | 0.21% |  |
| C | 25354 | 11320 | 0 | 0 | 0.00% | 0.00% |  |
| D | 25355 | 11317 | 160 | 160 | 0.63% | 1.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 19280 | 66.08 | 1351 | 1323 | 271.7 |
| A | 10 | 253 | 17121 | 58.14 | 1351 | 1323 | 271.7 |
| A | 3 | 137 | 11999 | 39.29 | 1351 | 1323 | 271.7 |
| B | 0 | 189 | 188819 | 734.3 | 1347 | 1311 | 255.4 |
| B | 3 | 64 | 108448 | 419.56 | 1347 | 1311 | 255.4 |
| B | 15 | 32 | 33530 | 126.17 | 1347 | 1311 | 255.4 |
| C | 14 | 238 | 206728 | 681.34 | 1297 | 1305 | 301.5 |
| C | 7 | 247 | 135080 | 443.7 | 1297 | 1305 | 301.5 |
| C | 2 | 16 | 12055 | 35.66 | 1297 | 1305 | 301.5 |
| D | 9 | 85 | 891834 | 2803.14 | 1305 | 1265 | 317.7 |
| D | 1 | 52 | 507143 | 1592.3 | 1305 | 1265 | 317.7 |
| D | 2 | 120 | 53968 | 165.89 | 1305 | 1265 | 317.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

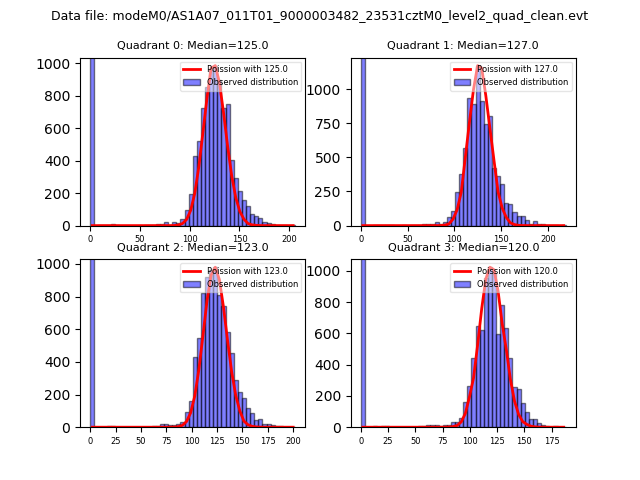

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

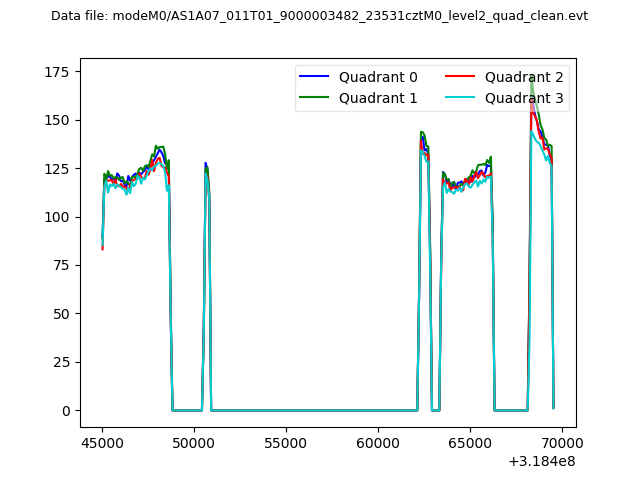

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

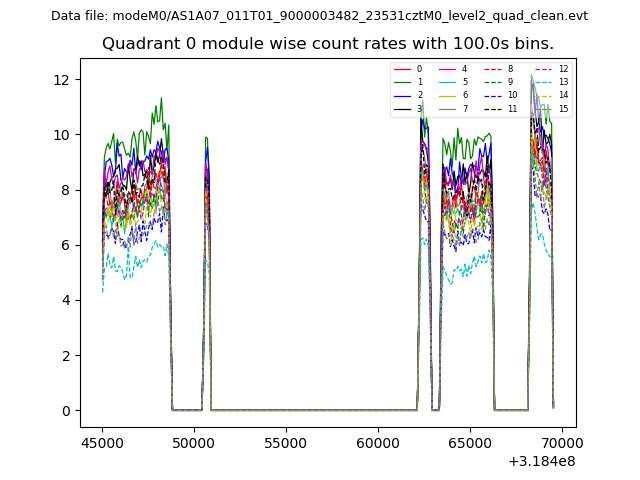

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

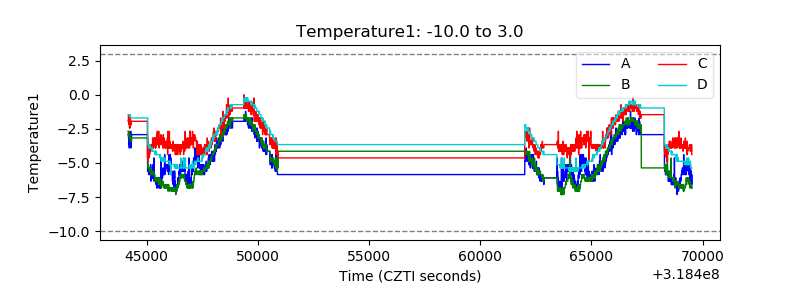

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

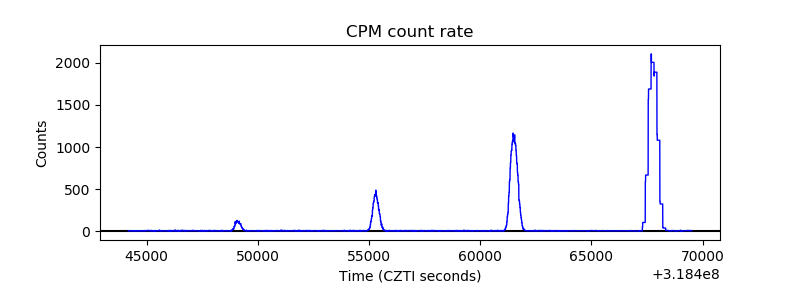

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
