| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_011T01_9000003482_23547cztM0_level2.evt | modeM0/AS1A07_011T01_9000003482_23547cztM0_level2_quad_clean.evt |
| Size (bytes) | 237,075,840 | 47,240,640 |
| Size | 226.1 MB | 45.1 MB |
| Events in quadrant A | 1,607,878 | 302,507 |
| Events in quadrant B | 1,757,050 | 314,177 |
| Events in quadrant C | 1,670,601 | 296,252 |
| Events in quadrant D | 1,925,058 | 289,606 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 12 | 1 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 73 | 7 |
| B | 0 | 72 | 6 |
| C | 0 | 69 | 3 |
| D | 0 | 72 | 6 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7044 | 380 |
| B | 0 | 7560 | 380 |
| C | 0 | 7318 | 371 |
| D | 0 | 8303 | 369 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3200 | 9 | 0.281250% |
| B | 3205 | 45 | 1.404056% |
| C | 3200 | 85 | 2.656250% |
| D | 3206 | 22 | 0.686213% |

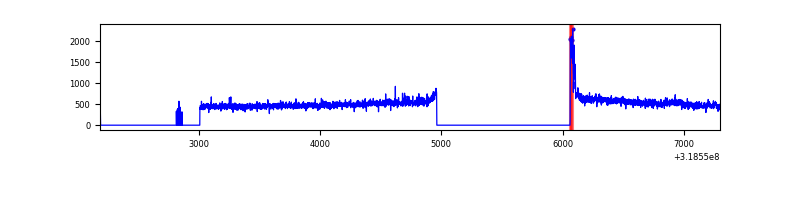

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5107 | 3213 | 0 | 0 | 0.00% | 0.00% |  |
| B | 5107 | 3218 | 6 | 6 | 0.12% | 0.19% |  |
| C | 5110 | 3210 | 5 | 5 | 0.10% | 0.16% |  |
| D | 5113 | 3220 | 10 | 10 | 0.20% | 0.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 252 | 22993 | 270.26 | 411 | 401 | 83.6 |
| A | 13 | 254 | 5391 | 59.69 | 411 | 401 | 83.6 |
| A | 0 | 226 | 3530 | 37.43 | 411 | 401 | 83.6 |
| B | 3 | 64 | 63465 | 801.63 | 409 | 399 | 78.7 |
| B | 0 | 189 | 41999 | 528.78 | 409 | 399 | 78.7 |
| B | 0 | 230 | 19665 | 244.89 | 409 | 399 | 78.7 |
| C | 14 | 238 | 63817 | 688.16 | 394 | 397 | 92.2 |
| C | 9 | 232 | 19481 | 207.08 | 394 | 397 | 92.2 |
| C | 0 | 10 | 15008 | 158.54 | 394 | 397 | 92.2 |
| D | 1 | 52 | 346339 | 3520.55 | 399 | 386 | 98.3 |
| D | 9 | 85 | 50177 | 506.69 | 399 | 386 | 98.3 |
| D | 2 | 234 | 14543 | 144.07 | 399 | 386 | 98.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

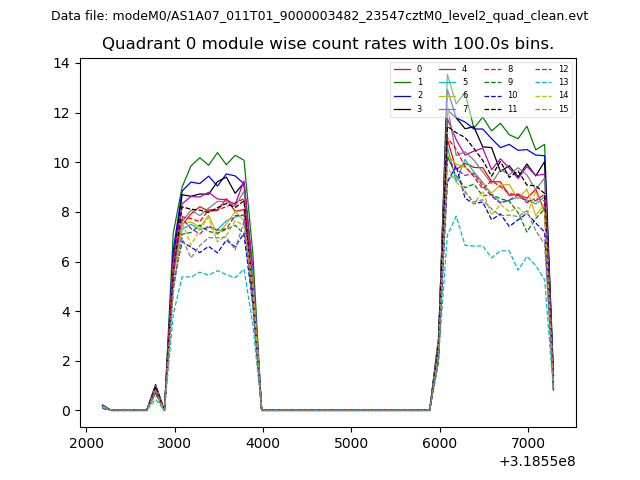

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

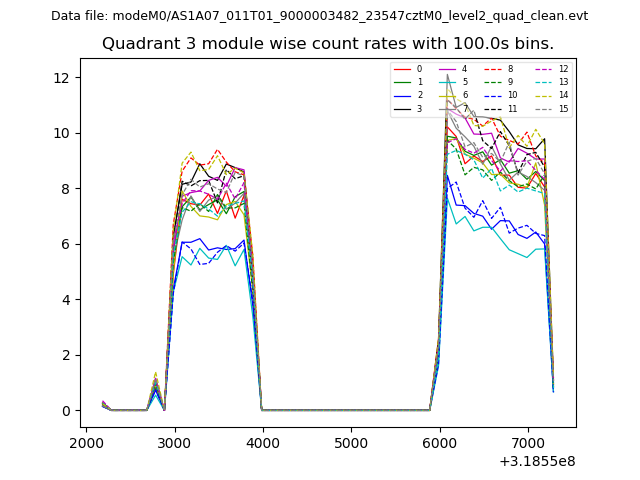

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

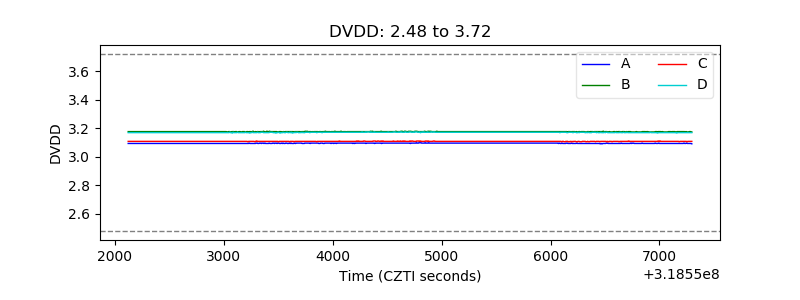

| D_VDD |  |

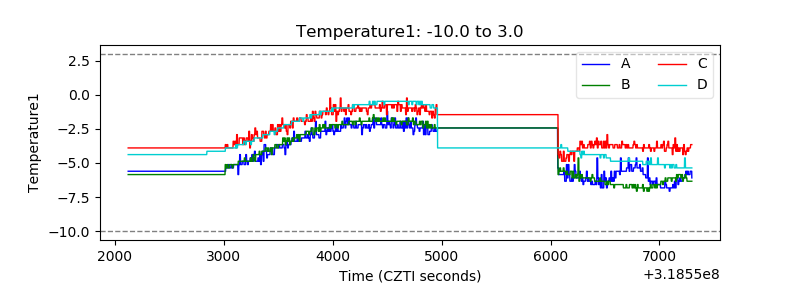

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

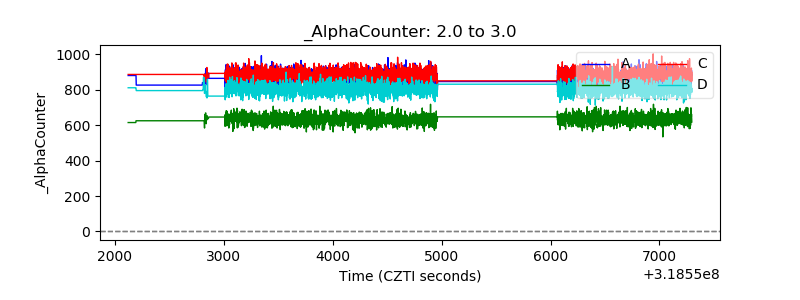

| Alpha Counter |  |

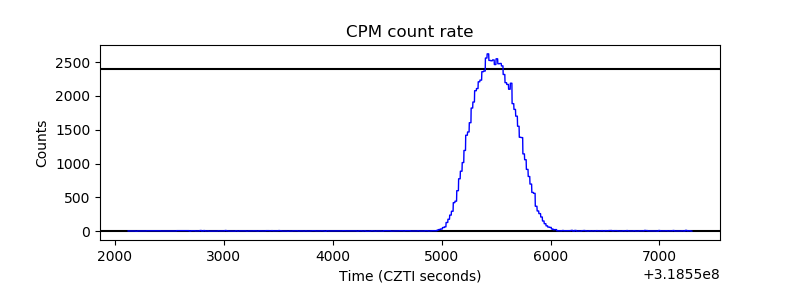

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

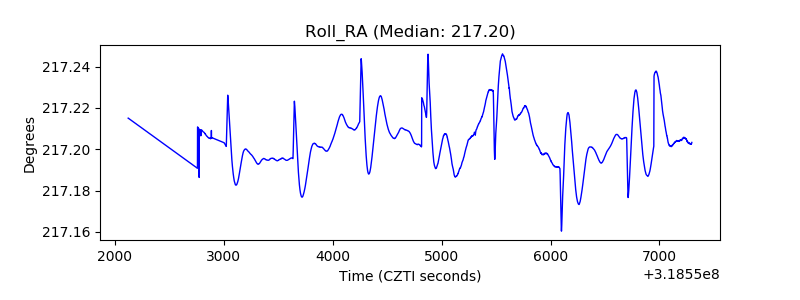

| _Roll_RA |  |
| Veto Counter |  |
