| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_011T01_9000003482_23566cztM0_level2.evt | modeM0/AS1A07_011T01_9000003482_23566cztM0_level2_quad_clean.evt |
| Size (bytes) | 426,625,920 | 90,947,520 |
| Size | 406.9 MB | 86.7 MB |
| Events in quadrant A | 2,938,954 | 596,939 |
| Events in quadrant B | 3,140,240 | 603,660 |
| Events in quadrant C | 2,971,556 | 573,946 |
| Events in quadrant D | 3,460,780 | 559,725 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12362 | 2 |
| B | 0 | 13010 | 2 |
| C | 0 | 12507 | 2 |
| D | 0 | 14323 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6015 | 69 | 1.147132% |
| B | 6016 | 104 | 1.728723% |
| C | 6016 | 90 | 1.496011% |
| D | 6016 | 124 | 2.061170% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7235 | 6016 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7236 | 6017 | 10 | 10 | 0.14% | 0.17% |  |
| C | 7236 | 6017 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7236 | 6016 | 30 | 30 | 0.41% | 0.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9654 | 59.02 | 760 | 746 | 150.9 |
| A | 6 | 16 | 8654 | 52.4 | 760 | 746 | 150.9 |
| A | 0 | 226 | 6627 | 38.97 | 760 | 746 | 150.9 |
| B | 0 | 189 | 124121 | 876.63 | 749 | 733 | 140.8 |
| B | 4 | 216 | 32248 | 223.9 | 749 | 733 | 140.8 |
| B | 3 | 64 | 17379 | 118.26 | 749 | 733 | 140.8 |
| C | 14 | 238 | 116243 | 703.06 | 714 | 718 | 164.3 |
| C | 10 | 9 | 39013 | 233.05 | 714 | 718 | 164.3 |
| C | 0 | 10 | 20237 | 118.79 | 714 | 718 | 164.3 |
| D | 9 | 85 | 520616 | 2958.65 | 727 | 704 | 175.7 |
| D | 1 | 52 | 123210 | 697.14 | 727 | 704 | 175.7 |
| D | 2 | 234 | 29480 | 163.75 | 727 | 704 | 175.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

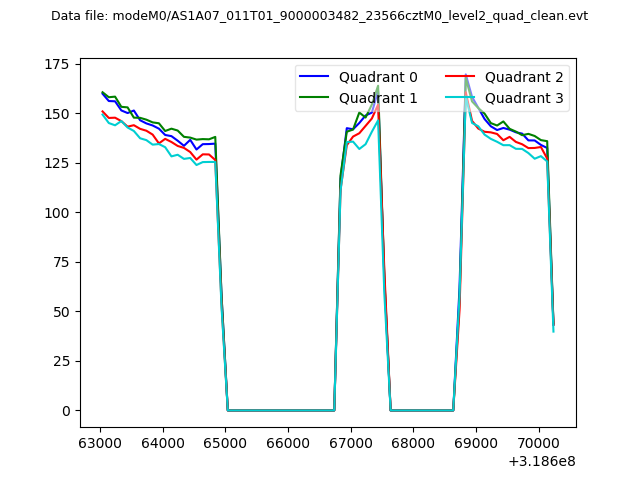

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

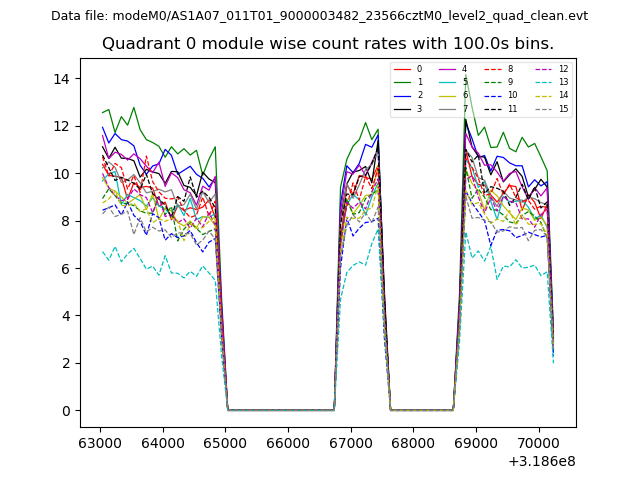

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

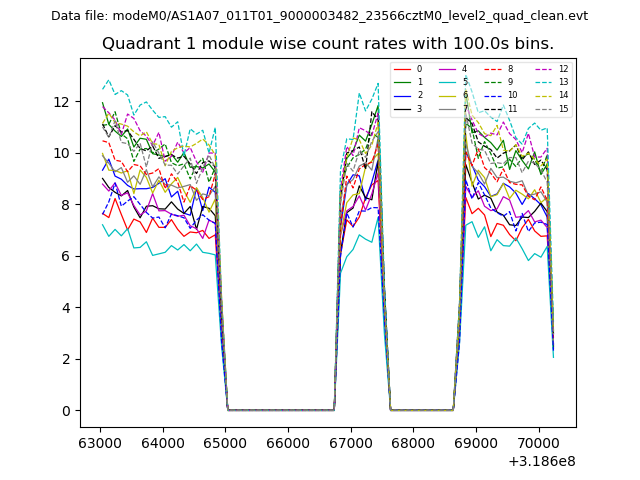

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

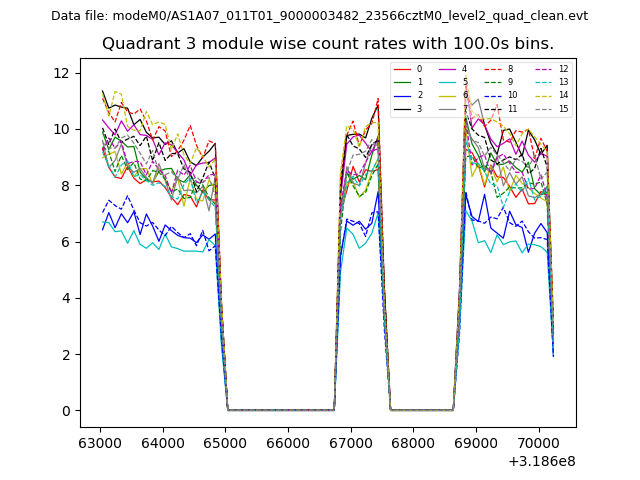

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

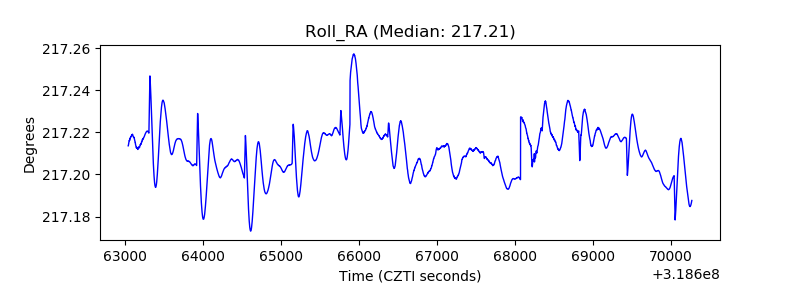

| _Roll_RA |  |

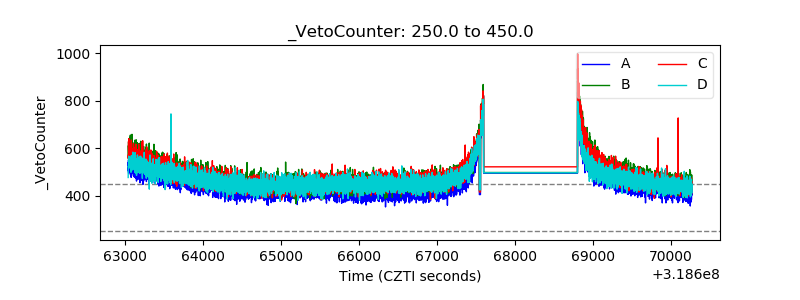

| Veto Counter |  |
