| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_011T01_9000003482_23569cztM0_level2.evt | modeM0/AS1A07_011T01_9000003482_23569cztM0_level2_quad_clean.evt |
| Size (bytes) | 508,417,920 | 91,730,880 |
| Size | 484.9 MB | 87.5 MB |
| Events in quadrant A | 3,332,427 | 580,387 |
| Events in quadrant B | 3,653,488 | 590,011 |
| Events in quadrant C | 3,762,573 | 556,699 |
| Events in quadrant D | 4,163,118 | 552,557 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14662 | 1 |
| B | 0 | 15364 | 1 |
| C | 0 | 15745 | 1 |
| D | 0 | 17110 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7155 | 169 | 2.361985% |
| B | 7155 | 220 | 3.074773% |
| C | 7155 | 315 | 4.402516% |
| D | 7155 | 225 | 3.144654% |

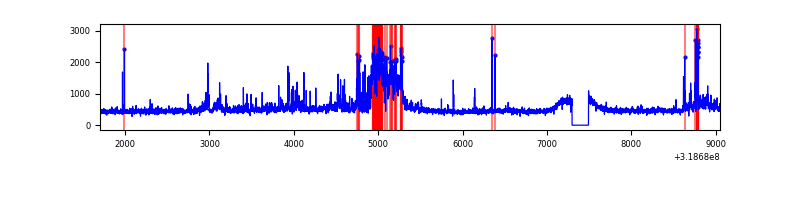

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7350 | 7155 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7350 | 7155 | 10 | 10 | 0.14% | 0.14% |  |
| C | 7350 | 7155 | 95 | 95 | 1.29% | 1.33% |  |
| D | 7350 | 7155 | 82 | 82 | 1.12% | 1.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12651 | 67.69 | 862 | 843 | 174.4 |
| A | 3 | 137 | 7948 | 40.73 | 862 | 843 | 174.4 |
| A | 0 | 226 | 7333 | 37.2 | 862 | 843 | 174.4 |
| B | 0 | 189 | 190029 | 1152.05 | 854 | 832 | 164.2 |
| B | 0 | 229 | 29557 | 174.91 | 854 | 832 | 164.2 |
| B | 4 | 216 | 26502 | 156.31 | 854 | 832 | 164.2 |
| C | 10 | 9 | 261888 | 1391.82 | 812 | 816 | 187.6 |
| C | 0 | 10 | 154417 | 818.87 | 812 | 816 | 187.6 |
| C | 14 | 238 | 128754 | 682.06 | 812 | 816 | 187.6 |
| D | 9 | 85 | 608562 | 2997.71 | 833 | 804 | 202.7 |
| D | 7 | 38 | 105245 | 515.14 | 833 | 804 | 202.7 |
| D | 7 | 238 | 74553 | 363.76 | 833 | 804 | 202.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

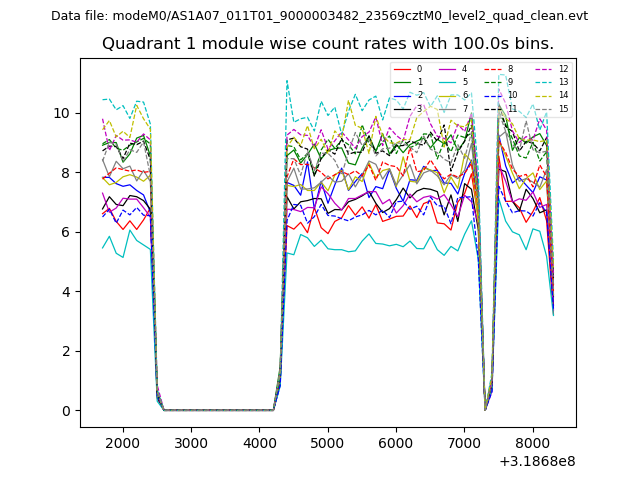

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

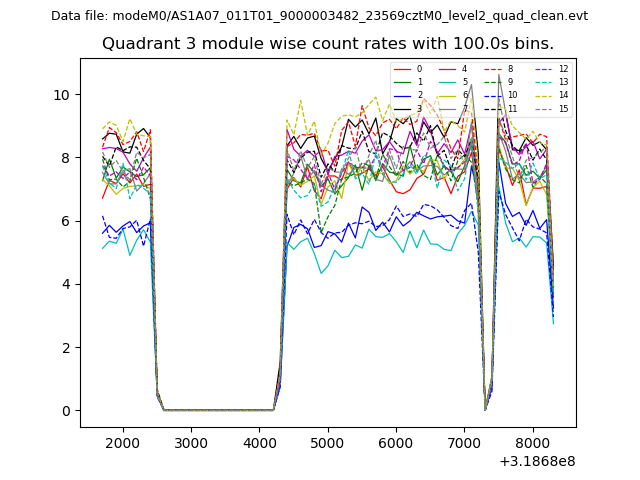

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

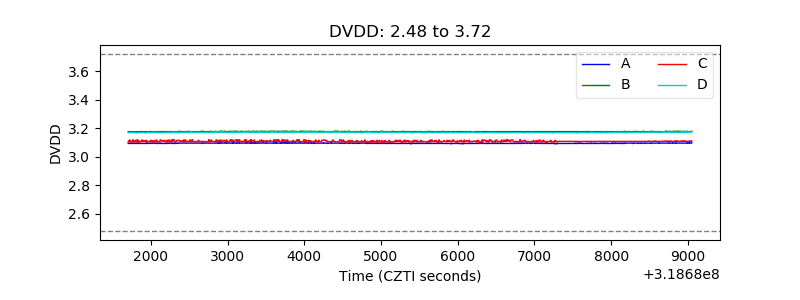

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

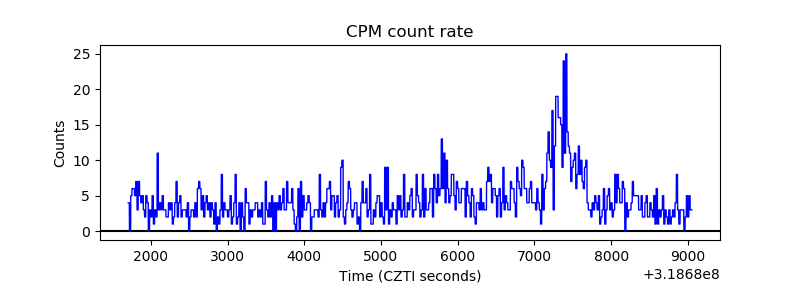

| _CPM_Rate |  |

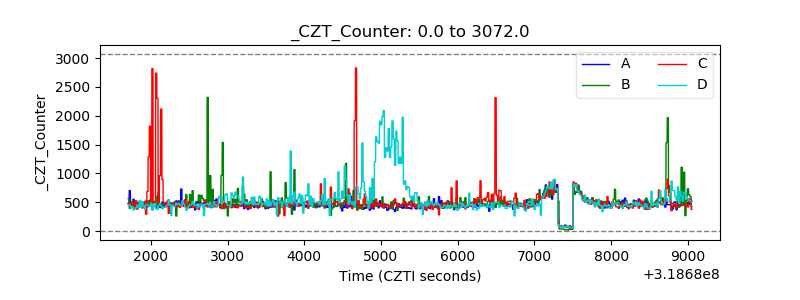

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

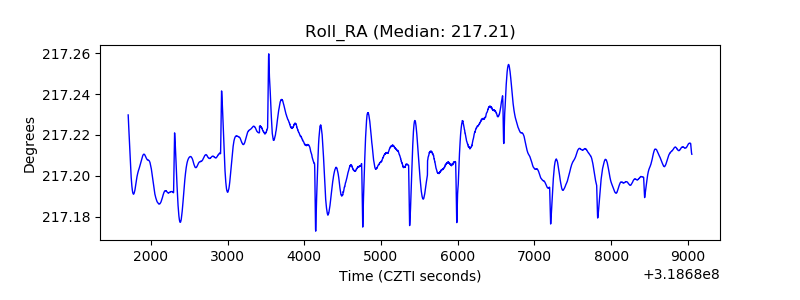

| _Roll_RA |  |

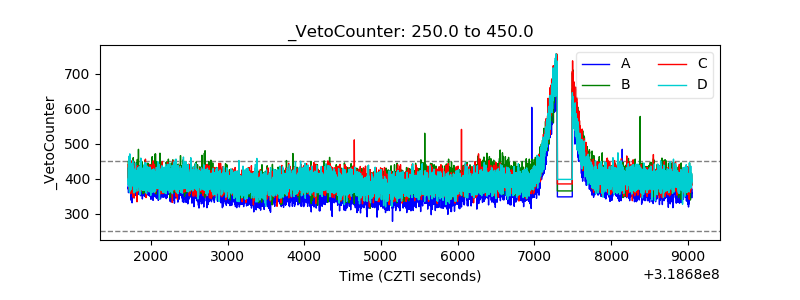

| Veto Counter |  |
