| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_011T01_9000003482_23573cztM0_level2.evt | modeM0/AS1A07_011T01_9000003482_23573cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,501,859,520 | 265,357,440 |
| Size | 1.4 GB | 253.1 MB |
| Events in quadrant A | 9,772,406 | 1,665,148 |
| Events in quadrant B | 10,774,187 | 1,677,276 |
| Events in quadrant C | 10,236,671 | 1,624,768 |
| Events in quadrant D | 13,251,069 | 1,592,924 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 438 | 0 |
| B | 0 | 438 | 0 |
| C | 0 | 438 | 0 |
| D | 0 | 438 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 43471 | 4 |
| B | 0 | 45914 | 3 |
| C | 0 | 44405 | 4 |
| D | 0 | 54049 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 21441 | 152 | 0.708922% |
| B | 21442 | 240 | 1.119299% |
| C | 21441 | 286 | 1.333893% |
| D | 21441 | 536 | 2.499883% |

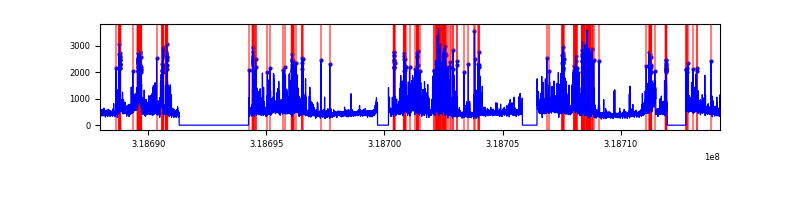

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 26257 | 21442 | 0 | 0 | 0.00% | 0.00% |  |
| B | 26258 | 21443 | 58 | 58 | 0.22% | 0.27% |  |
| C | 26257 | 21442 | 50 | 50 | 0.19% | 0.23% |  |
| D | 26257 | 21442 | 370 | 370 | 1.41% | 1.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 37539 | 69.0 | 2528 | 2474 | 508.2 |
| A | 3 | 137 | 22820 | 40.03 | 2528 | 2474 | 508.2 |
| A | 0 | 226 | 21816 | 38.06 | 2528 | 2474 | 508.2 |
| B | 0 | 189 | 394891 | 829.98 | 2507 | 2447 | 472.8 |
| B | 4 | 216 | 177561 | 370.35 | 2507 | 2447 | 472.8 |
| B | 15 | 32 | 92285 | 190.0 | 2507 | 2447 | 472.8 |
| C | 14 | 238 | 381447 | 676.05 | 2415 | 2423 | 560.6 |
| C | 10 | 9 | 193696 | 341.16 | 2415 | 2423 | 560.6 |
| C | 0 | 10 | 177938 | 313.06 | 2415 | 2423 | 560.6 |
| D | 1 | 52 | 1345600 | 2280.32 | 2444 | 2376 | 589.1 |
| D | 7 | 38 | 1021983 | 1730.93 | 2444 | 2376 | 589.1 |
| D | 12 | 233 | 492991 | 832.89 | 2444 | 2376 | 589.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

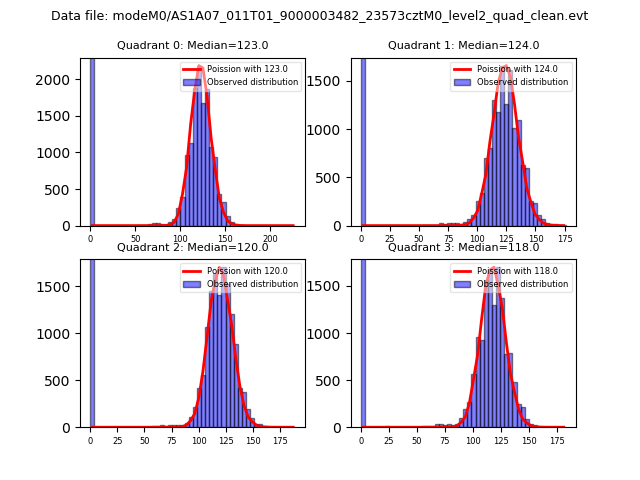

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

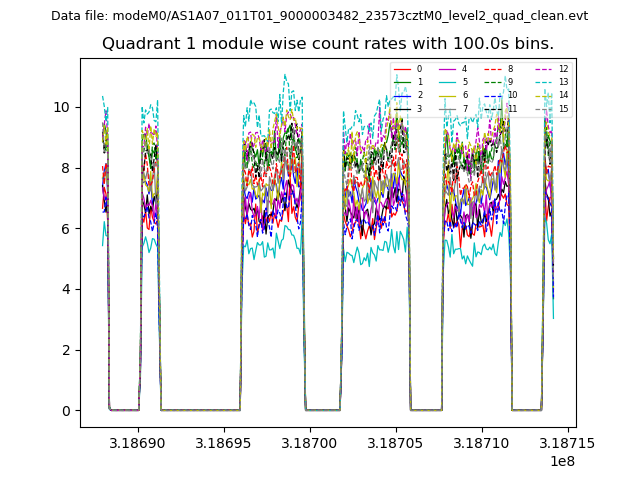

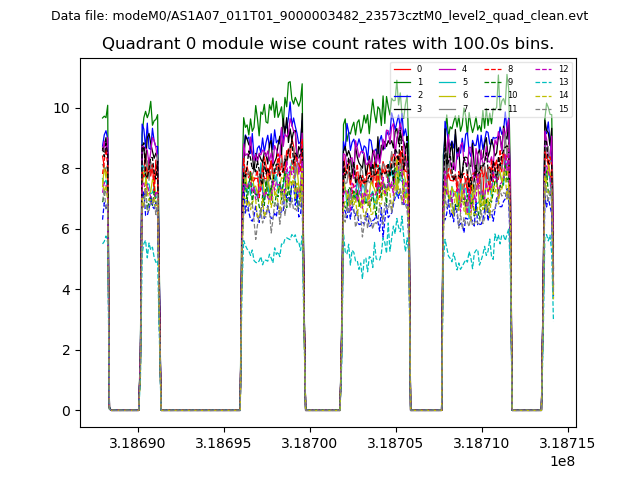

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

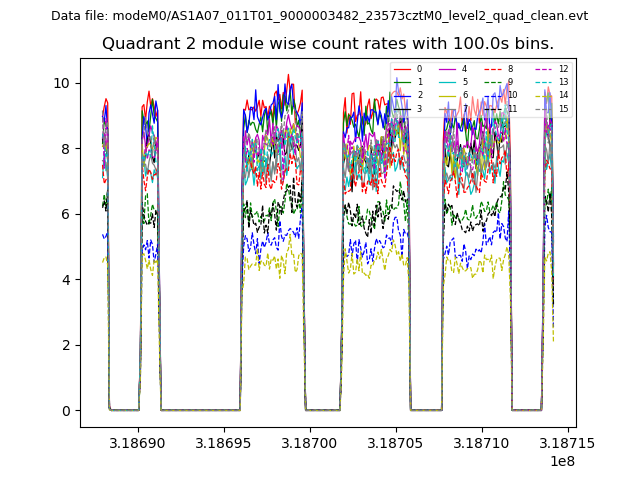

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

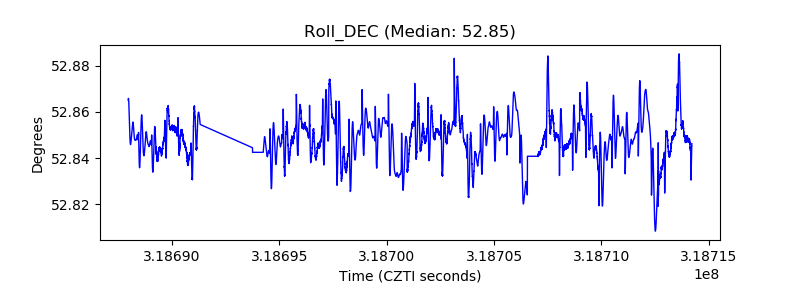

| _Roll_DEC |  |

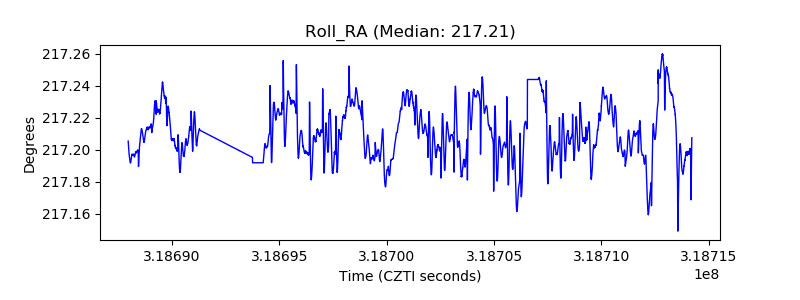

| _Roll_RA |  |

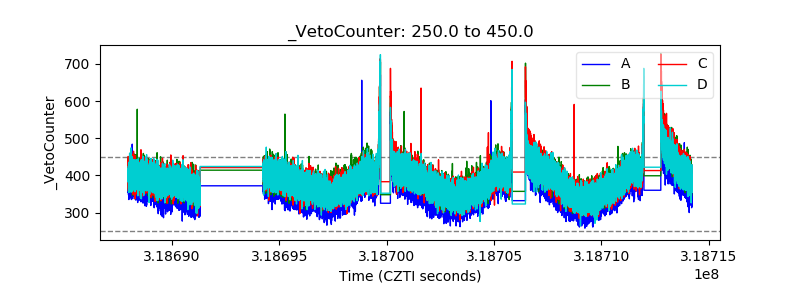

| Veto Counter |  |
