| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_011T01_9000003482_23577cztM0_level2.evt | modeM0/AS1A07_011T01_9000003482_23577cztM0_level2_quad_clean.evt |
| Size (bytes) | 546,249,600 | 119,885,760 |
| Size | 520.9 MB | 114.3 MB |
| Events in quadrant A | 3,667,710 | 783,329 |
| Events in quadrant B | 4,002,314 | 808,620 |
| Events in quadrant C | 3,932,949 | 761,702 |
| Events in quadrant D | 4,422,902 | 747,044 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 24 | 1 |
| D | 0 | 25 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 165 | 7 |
| B | 0 | 166 | 8 |
| C | 0 | 166 | 8 |
| D | 0 | 166 | 8 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16438 | 610 |
| B | 0 | 17467 | 643 |
| C | 0 | 17209 | 626 |
| D | 0 | 19179 | 638 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7619 | 26 | 0.341252% |
| B | 7613 | 65 | 0.853803% |
| C | 7616 | 186 | 2.442227% |
| D | 7626 | 156 | 2.045633% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 10117 | 7649 | 0 | 0 | 0.00% | 0.00% |  |
| B | 10020 | 7636 | 12 | 12 | 0.12% | 0.16% |  |
| C | 10022 | 7641 | 76 | 76 | 0.76% | 0.99% |  |
| D | 10025 | 7654 | 92 | 92 | 0.92% | 1.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12938 | 63.15 | 950 | 932 | 190.1 |
| A | 0 | 226 | 8321 | 38.87 | 950 | 932 | 190.1 |
| A | 3 | 137 | 8039 | 37.38 | 950 | 932 | 190.1 |
| B | 0 | 189 | 91801 | 515.34 | 949 | 928 | 176.3 |
| B | 0 | 230 | 59175 | 330.32 | 949 | 928 | 176.3 |
| B | 4 | 216 | 45042 | 250.17 | 949 | 928 | 176.3 |
| C | 0 | 10 | 238609 | 1139.78 | 902 | 912 | 208.5 |
| C | 14 | 238 | 143145 | 682.02 | 902 | 912 | 208.5 |
| C | 10 | 9 | 13922 | 62.38 | 902 | 912 | 208.5 |
| D | 1 | 52 | 581985 | 2608.19 | 915 | 888 | 222.8 |
| D | 12 | 233 | 209383 | 935.81 | 915 | 888 | 222.8 |
| D | 9 | 85 | 81004 | 359.59 | 915 | 888 | 222.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

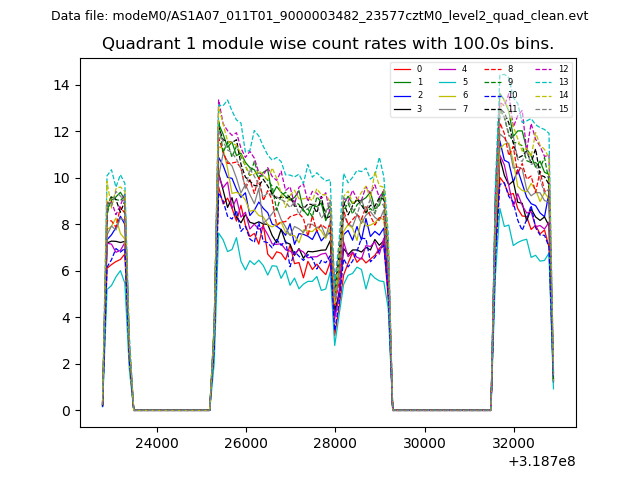

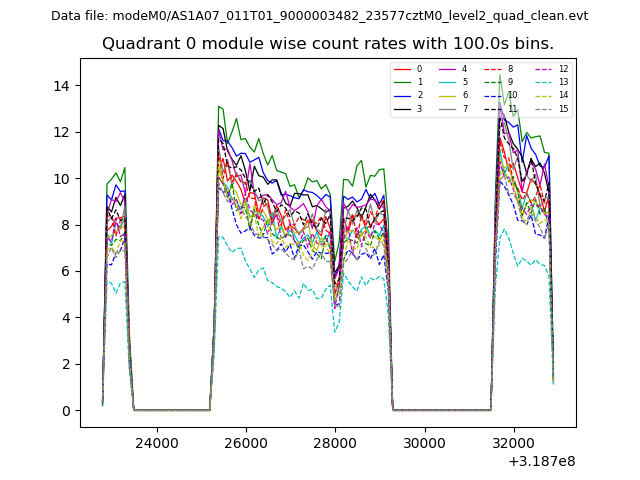

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

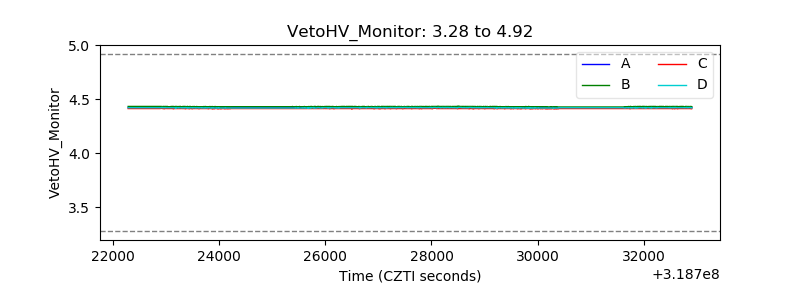

| Veto HV Monitor |  |

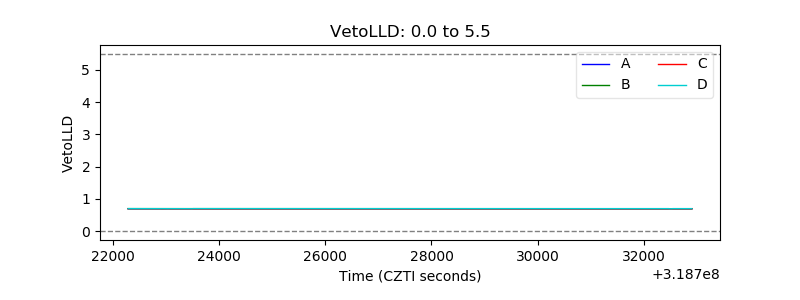

| Veto LLD |  |

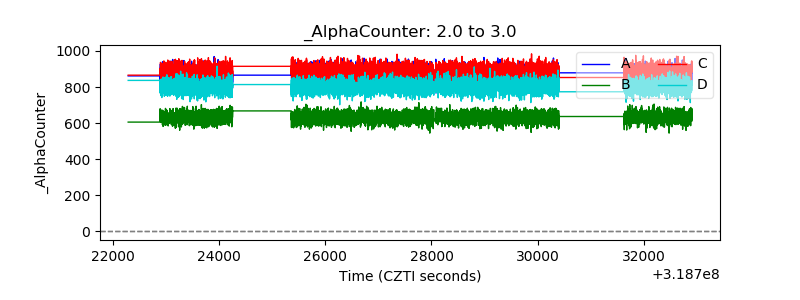

| Alpha Counter |  |
| _CPM_Rate |  |

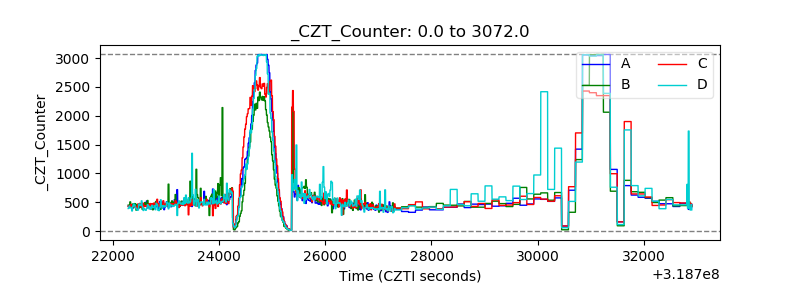

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

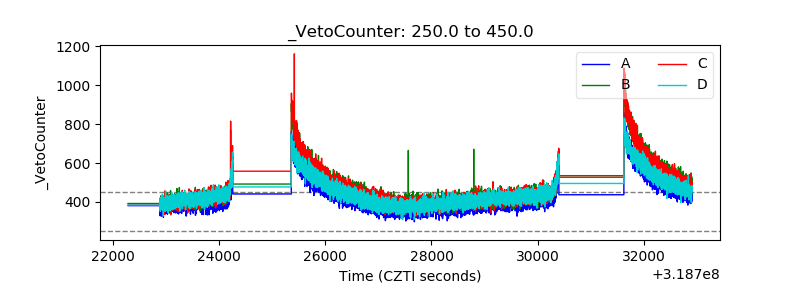

| Veto Counter |  |
