| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_054T01_9000003486_23591cztM0_level2.evt | modeM0/AS1A07_054T01_9000003486_23591cztM0_level2_quad_clean.evt |
| Size (bytes) | 479,698,560 | 117,711,360 |
| Size | 457.5 MB | 112.3 MB |
| Events in quadrant A | 2,782,522 | 813,314 |
| Events in quadrant B | 4,184,675 | 794,412 |
| Events in quadrant C | 2,971,866 | 788,903 |
| Events in quadrant D | 4,184,558 | 752,721 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 4 |
| B | 0 | 123 | 1 |
| C | 0 | 123 | 1 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 1 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12792 | 468 |
| B | 0 | 17137 | 563 |
| C | 0 | 13276 | 463 |
| D | 0 | 17288 | 797 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5955 | 10 | 0.167926% |
| B | 5949 | 533 | 8.959489% |
| C | 5950 | 92 | 1.546218% |
| D | 5939 | 140 | 2.357299% |

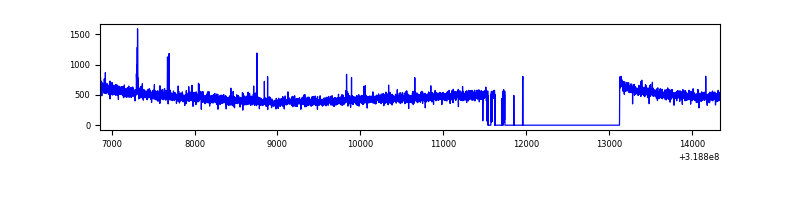

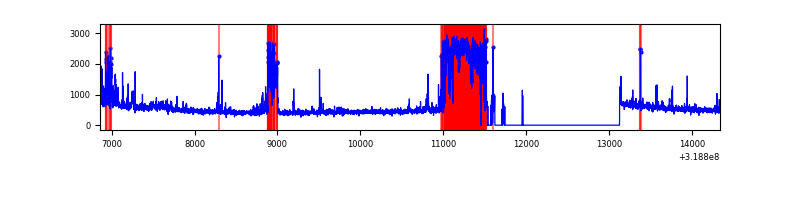

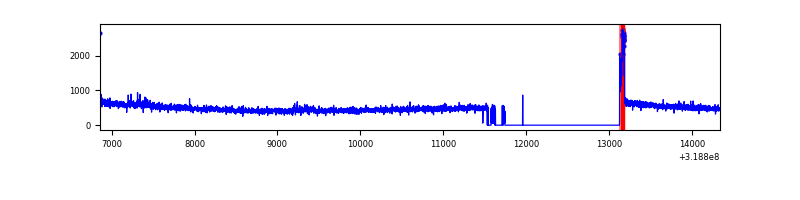

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7476 | 5977 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7476 | 5963 | 442 | 442 | 5.91% | 7.41% |  |
| C | 7476 | 5972 | 29 | 29 | 0.39% | 0.49% |  |
| D | 7475 | 5953 | 92 | 92 | 1.23% | 1.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 25680 | 177.64 | 713 | 700 | 140.6 |
| A | 13 | 254 | 10884 | 72.42 | 713 | 700 | 140.6 |
| A | 3 | 137 | 6145 | 38.72 | 713 | 700 | 140.6 |
| B | 3 | 64 | 1230500 | 9524.06 | 691 | 674 | 129.1 |
| B | 0 | 189 | 152112 | 1172.77 | 691 | 674 | 129.1 |
| B | 0 | 230 | 55957 | 428.12 | 691 | 674 | 129.1 |
| C | 0 | 10 | 135664 | 851.79 | 686 | 692 | 158.5 |
| C | 14 | 238 | 109469 | 686.48 | 686 | 692 | 158.5 |
| C | 10 | 9 | 20368 | 124.17 | 686 | 692 | 158.5 |
| D | 1 | 52 | 717254 | 4350.36 | 686 | 665 | 164.7 |
| D | 9 | 85 | 370690 | 2246.39 | 686 | 665 | 164.7 |
| D | 7 | 223 | 246073 | 1489.85 | 686 | 665 | 164.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

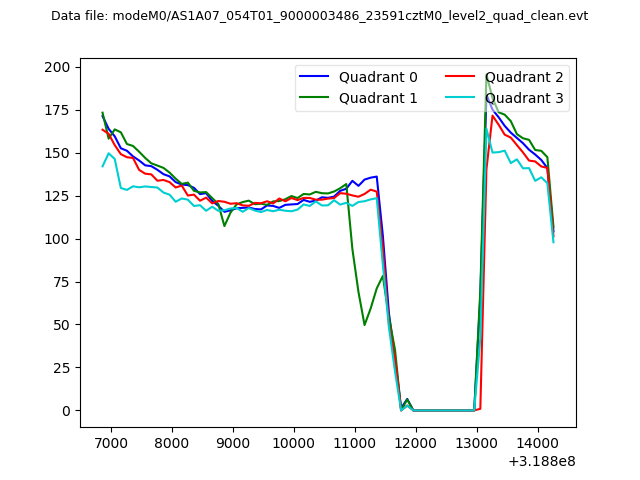

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

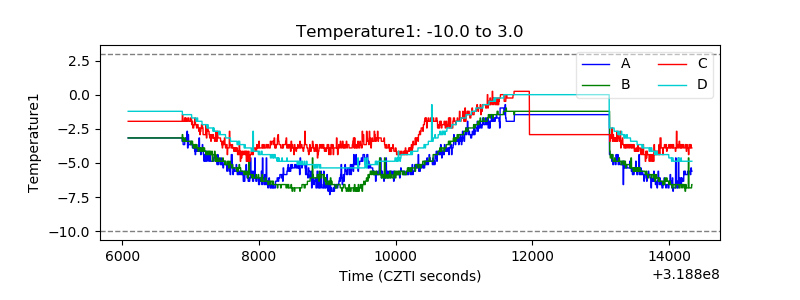

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

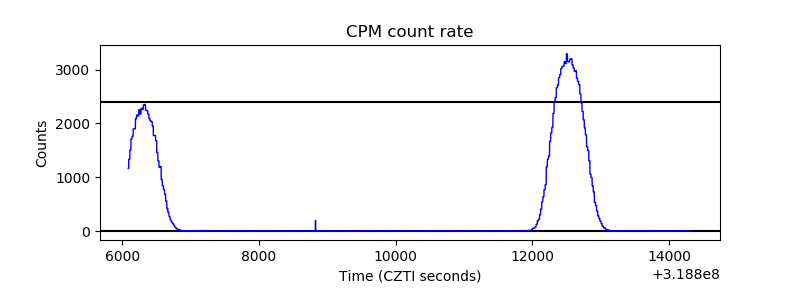

| _CPM_Rate |  |

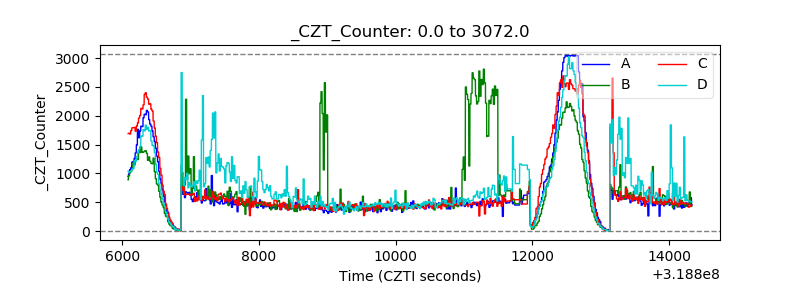

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

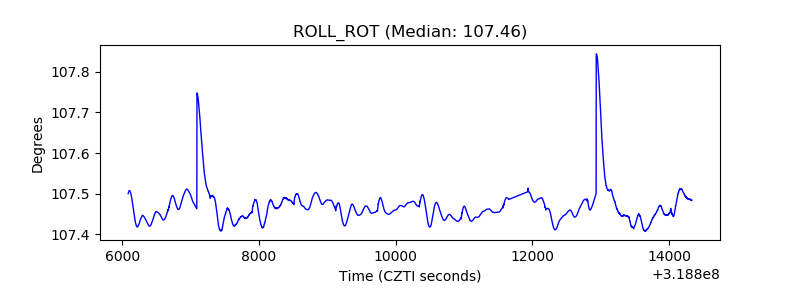

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
