| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_054T01_9000003486_23595cztM0_level2.evt | modeM0/AS1A07_054T01_9000003486_23595cztM0_level2_quad_clean.evt |
| Size (bytes) | 464,685,120 | 118,667,520 |
| Size | 443.2 MB | 113.2 MB |
| Events in quadrant A | 2,819,853 | 826,161 |
| Events in quadrant B | 3,430,684 | 833,412 |
| Events in quadrant C | 3,814,575 | 754,756 |
| Events in quadrant D | 3,604,461 | 764,686 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12156 | 1 |
| B | 0 | 13910 | 1 |
| C | 0 | 15113 | 1 |
| D | 0 | 14750 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5941 | 29 | 0.488133% |
| B | 5941 | 184 | 3.097122% |
| C | 5941 | 467 | 7.860630% |
| D | 5942 | 99 | 1.666106% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7201 | 5941 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7201 | 5941 | 65 | 65 | 0.90% | 1.09% |  |
| C | 7201 | 5941 | 383 | 383 | 5.32% | 6.45% |  |
| D | 7202 | 5943 | 70 | 70 | 0.97% | 1.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 13714 | 89.97 | 727 | 712 | 144.5 |
| A | 13 | 254 | 11174 | 72.39 | 727 | 712 | 144.5 |
| A | 0 | 226 | 6496 | 40.02 | 727 | 712 | 144.5 |
| B | 3 | 64 | 496930 | 3724.58 | 718 | 701 | 133.2 |
| B | 0 | 189 | 62386 | 462.99 | 718 | 701 | 133.2 |
| B | 0 | 230 | 21878 | 158.95 | 718 | 701 | 133.2 |
| C | 10 | 9 | 1020866 | 6652.41 | 662 | 667 | 153.4 |
| C | 14 | 238 | 107349 | 695.64 | 662 | 667 | 153.4 |
| C | 0 | 10 | 93094 | 602.69 | 662 | 667 | 153.4 |
| D | 1 | 52 | 602542 | 3635.02 | 689 | 667 | 165.6 |
| D | 7 | 223 | 314392 | 1894.74 | 689 | 667 | 165.6 |
| D | 2 | 234 | 23472 | 137.73 | 689 | 667 | 165.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

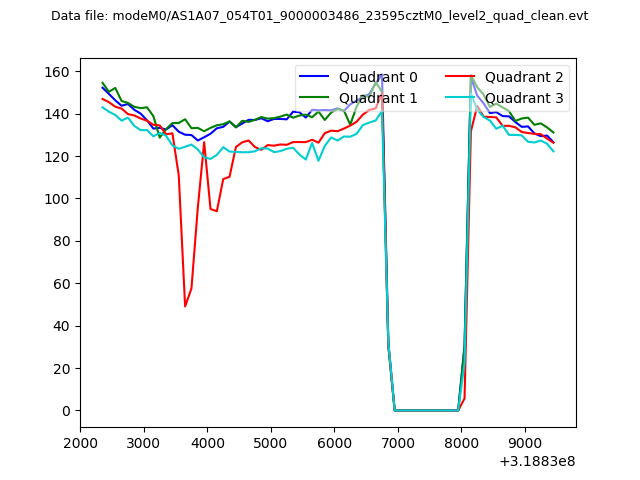

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

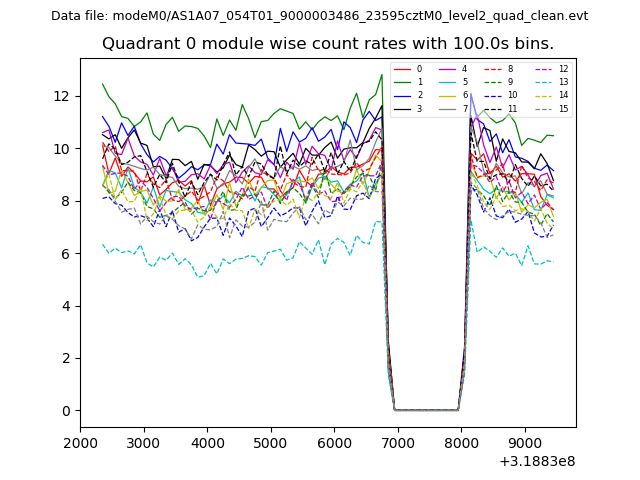

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

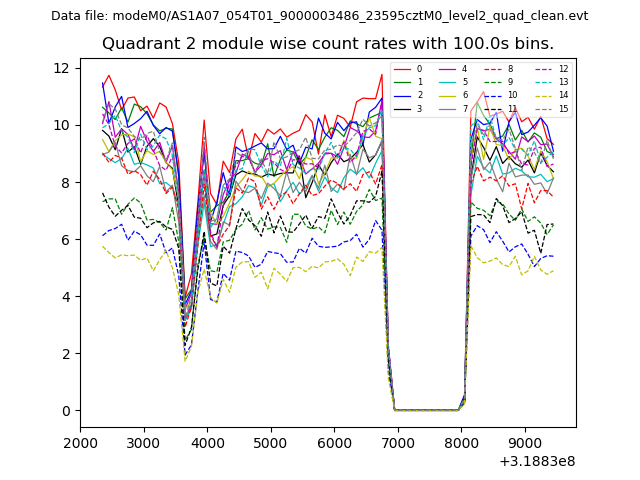

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

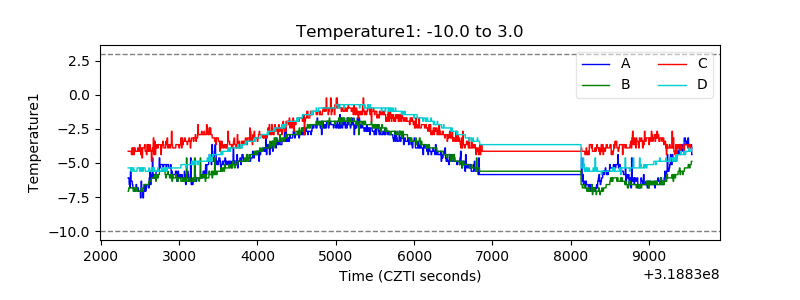

| Temperature 1 |  |
| Veto HV Monitor |  |

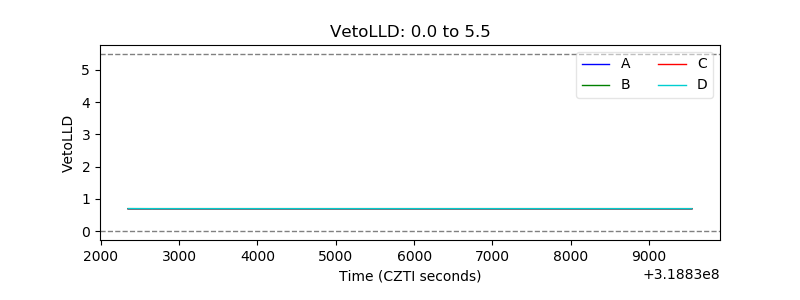

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

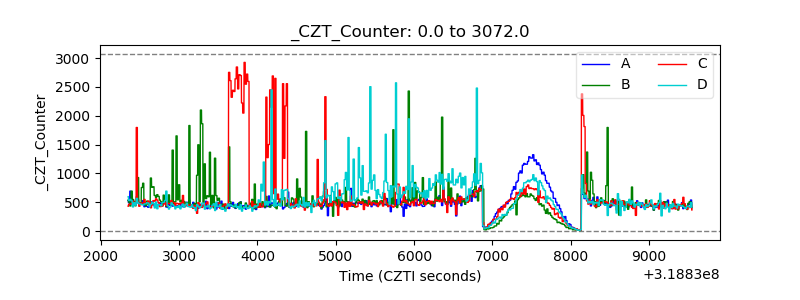

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

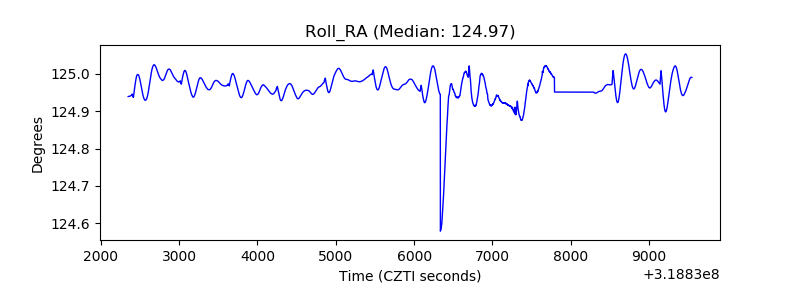

| _Roll_RA |  |

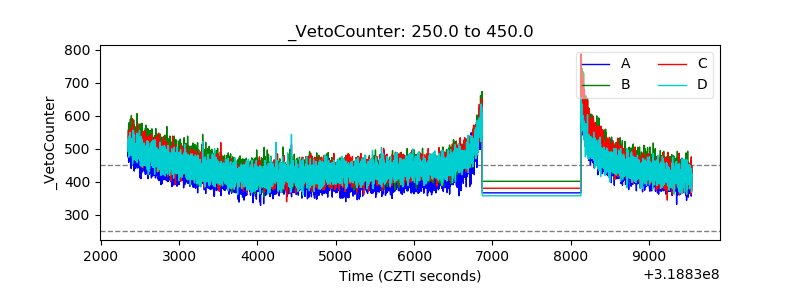

| Veto Counter |  |
