| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_054T01_9000003486_23598cztM0_level2.evt | modeM0/AS1A07_054T01_9000003486_23598cztM0_level2_quad_clean.evt |
| Size (bytes) | 525,182,400 | 144,711,360 |
| Size | 500.9 MB | 138.0 MB |
| Events in quadrant A | 3,573,946 | 988,835 |
| Events in quadrant B | 4,110,409 | 989,881 |
| Events in quadrant C | 3,617,996 | 939,788 |
| Events in quadrant D | 4,072,503 | 921,746 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15915 | 1 |
| B | 0 | 17147 | 1 |
| C | 0 | 15969 | 1 |
| D | 0 | 17538 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7805 | 157 | 2.011531% |
| B | 7805 | 215 | 2.754644% |
| C | 7805 | 173 | 2.216528% |
| D | 7805 | 227 | 2.908392% |

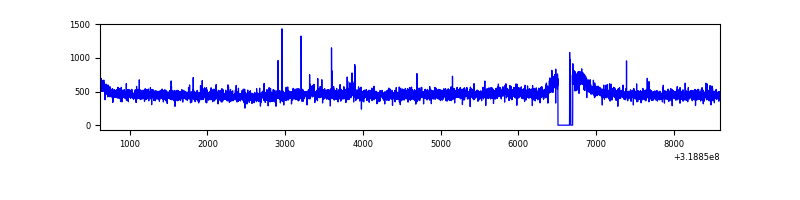

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7980 | 7805 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7980 | 7806 | 31 | 31 | 0.39% | 0.40% |  |
| C | 7980 | 7806 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7980 | 7806 | 116 | 116 | 1.45% | 1.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 13604 | 68.19 | 926 | 904 | 186.2 |
| A | 3 | 137 | 8137 | 38.84 | 926 | 904 | 186.2 |
| A | 0 | 226 | 7902 | 37.57 | 926 | 904 | 186.2 |
| B | 3 | 64 | 226368 | 1292.95 | 915 | 890 | 174.4 |
| B | 0 | 189 | 147002 | 837.84 | 915 | 890 | 174.4 |
| B | 0 | 230 | 41454 | 232.6 | 915 | 890 | 174.4 |
| C | 14 | 238 | 139746 | 683.7 | 875 | 878 | 203.1 |
| C | 7 | 247 | 20210 | 95.18 | 875 | 878 | 203.1 |
| C | 8 | 128 | 16194 | 75.41 | 875 | 878 | 203.1 |
| D | 1 | 52 | 563848 | 2617.43 | 886 | 860 | 215.1 |
| D | 12 | 233 | 89530 | 412.24 | 886 | 860 | 215.1 |
| D | 2 | 234 | 31995 | 144.75 | 886 | 860 | 215.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

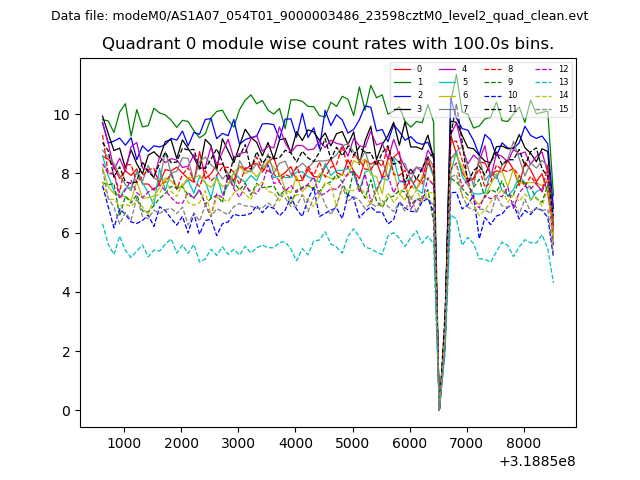

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

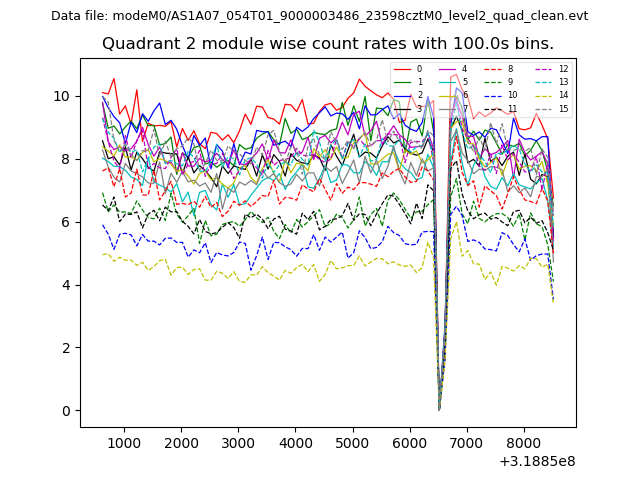

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

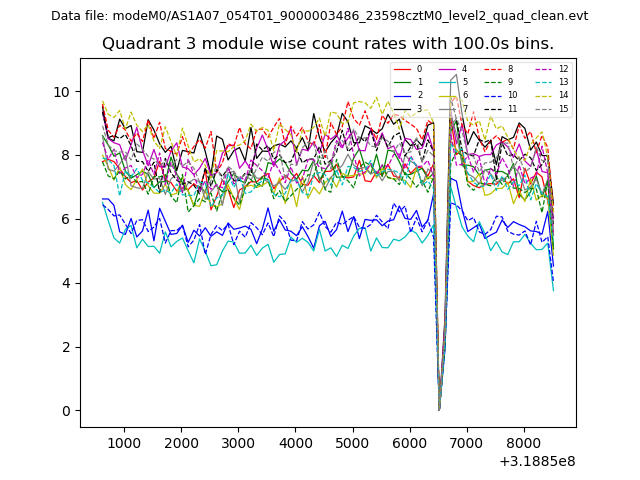

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

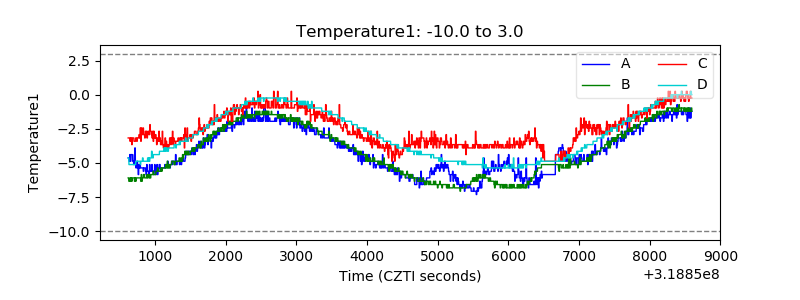

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

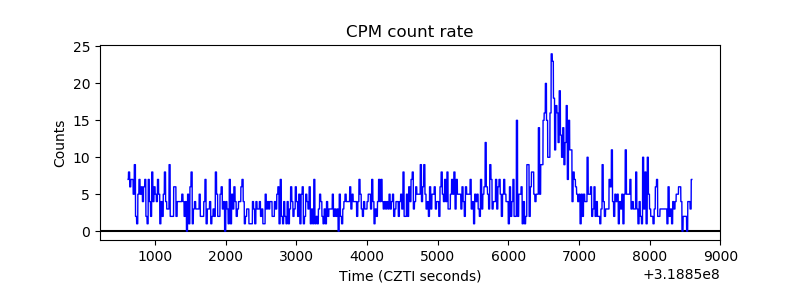

| _CPM_Rate |  |

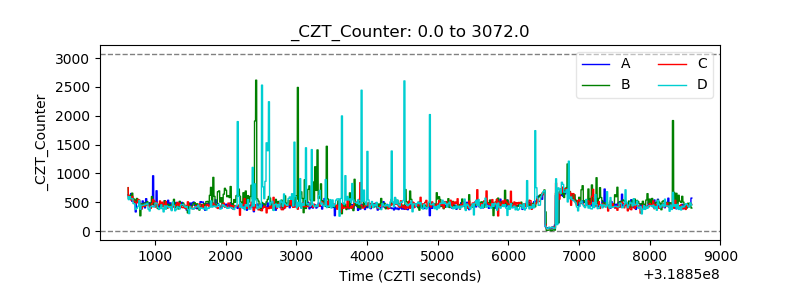

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

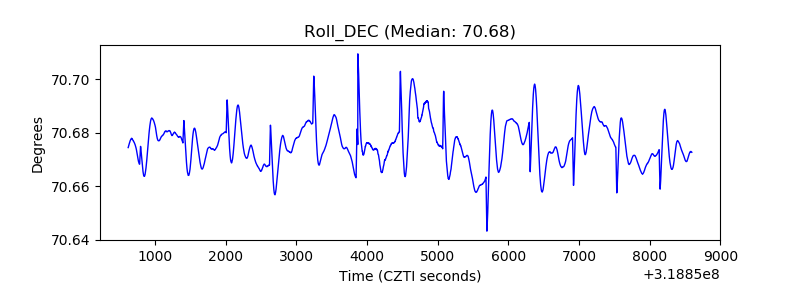

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
