| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_178T01_9000003488_23609cztM0_level2.evt | modeM0/AS1T03_178T01_9000003488_23609cztM0_level2_quad_clean.evt |
| Size (bytes) | 519,497,280 | 86,872,320 |
| Size | 495.4 MB | 82.8 MB |
| Events in quadrant A | 3,180,565 | 561,787 |
| Events in quadrant B | 3,394,026 | 584,817 |
| Events in quadrant C | 3,665,161 | 559,850 |
| Events in quadrant D | 5,074,152 | 492,633 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12980 | 2 |
| B | 0 | 13587 | 2 |
| C | 0 | 14611 | 2 |
| D | 0 | 19032 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6186 | 51 | 0.824442% |
| B | 6186 | 122 | 1.972195% |
| C | 6186 | 131 | 2.117685% |
| D | 6185 | 623 | 10.072757% |

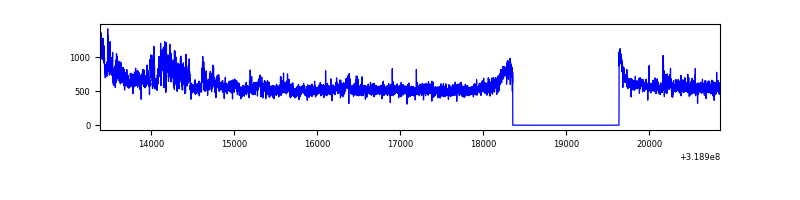

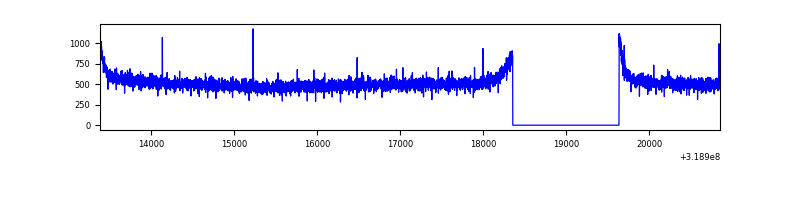

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7466 | 6186 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7466 | 6186 | 24 | 24 | 0.32% | 0.39% |  |
| C | 7466 | 6186 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7465 | 6186 | 509 | 509 | 6.82% | 8.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9565 | 53.35 | 825 | 808 | 164.1 |
| A | 0 | 226 | 6868 | 36.92 | 825 | 808 | 164.1 |
| A | 3 | 137 | 6787 | 36.43 | 825 | 808 | 164.1 |
| B | 3 | 64 | 82822 | 525.92 | 834 | 812 | 155.9 |
| B | 0 | 228 | 28936 | 180.35 | 834 | 812 | 155.9 |
| B | 12 | 111 | 18621 | 114.2 | 834 | 812 | 155.9 |
| C | 10 | 9 | 320058 | 1704.09 | 818 | 827 | 187.3 |
| C | 14 | 238 | 130841 | 694.03 | 818 | 827 | 187.3 |
| C | 0 | 10 | 10218 | 50.13 | 818 | 827 | 187.3 |
| D | 1 | 52 | 2125127 | 11416.88 | 775 | 754 | 186.1 |
| D | 9 | 85 | 22917 | 119.11 | 775 | 754 | 186.1 |
| D | 2 | 234 | 22663 | 117.74 | 775 | 754 | 186.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

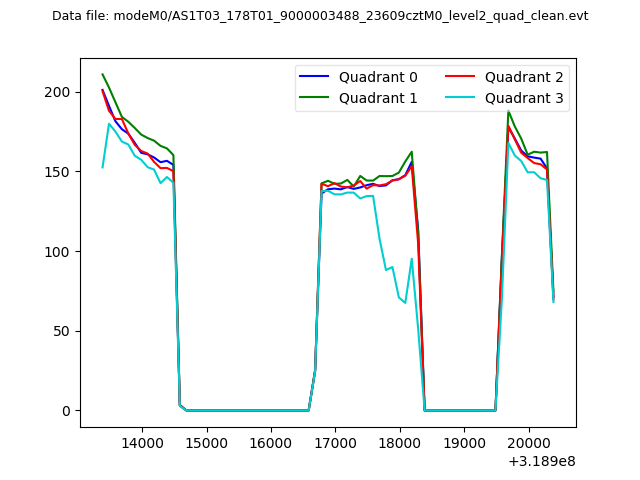

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

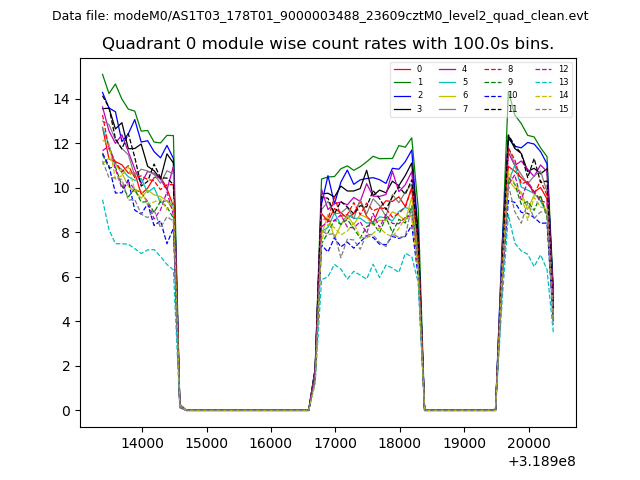

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

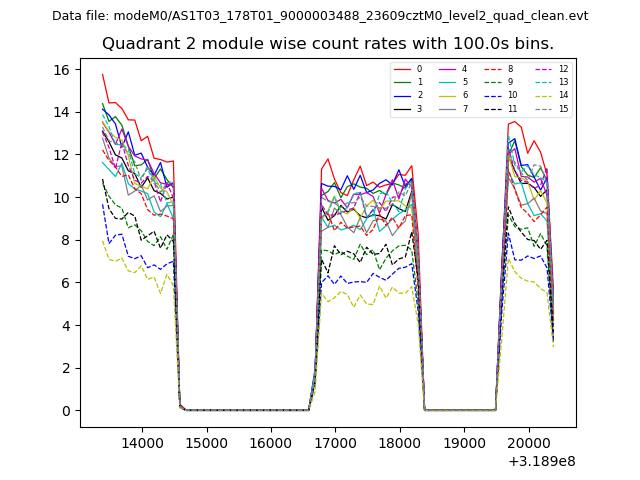

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

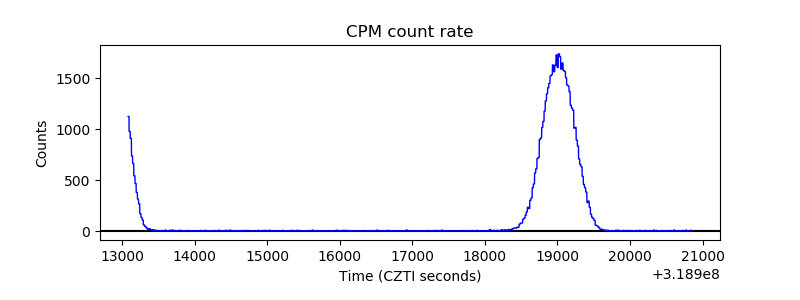

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

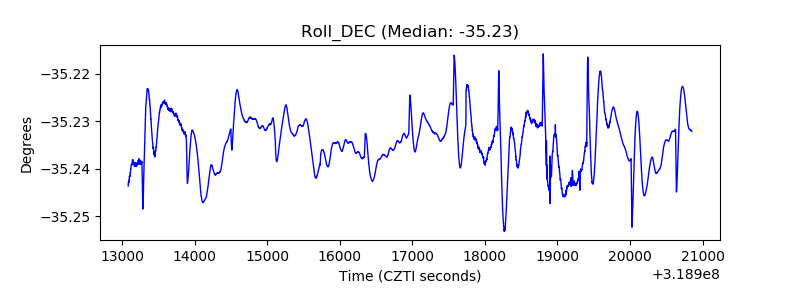

| _Roll_DEC |  |

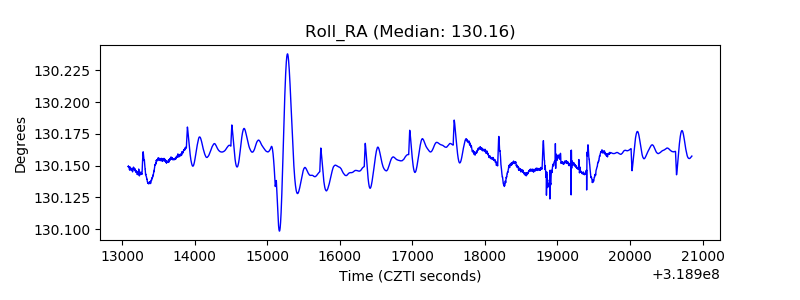

| _Roll_RA |  |
| Veto Counter |  |
