| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_147T01_9000003490_23636cztM0_level2.evt | modeM0/AS1A07_147T01_9000003490_23636cztM0_level2_quad_clean.evt |
| Size (bytes) | 527,189,760 | 107,968,320 |
| Size | 502.8 MB | 103.0 MB |
| Events in quadrant A | 3,274,778 | 719,162 |
| Events in quadrant B | 3,901,771 | 745,265 |
| Events in quadrant C | 3,384,170 | 696,374 |
| Events in quadrant D | 4,965,234 | 656,515 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13710 | 2 |
| B | 0 | 15753 | 2 |
| C | 0 | 13983 | 2 |
| D | 0 | 19150 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6486 | 23 | 0.354610% |
| B | 6486 | 196 | 3.021893% |
| C | 6485 | 79 | 1.218196% |
| D | 6485 | 499 | 7.694680% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7796 | 6487 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7796 | 6486 | 110 | 110 | 1.41% | 1.70% |  |
| C | 7795 | 6485 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7795 | 6486 | 477 | 477 | 6.12% | 7.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9784 | 52.43 | 850 | 833 | 170.7 |
| A | 0 | 226 | 7247 | 37.57 | 850 | 833 | 170.7 |
| A | 3 | 137 | 7033 | 36.31 | 850 | 833 | 170.7 |
| B | 3 | 64 | 472591 | 2951.52 | 850 | 829 | 159.8 |
| B | 0 | 189 | 52659 | 324.27 | 850 | 829 | 159.8 |
| B | 0 | 229 | 31002 | 188.77 | 850 | 829 | 159.8 |
| C | 14 | 238 | 131211 | 681.14 | 815 | 823 | 191.4 |
| C | 7 | 247 | 40007 | 204.7 | 815 | 823 | 191.4 |
| C | 10 | 91 | 24019 | 121.17 | 815 | 823 | 191.4 |
| D | 1 | 52 | 1630739 | 8413.96 | 799 | 775 | 193.7 |
| D | 12 | 233 | 152954 | 785.56 | 799 | 775 | 193.7 |
| D | 9 | 85 | 90567 | 463.51 | 799 | 775 | 193.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

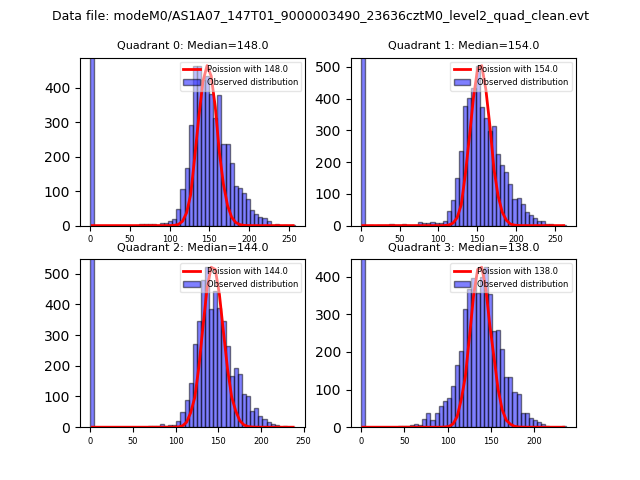

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

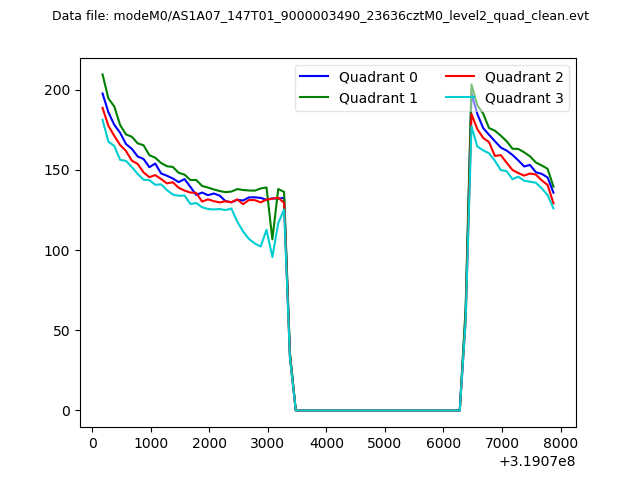

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
