| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_147T01_9000003490_23640cztM0_level2.evt | modeM0/AS1A07_147T01_9000003490_23640cztM0_level2_quad_clean.evt |
| Size (bytes) | 545,166,720 | 84,101,760 |
| Size | 519.9 MB | 80.2 MB |
| Events in quadrant A | 3,140,313 | 532,650 |
| Events in quadrant B | 3,790,315 | 545,176 |
| Events in quadrant C | 3,216,530 | 520,730 |
| Events in quadrant D | 5,928,613 | 501,260 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13304 | 1 |
| B | 0 | 15132 | 1 |
| C | 0 | 13417 | 1 |
| D | 0 | 21988 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6398 | 95 | 1.484839% |
| B | 6398 | 305 | 4.767115% |
| C | 6399 | 119 | 1.859666% |
| D | 6399 | 841 | 13.142679% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7138 | 6398 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7138 | 6398 | 203 | 203 | 2.84% | 3.17% |  |
| C | 7139 | 6399 | 22 | 22 | 0.31% | 0.34% |  |
| D | 7139 | 6399 | 740 | 740 | 10.37% | 11.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 98872 | 614.99 | 789 | 772 | 159.5 |
| A | 13 | 254 | 9300 | 53.46 | 789 | 772 | 159.5 |
| A | 3 | 137 | 7012 | 39.12 | 789 | 772 | 159.5 |
| B | 3 | 64 | 590243 | 3980.64 | 770 | 750 | 148.1 |
| B | 0 | 189 | 97219 | 651.42 | 770 | 750 | 148.1 |
| B | 0 | 229 | 58530 | 390.17 | 770 | 750 | 148.1 |
| C | 10 | 9 | 124470 | 696.11 | 754 | 759 | 177.7 |
| C | 14 | 238 | 119208 | 666.5 | 754 | 759 | 177.7 |
| C | 7 | 247 | 17342 | 93.31 | 754 | 759 | 177.7 |
| D | 12 | 233 | 2026698 | 11459.13 | 730 | 708 | 176.8 |
| D | 1 | 52 | 1124961 | 6358.85 | 730 | 708 | 176.8 |
| D | 2 | 234 | 24307 | 133.48 | 730 | 708 | 176.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

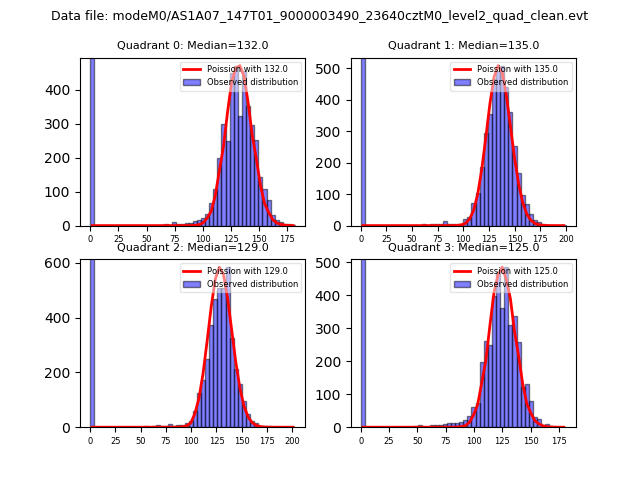

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

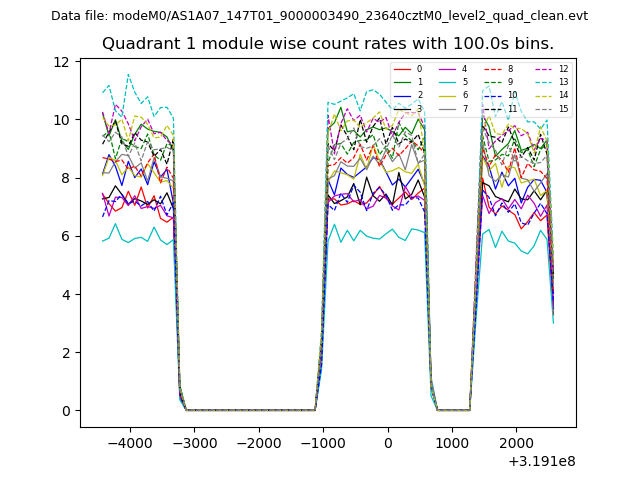

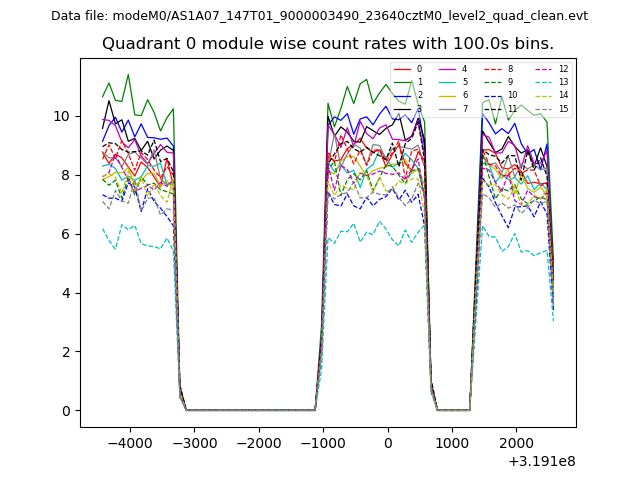

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

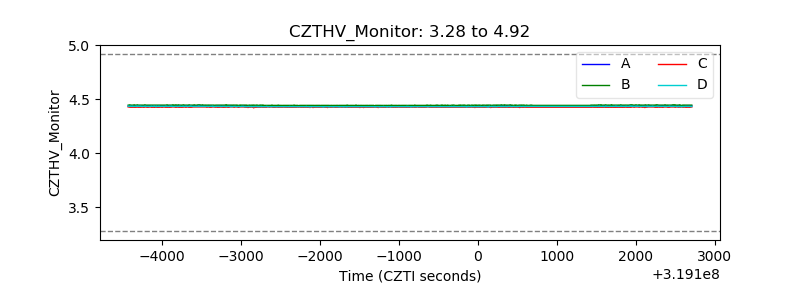

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

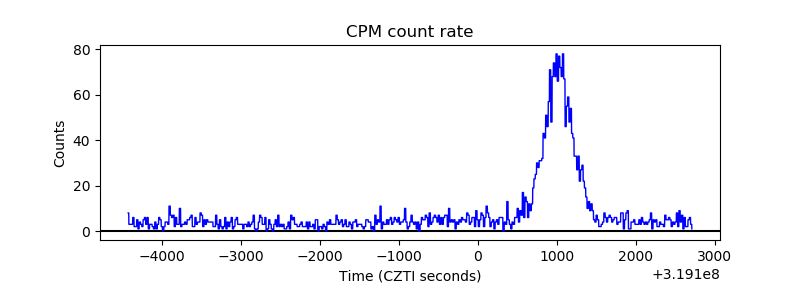

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
