| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_147T01_9000003490_23642cztM0_level2.evt | modeM0/AS1A07_147T01_9000003490_23642cztM0_level2_quad_clean.evt |
| Size (bytes) | 561,110,400 | 81,002,880 |
| Size | 535.1 MB | 77.3 MB |
| Events in quadrant A | 3,438,770 | 496,961 |
| Events in quadrant B | 5,314,413 | 491,652 |
| Events in quadrant C | 3,502,036 | 486,213 |
| Events in quadrant D | 4,250,899 | 477,976 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14813 | 0 |
| B | 0 | 20346 | 0 |
| C | 0 | 14844 | 0 |
| D | 0 | 17479 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7180 | 164 | 2.284123% |
| B | 7180 | 802 | 11.169916% |
| C | 7181 | 197 | 2.743351% |
| D | 7181 | 301 | 4.191617% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7410 | 7180 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7409 | 7179 | 464 | 464 | 6.26% | 6.46% |  |
| C | 7411 | 7181 | 3 | 3 | 0.04% | 0.04% |  |
| D | 7411 | 7181 | 163 | 163 | 2.20% | 2.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12009 | 61.64 | 890 | 871 | 180.7 |
| A | 3 | 137 | 8232 | 40.73 | 890 | 871 | 180.7 |
| A | 0 | 226 | 7676 | 37.66 | 890 | 871 | 180.7 |
| B | 3 | 64 | 1600774 | 9693.48 | 846 | 825 | 165.1 |
| B | 0 | 229 | 185470 | 1118.69 | 846 | 825 | 165.1 |
| B | 0 | 189 | 141522 | 852.43 | 846 | 825 | 165.1 |
| C | 14 | 238 | 131907 | 647.18 | 851 | 856 | 202.5 |
| C | 10 | 91 | 22566 | 107.21 | 851 | 856 | 202.5 |
| C | 8 | 128 | 11291 | 51.53 | 851 | 856 | 202.5 |
| D | 12 | 233 | 561574 | 2648.73 | 861 | 834 | 211.7 |
| D | 13 | 249 | 162968 | 765.86 | 861 | 834 | 211.7 |
| D | 13 | 172 | 88775 | 415.4 | 861 | 834 | 211.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

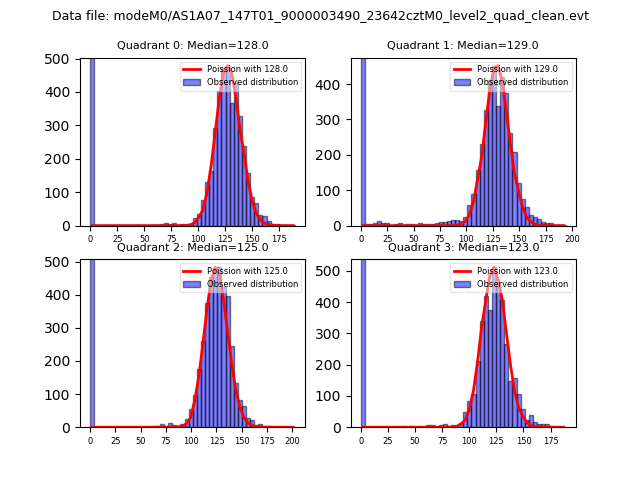

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

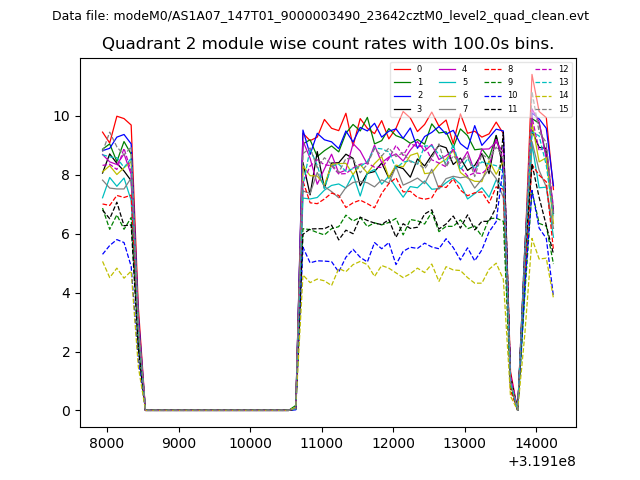

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

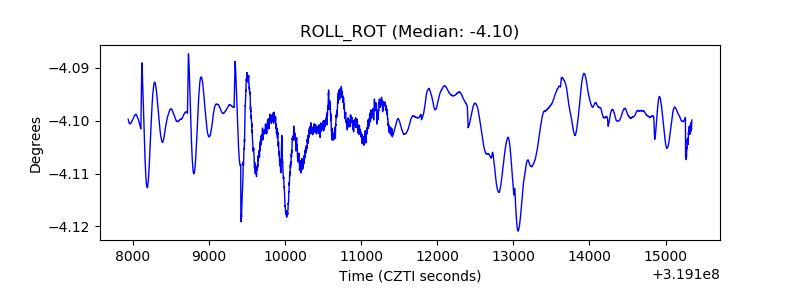

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

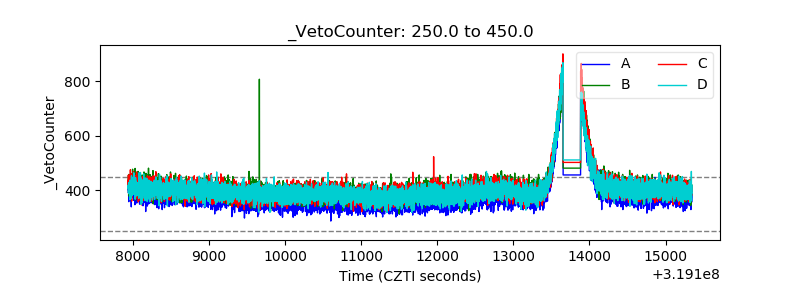

| Veto Counter |  |
