| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_091T04_9000003492_23651cztM0_level2.evt | modeM0/AS1A07_091T04_9000003492_23651cztM0_level2_quad_clean.evt |
| Size (bytes) | 991,068,480 | 219,510,720 |
| Size | 945.2 MB | 209.3 MB |
| Events in quadrant A | 6,680,048 | 1,429,921 |
| Events in quadrant B | 8,229,084 | 1,480,533 |
| Events in quadrant C | 6,903,311 | 1,423,584 |
| Events in quadrant D | 7,269,916 | 1,363,334 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37 | 0 |
| B | 0 | 37 | 0 |
| C | 0 | 37 | 0 |
| D | 0 | 37 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28732 | 3 |
| B | 0 | 33490 | 5 |
| C | 0 | 29402 | 3 |
| D | 0 | 31205 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 282 | 0 |
| B | 0 | 282 | 0 |
| C | 0 | 282 | 0 |
| D | 0 | 282 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 13781 | 77 | 0.558740% |
| B | 13779 | 402 | 2.917483% |
| C | 13780 | 214 | 1.552975% |
| D | 13780 | 317 | 2.300435% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 17531 | 13783 | 0 | 0 | 0.00% | 0.00% |  |
| B | 17530 | 13781 | 145 | 145 | 0.83% | 1.05% |  |
| C | 17530 | 13782 | 7 | 7 | 0.04% | 0.05% |  |
| D | 17530 | 13781 | 199 | 199 | 1.14% | 1.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 22274 | 59.63 | 1734 | 1703 | 345.0 |
| A | 3 | 137 | 14739 | 37.79 | 1734 | 1703 | 345.0 |
| A | 0 | 226 | 14624 | 37.45 | 1734 | 1703 | 345.0 |
| B | 0 | 229 | 925923 | 2894.01 | 1730 | 1688 | 319.4 |
| B | 3 | 64 | 258713 | 804.81 | 1730 | 1688 | 319.4 |
| B | 0 | 189 | 210779 | 654.72 | 1730 | 1688 | 319.4 |
| C | 14 | 238 | 270071 | 695.76 | 1675 | 1688 | 385.7 |
| C | 3 | 233 | 47349 | 118.37 | 1675 | 1688 | 385.7 |
| C | 7 | 247 | 40013 | 99.35 | 1675 | 1688 | 385.7 |
| D | 9 | 85 | 376434 | 936.74 | 1668 | 1620 | 400.1 |
| D | 12 | 233 | 255748 | 635.12 | 1668 | 1620 | 400.1 |
| D | 13 | 189 | 191764 | 475.21 | 1668 | 1620 | 400.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

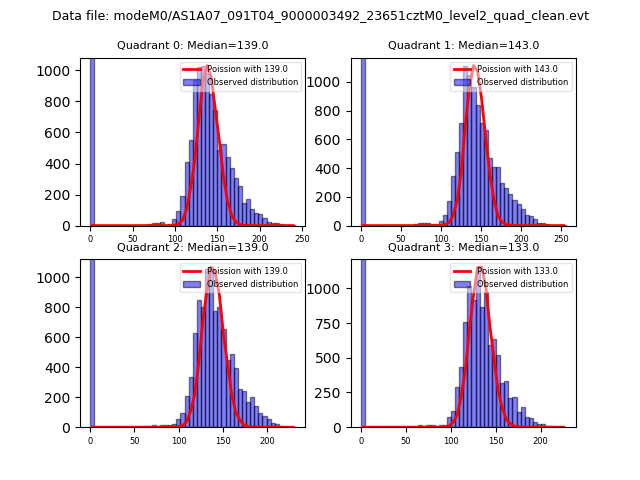

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

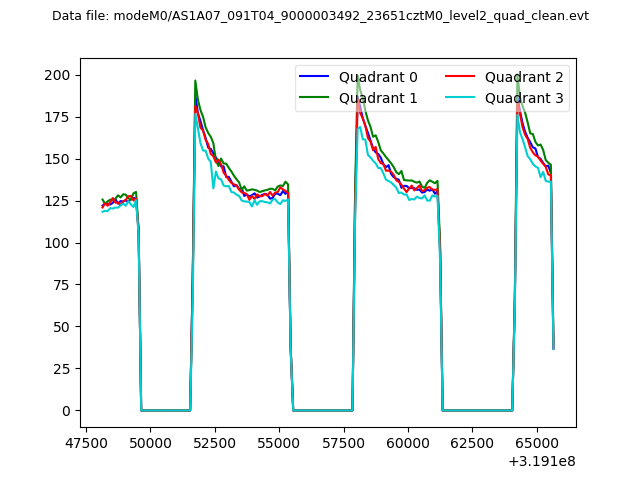

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

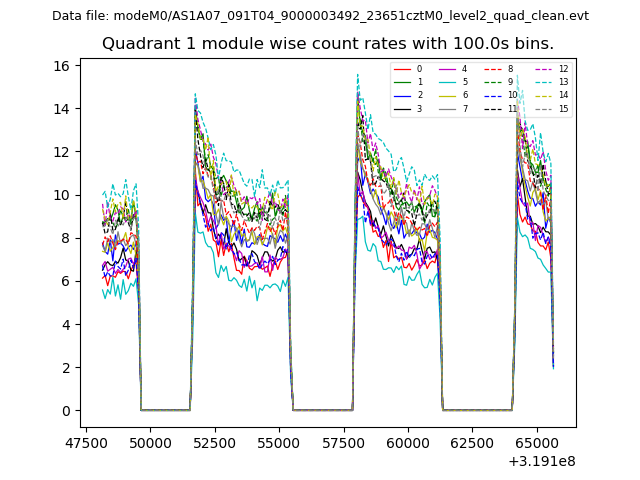

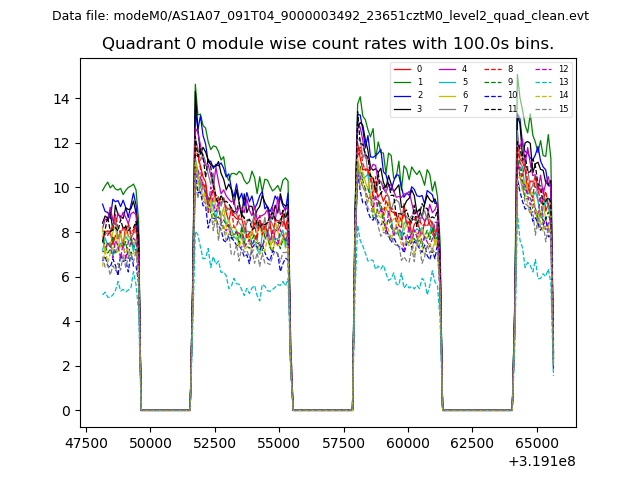

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

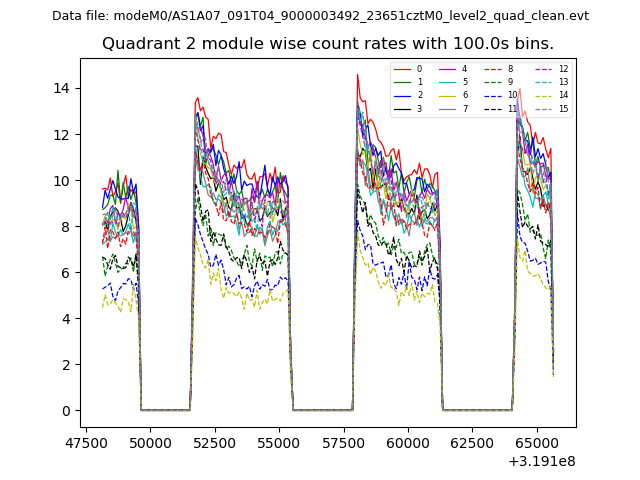

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

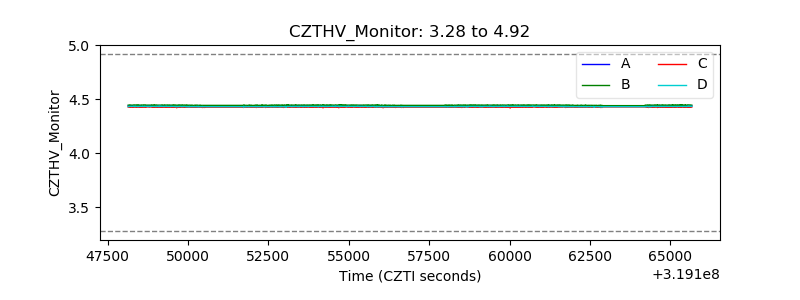

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

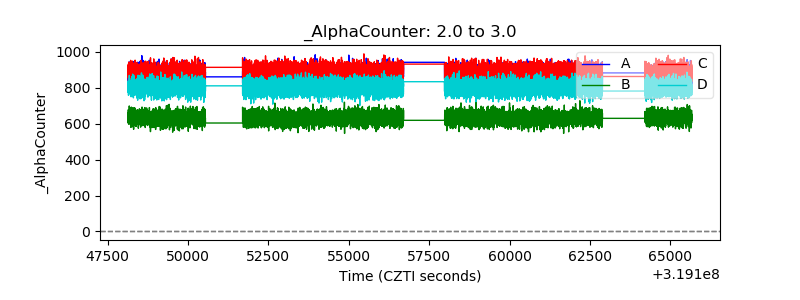

| Alpha Counter |  |

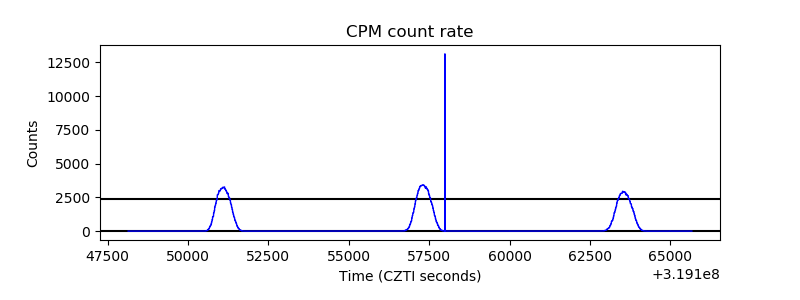

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

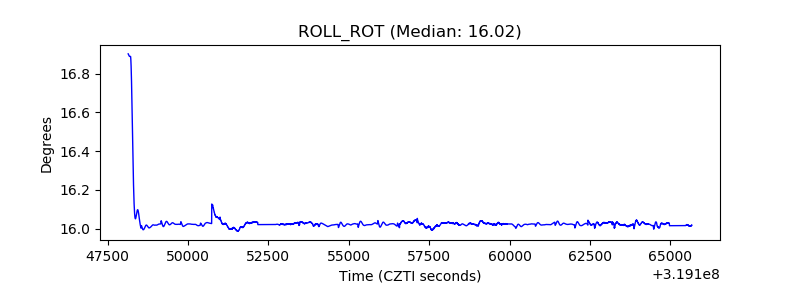

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

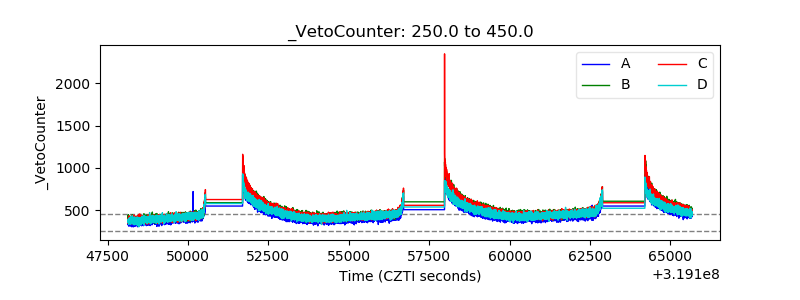

| Veto Counter |  |
