| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_004T02_9000003496_23663cztM0_level2.evt | modeM0/AS1A08_004T02_9000003496_23663cztM0_level2_quad_clean.evt |
| Size (bytes) | 295,623,360 | 54,864,000 |
| Size | 281.9 MB | 52.3 MB |
| Events in quadrant A | 1,892,302 | 353,576 |
| Events in quadrant B | 2,118,626 | 361,634 |
| Events in quadrant C | 1,945,405 | 345,395 |
| Events in quadrant D | 2,728,778 | 323,440 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8121 | 1 |
| B | 0 | 8739 | 13 |
| C | 0 | 8133 | 14 |
| D | 0 | 10983 | 36 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 80 | 0 |
| B | 0 | 80 | 0 |
| C | 0 | 80 | 0 |
| D | 0 | 80 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3931 | 6 | 0.152633% |
| B | 3927 | 16 | 0.407436% |
| C | 3926 | 28 | 0.713194% |
| D | 3921 | 116 | 2.958429% |

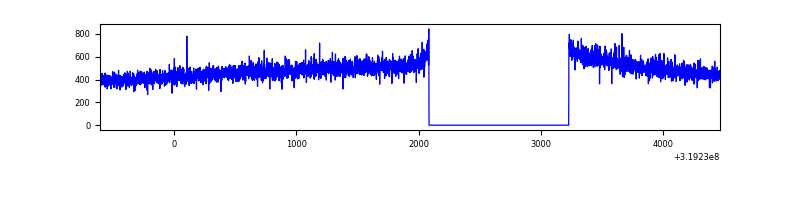

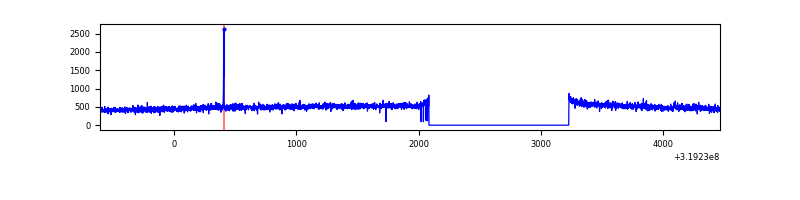

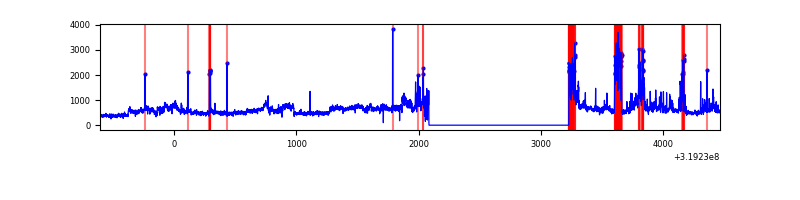

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5076 | 3932 | 0 | 0 | 0.00% | 0.00% |  |
| B | 5076 | 3932 | 4 | 4 | 0.08% | 0.10% |  |
| C | 5076 | 3932 | 1 | 1 | 0.02% | 0.03% |  |
| D | 5075 | 3931 | 106 | 106 | 2.09% | 2.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 6915 | 64.22 | 490 | 480 | 100.2 |
| A | 3 | 137 | 4345 | 38.57 | 490 | 480 | 100.2 |
| A | 0 | 226 | 4184 | 36.96 | 490 | 480 | 100.2 |
| B | 0 | 229 | 78198 | 831.27 | 491 | 479 | 93.5 |
| B | 3 | 64 | 66840 | 709.79 | 491 | 479 | 93.5 |
| B | 0 | 189 | 19787 | 206.51 | 491 | 479 | 93.5 |
| C | 14 | 238 | 76816 | 688.87 | 473 | 475 | 110.8 |
| C | 7 | 247 | 17570 | 154.26 | 473 | 475 | 110.8 |
| C | 2 | 16 | 8227 | 69.95 | 473 | 475 | 110.8 |
| D | 1 | 52 | 698584 | 6169.1 | 466 | 452 | 113.2 |
| D | 9 | 85 | 75701 | 664.94 | 466 | 452 | 113.2 |
| D | 12 | 233 | 65431 | 574.19 | 466 | 452 | 113.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

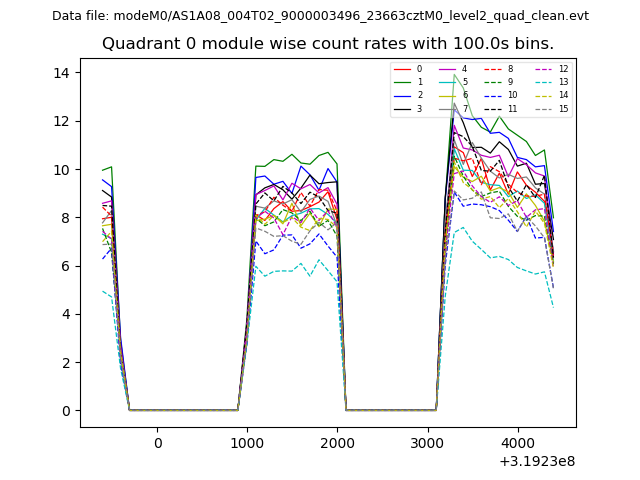

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

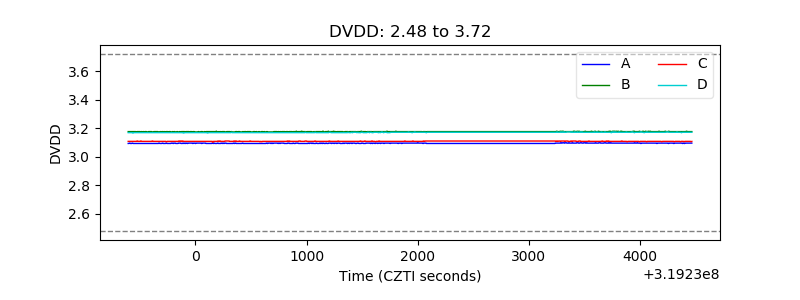

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

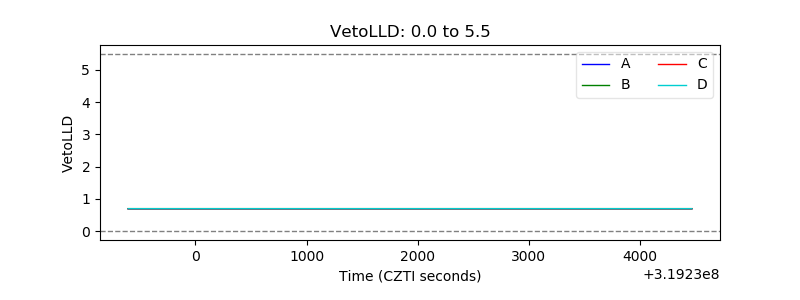

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

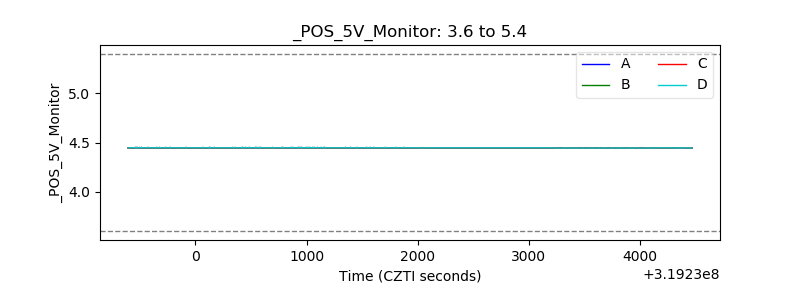

| +5 Volts monitor |  |
| _ROLL_ROT |  |

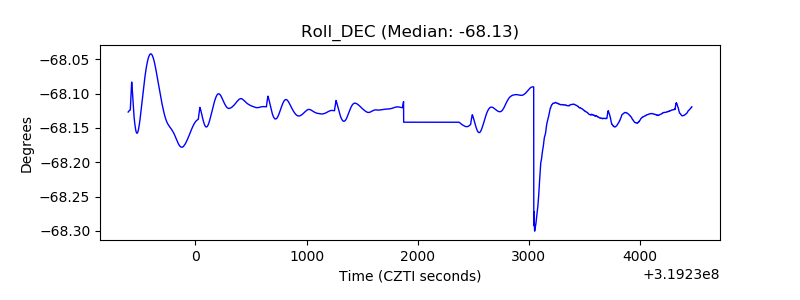

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
