| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_004T02_9000003496_23665cztM0_level2.evt | modeM0/AS1A08_004T02_9000003496_23665cztM0_level2_quad_clean.evt |
| Size (bytes) | 488,695,680 | 109,736,640 |
| Size | 466.1 MB | 104.7 MB |
| Events in quadrant A | 3,080,084 | 731,405 |
| Events in quadrant B | 3,502,585 | 758,205 |
| Events in quadrant C | 3,194,070 | 725,364 |
| Events in quadrant D | 4,600,568 | 673,454 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13009 | 2 |
| B | 0 | 14384 | 3 |
| C | 0 | 13183 | 2 |
| D | 0 | 17906 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6238 | 12 | 0.192369% |
| B | 6237 | 47 | 0.753567% |
| C | 6237 | 50 | 0.801667% |
| D | 6237 | 290 | 4.649671% |

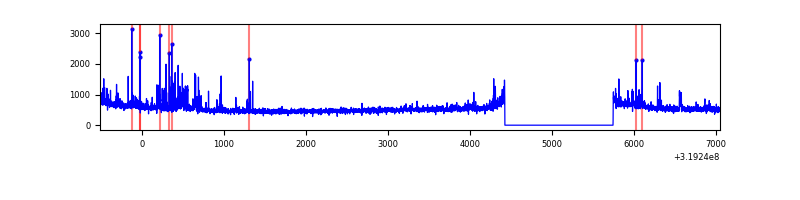

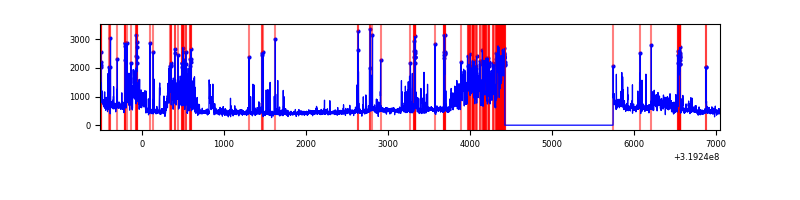

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7558 | 6239 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7557 | 6238 | 9 | 9 | 0.12% | 0.14% |  |
| C | 7557 | 6238 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7557 | 6237 | 208 | 208 | 2.75% | 3.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11024 | 64.65 | 798 | 784 | 158.4 |
| A | 0 | 226 | 6883 | 38.51 | 798 | 784 | 158.4 |
| A | 3 | 137 | 6695 | 37.32 | 798 | 784 | 158.4 |
| B | 3 | 64 | 172044 | 1145.47 | 808 | 789 | 149.5 |
| B | 0 | 230 | 60677 | 400.57 | 808 | 789 | 149.5 |
| B | 0 | 189 | 36760 | 240.6 | 808 | 789 | 149.5 |
| C | 14 | 238 | 127543 | 709.36 | 779 | 785 | 178.7 |
| C | 7 | 247 | 24268 | 131.42 | 779 | 785 | 178.7 |
| C | 10 | 9 | 7590 | 38.08 | 779 | 785 | 178.7 |
| D | 9 | 85 | 882685 | 4848.45 | 761 | 742 | 181.9 |
| D | 12 | 233 | 374629 | 2055.43 | 761 | 742 | 181.9 |
| D | 1 | 52 | 250944 | 1375.48 | 761 | 742 | 181.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

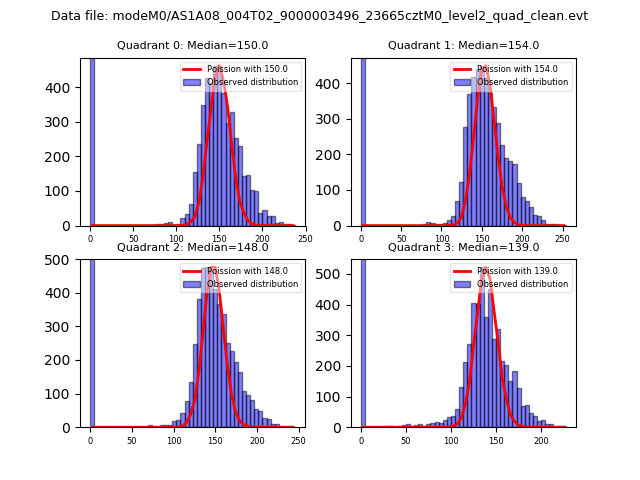

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

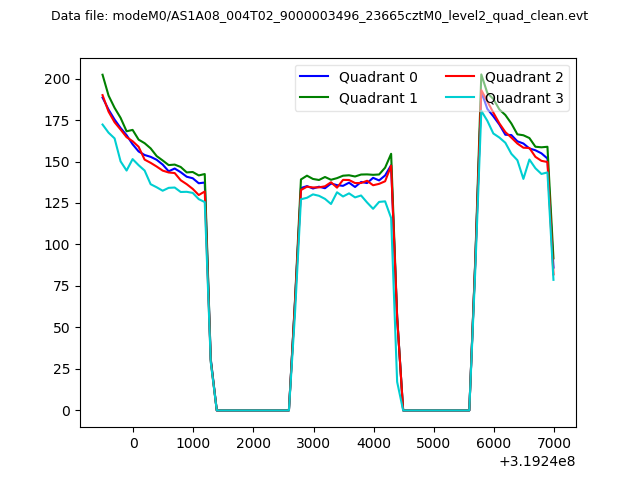

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

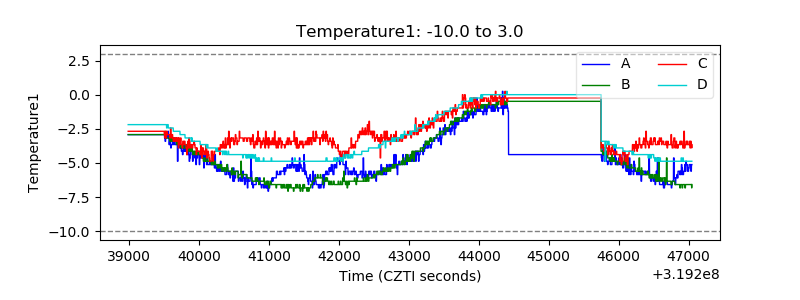

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

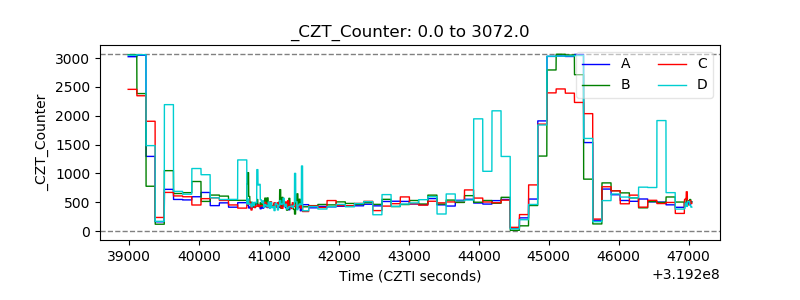

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

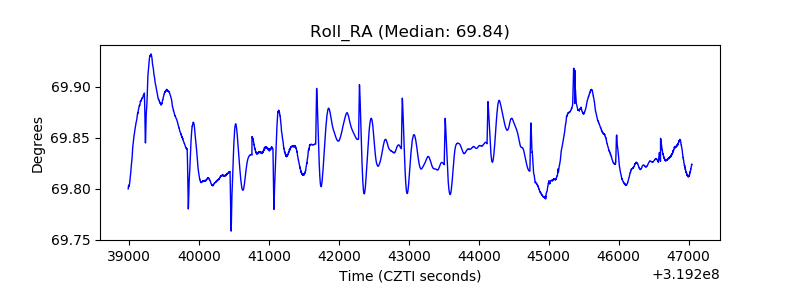

| _Roll_RA |  |
| Veto Counter |  |
