| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_004T02_9000003496_23666cztM0_level2.evt | modeM0/AS1A08_004T02_9000003496_23666cztM0_level2_quad_clean.evt |
| Size (bytes) | 263,678,400 | 58,271,040 |
| Size | 251.5 MB | 55.6 MB |
| Events in quadrant A | 1,628,082 | 392,225 |
| Events in quadrant B | 2,121,102 | 393,341 |
| Events in quadrant C | 1,696,350 | 391,892 |
| Events in quadrant D | 2,325,244 | 363,632 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6627 | 11 |
| B | 0 | 8299 | 20 |
| C | 0 | 6811 | 13 |
| D | 0 | 8994 | 9 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 64 | 0 |
| B | 0 | 64 | 0 |
| C | 0 | 64 | 0 |
| D | 0 | 64 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3140 | 27 | 0.859873% |
| B | 3137 | 168 | 5.355435% |
| C | 3139 | 59 | 1.879579% |
| D | 3141 | 212 | 6.749443% |

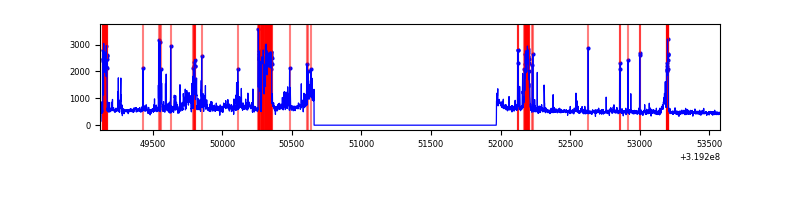

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4456 | 3143 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4449 | 3139 | 54 | 54 | 1.21% | 1.72% |  |
| C | 4451 | 3141 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4453 | 3143 | 162 | 162 | 3.64% | 5.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 5262 | 57.31 | 422 | 414 | 84.6 |
| A | 0 | 226 | 3631 | 38.03 | 422 | 414 | 84.6 |
| A | 3 | 137 | 3578 | 37.4 | 422 | 414 | 84.6 |
| B | 3 | 64 | 351476 | 4527.63 | 416 | 407 | 77.5 |
| B | 0 | 230 | 49185 | 629.07 | 416 | 407 | 77.5 |
| B | 0 | 189 | 29358 | 373.37 | 416 | 407 | 77.5 |
| C | 14 | 238 | 66788 | 699.16 | 411 | 414 | 94.9 |
| C | 7 | 247 | 25663 | 265.96 | 411 | 414 | 94.9 |
| C | 13 | 61 | 2826 | 25.41 | 411 | 414 | 94.9 |
| D | 12 | 233 | 365923 | 3724.95 | 404 | 392 | 98.1 |
| D | 1 | 52 | 162387 | 1650.81 | 404 | 392 | 98.1 |
| D | 2 | 82 | 119709 | 1215.9 | 404 | 392 | 98.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

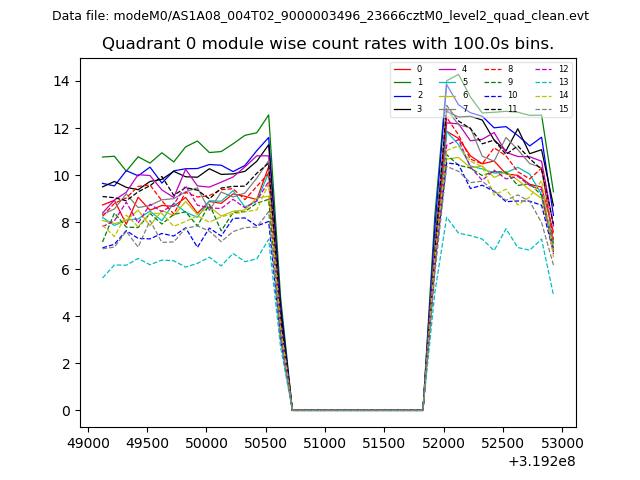

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

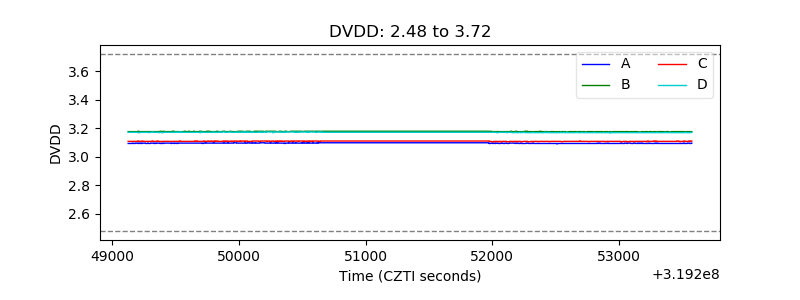

| D_VDD |  |
| Temperature 1 |  |

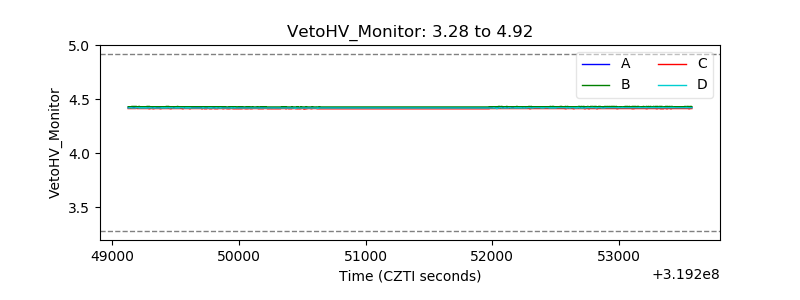

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

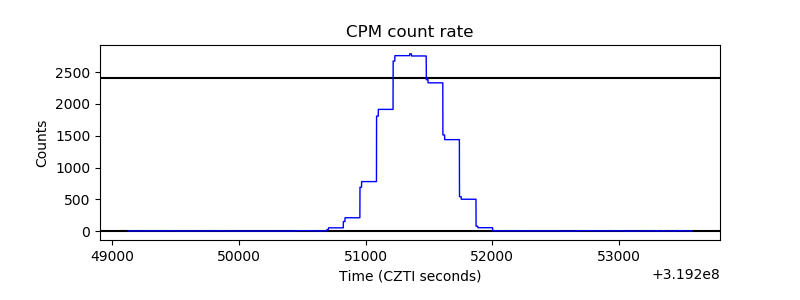

| _CPM_Rate |  |

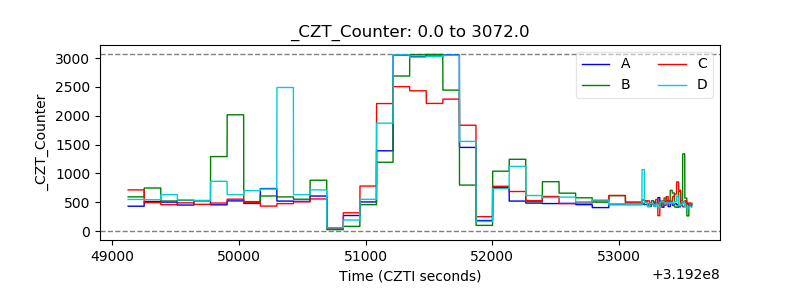

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

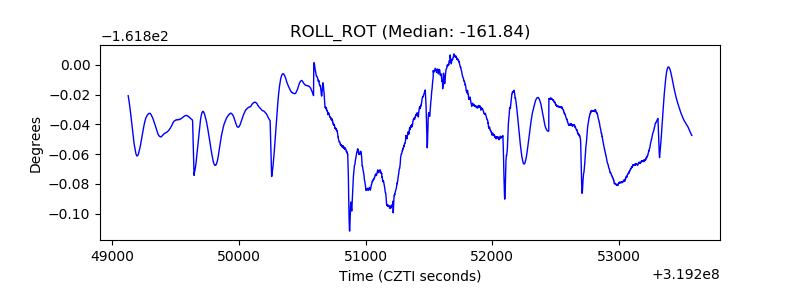

| _ROLL_ROT |  |
| _Roll_DEC |  |

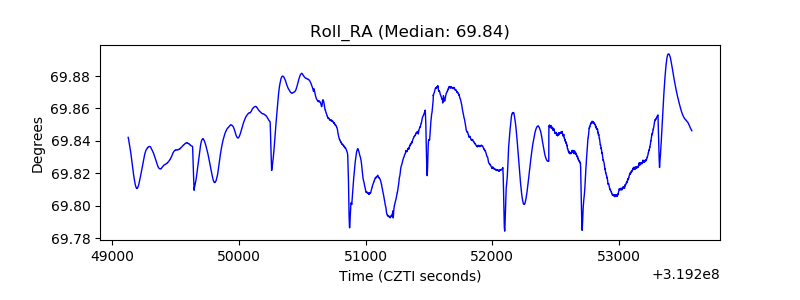

| _Roll_RA |  |
| Veto Counter |  |
