| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_004T02_9000003496_23671cztM0_level2.evt | modeM0/AS1A08_004T02_9000003496_23671cztM0_level2_quad_clean.evt |
| Size (bytes) | 313,536,960 | 61,879,680 |
| Size | 299.0 MB | 59.0 MB |
| Events in quadrant A | 1,976,009 | 399,743 |
| Events in quadrant B | 2,631,499 | 400,991 |
| Events in quadrant C | 2,043,535 | 398,473 |
| Events in quadrant D | 2,555,644 | 376,449 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 12 | 1 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11239 | 2608 |
| B | 0 | 13330 | 2867 |
| C | 0 | 11283 | 2582 |
| D | 0 | 13364 | 3047 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 109 | 21 |
| B | 0 | 115 | 27 |
| C | 0 | 112 | 24 |
| D | 0 | 113 | 21 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4218 | 37 | 0.877193% |
| B | 4208 | 168 | 3.992395% |
| C | 4232 | 66 | 1.559546% |
| D | 4227 | 134 | 3.170097% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8187 | 4340 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8183 | 4316 | 68 | 68 | 0.83% | 1.58% |  |
| C | 7768 | 4339 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8179 | 4341 | 97 | 97 | 1.19% | 2.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 7080 | 63.43 | 511 | 500 | 103.7 |
| A | 3 | 137 | 4353 | 37.14 | 511 | 500 | 103.7 |
| A | 0 | 226 | 4252 | 36.17 | 511 | 500 | 103.7 |
| B | 3 | 64 | 560932 | 5841.27 | 504 | 490 | 95.9 |
| B | 0 | 189 | 59752 | 617.66 | 504 | 490 | 95.9 |
| B | 0 | 230 | 22177 | 226.03 | 504 | 490 | 95.9 |
| C | 14 | 238 | 81502 | 696.49 | 499 | 499 | 116.3 |
| C | 7 | 247 | 11250 | 92.44 | 499 | 499 | 116.3 |
| C | 9 | 244 | 5608 | 43.93 | 499 | 499 | 116.3 |
| D | 1 | 52 | 262754 | 2177.75 | 499 | 484 | 120.4 |
| D | 12 | 233 | 257294 | 2132.41 | 499 | 484 | 120.4 |
| D | 9 | 85 | 72584 | 598.68 | 499 | 484 | 120.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

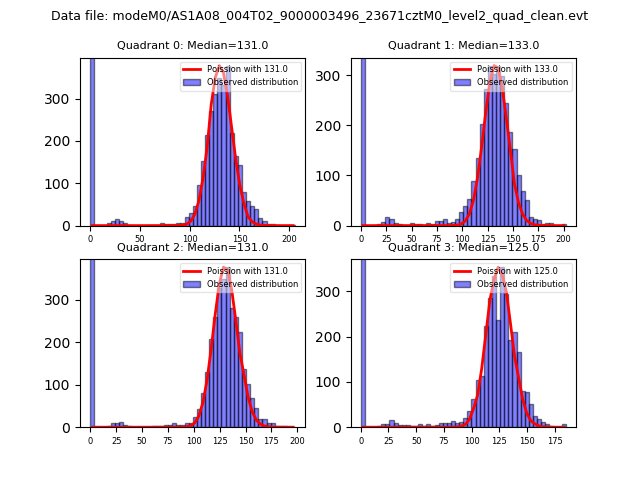

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

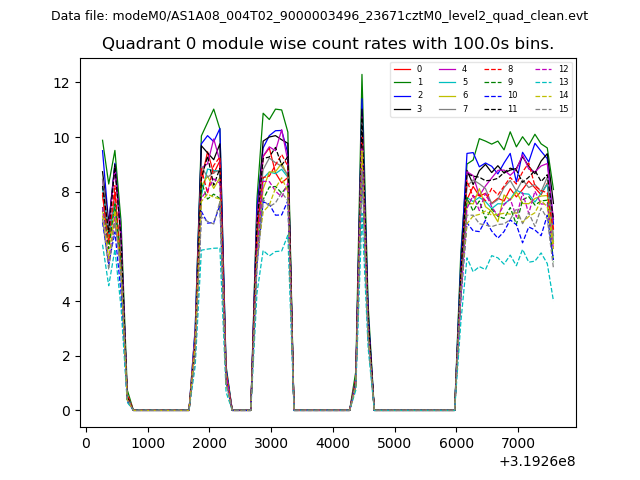

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

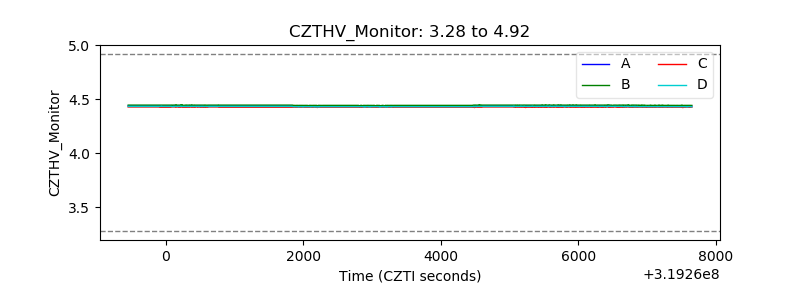

| CZT HV Monitor |  |

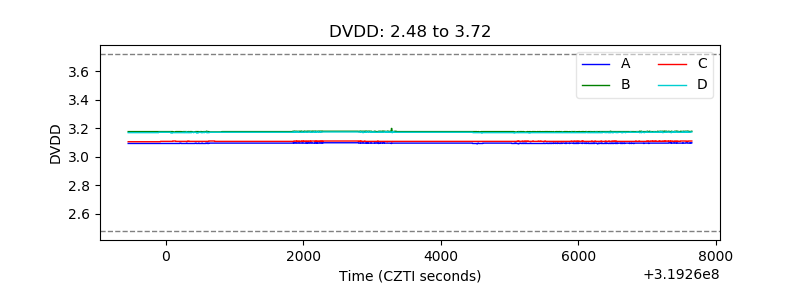

| D_VDD |  |
| Temperature 1 |  |

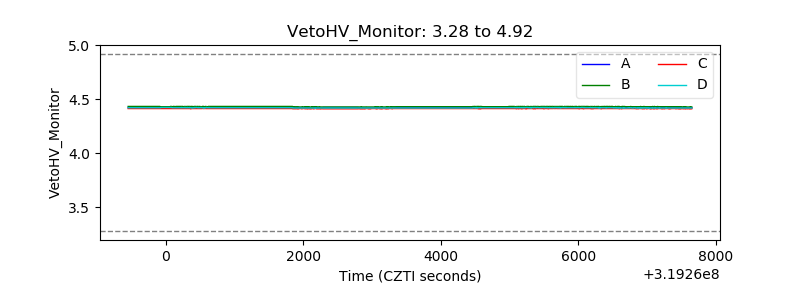

| Veto HV Monitor |  |
| Veto LLD |  |

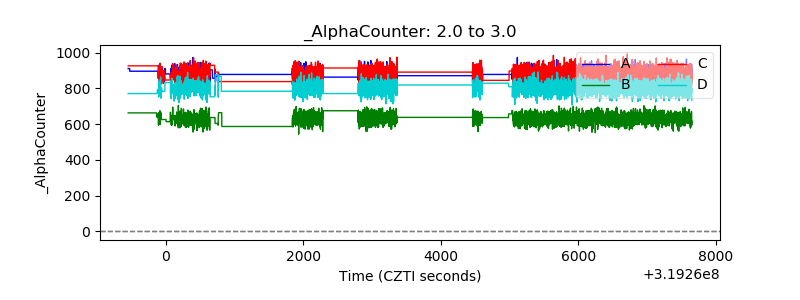

| Alpha Counter |  |

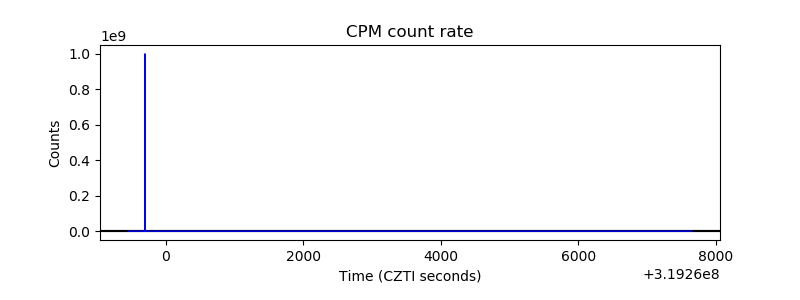

| _CPM_Rate |  |

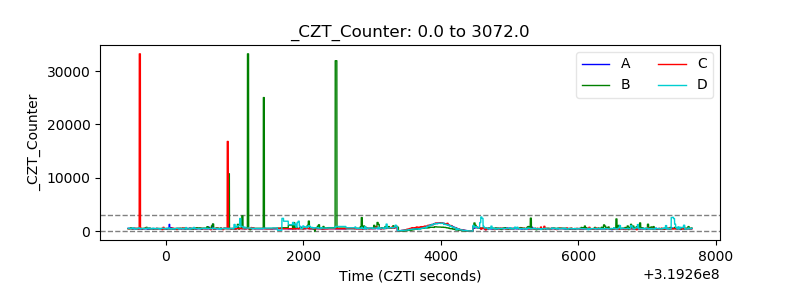

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
