| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_012T03_9000003500_23689cztM0_level2.evt | modeM0/AS1C05_012T03_9000003500_23689cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,697,713,280 | 587,816,640 |
| Size | 2.5 GB | 560.6 MB |
| Events in quadrant A | 18,502,066 | 3,785,099 |
| Events in quadrant B | 19,420,035 | 3,883,775 |
| Events in quadrant C | 18,903,917 | 3,726,487 |
| Events in quadrant D | 22,131,079 | 3,621,428 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 828 | 0 |
| B | 0 | 828 | 0 |
| C | 0 | 828 | 0 |
| D | 0 | 828 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37 | 0 |
| B | 0 | 37 | 0 |
| C | 0 | 37 | 0 |
| D | 0 | 37 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 82647 | 8 |
| B | 0 | 84145 | 8 |
| C | 0 | 83133 | 8 |
| D | 0 | 93621 | 8 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 40601 | 571 | 1.406369% |
| B | 40602 | 597 | 1.470371% |
| C | 40602 | 643 | 1.583666% |
| D | 40602 | 882 | 2.172307% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

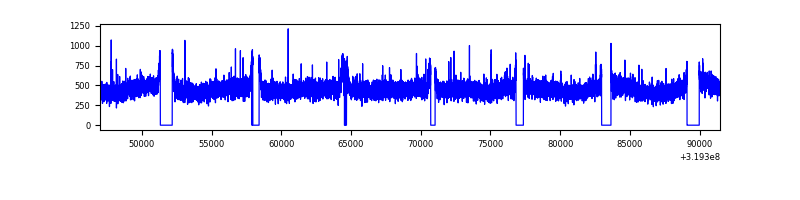

| A | 44456 | 40603 | 0 | 0 | 0.00% | 0.00% |  |
| B | 44457 | 40605 | 28 | 28 | 0.06% | 0.07% |  |

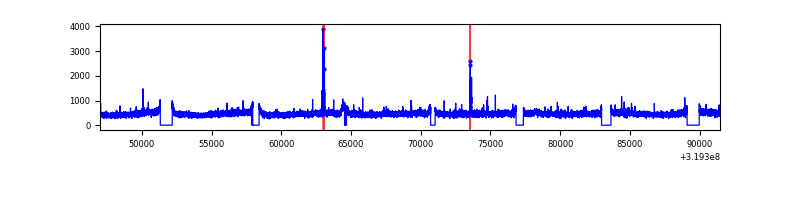

| C | 44457 | 40605 | 5 | 5 | 0.01% | 0.01% |  |

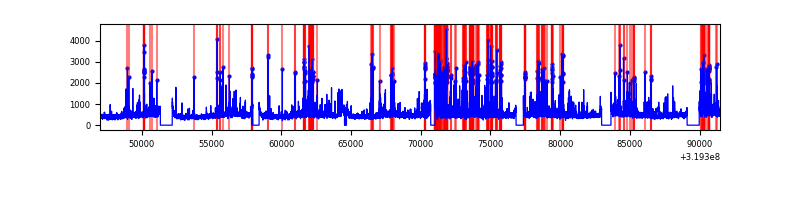

| D | 44457 | 40607 | 439 | 439 | 0.99% | 1.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 70323 | 68.26 | 4797 | 4685 | 961.6 |
| A | 3 | 137 | 43342 | 40.2 | 4797 | 4685 | 961.6 |
| A | 0 | 226 | 41353 | 38.13 | 4797 | 4685 | 961.6 |
| B | 15 | 33 | 210592 | 229.24 | 4785 | 4660 | 898.3 |
| B | 0 | 189 | 124272 | 133.15 | 4785 | 4660 | 898.3 |
| B | 12 | 111 | 111734 | 119.19 | 4785 | 4660 | 898.3 |
| C | 14 | 238 | 776017 | 725.18 | 4594 | 4620 | 1063.7 |
| C | 14 | 225 | 59246 | 51.35 | 4594 | 4620 | 1063.7 |
| C | 3 | 233 | 55342 | 47.68 | 4594 | 4620 | 1063.7 |
| D | 1 | 52 | 2530763 | 2254.43 | 4636 | 4497 | 1120.6 |
| D | 12 | 233 | 758871 | 673.2 | 4636 | 4497 | 1120.6 |
| D | 9 | 85 | 433449 | 382.79 | 4636 | 4497 | 1120.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

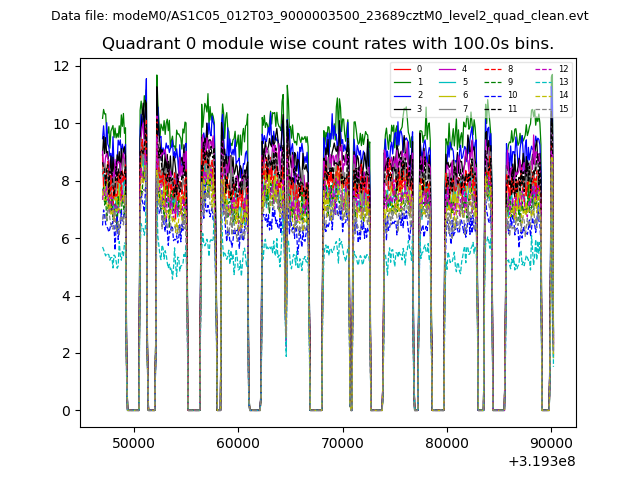

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

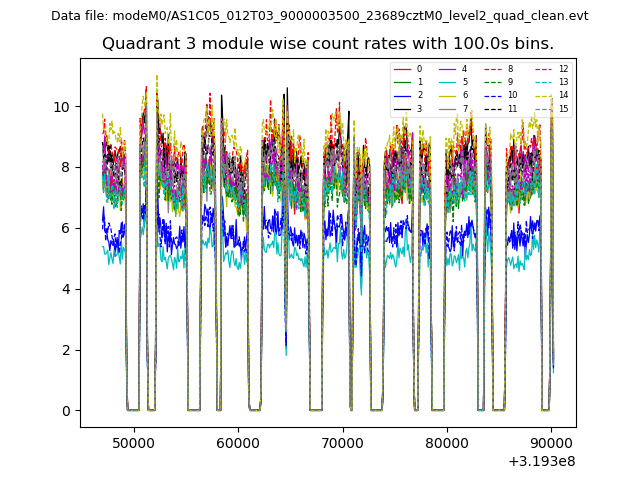

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

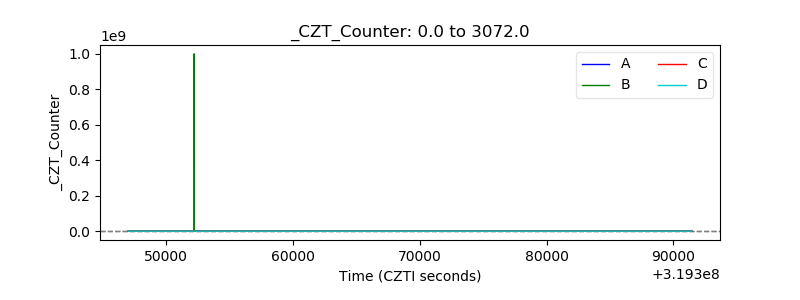

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

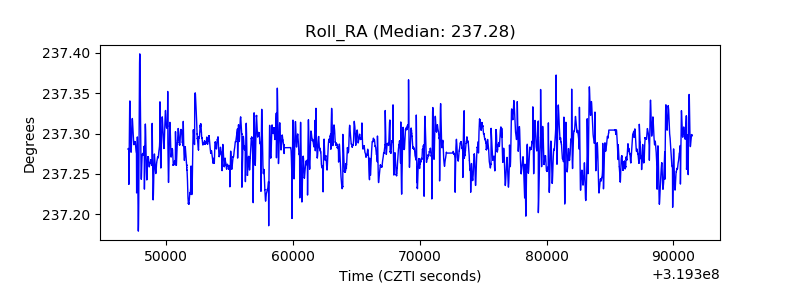

| _Roll_RA |  |

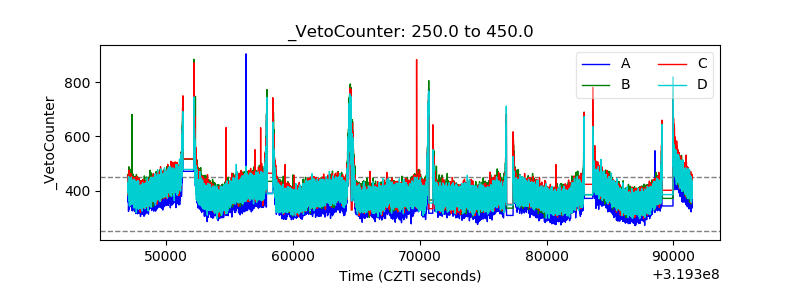

| Veto Counter |  |
