| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_012T03_9000003500_23694cztM0_level2.evt | modeM0/AS1C05_012T03_9000003500_23694cztM0_level2_quad_clean.evt |
| Size (bytes) | 608,181,120 | 124,142,400 |
| Size | 580.0 MB | 118.4 MB |
| Events in quadrant A | 3,044,744 | 858,729 |
| Events in quadrant B | 3,258,982 | 892,756 |
| Events in quadrant C | 3,190,356 | 865,838 |
| Events in quadrant D | 8,509,455 | 714,069 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13065 | 3 |
| B | 0 | 13587 | 2 |
| C | 0 | 13449 | 2 |
| D | 0 | 29584 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6124 | 41 | 0.669497% |
| B | 6124 | 60 | 0.979752% |
| C | 6124 | 85 | 1.387982% |
| D | 6124 | 1967 | 32.119530% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7449 | 6125 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7449 | 6124 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7449 | 6124 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7449 | 6124 | 1640 | 1640 | 22.02% | 26.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10673 | 62.95 | 790 | 777 | 157.2 |
| A | 0 | 226 | 6761 | 38.06 | 790 | 777 | 157.2 |
| A | 3 | 137 | 6429 | 35.95 | 790 | 777 | 157.2 |
| B | 0 | 245 | 40762 | 272.12 | 798 | 779 | 146.9 |
| B | 0 | 183 | 31509 | 209.14 | 798 | 779 | 146.9 |
| B | 0 | 219 | 23467 | 154.41 | 798 | 779 | 146.9 |
| C | 14 | 238 | 124919 | 696.45 | 780 | 788 | 178.2 |
| C | 7 | 247 | 18615 | 100.02 | 780 | 788 | 178.2 |
| C | 3 | 233 | 6980 | 34.74 | 780 | 788 | 178.2 |
| D | 13 | 174 | 5305976 | 32955.12 | 677 | 661 | 161.0 |
| D | 1 | 52 | 594169 | 3686.7 | 677 | 661 | 161.0 |
| D | 8 | 195 | 26261 | 159.02 | 677 | 661 | 161.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

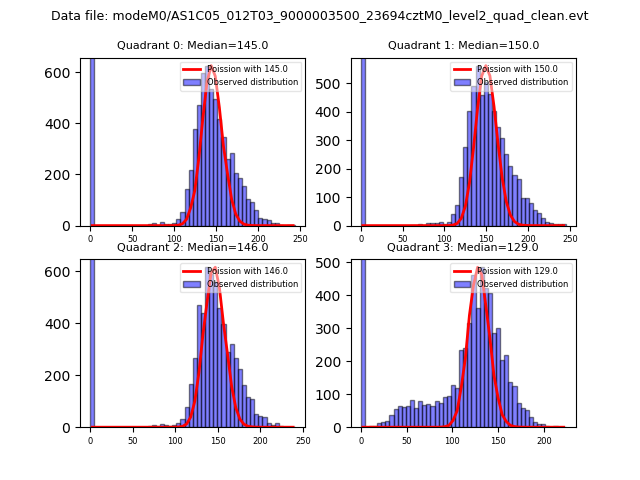

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

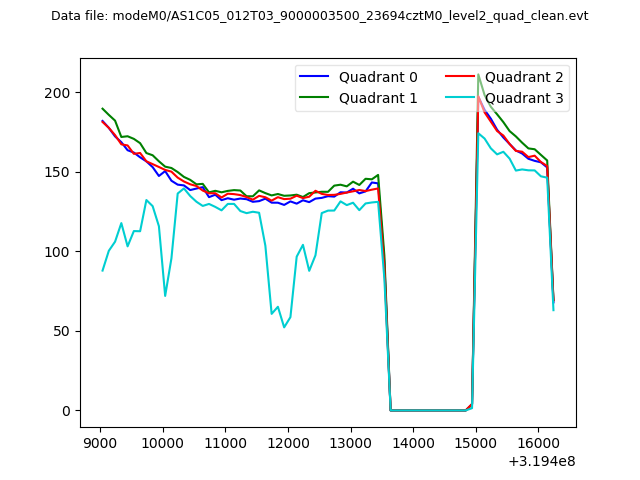

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

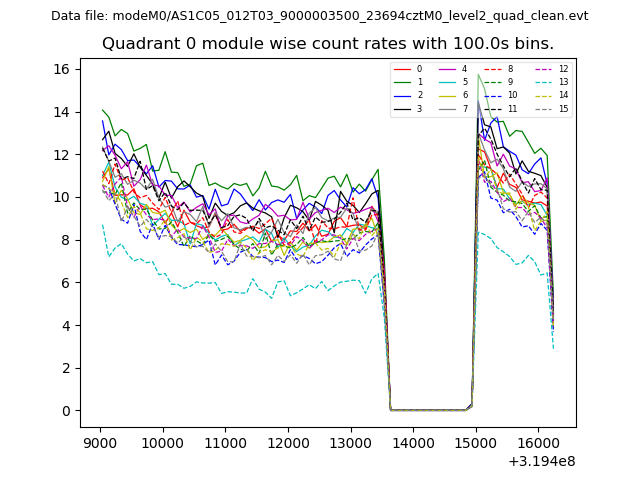

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

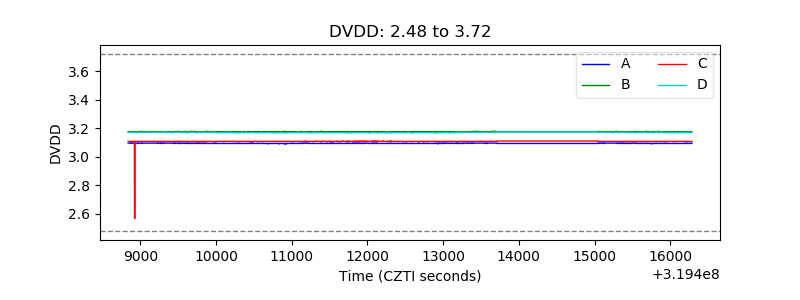

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

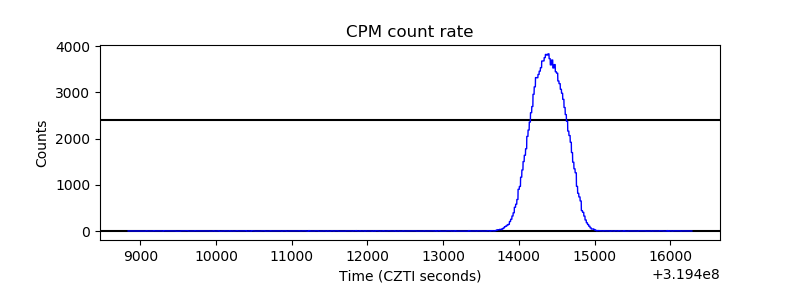

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

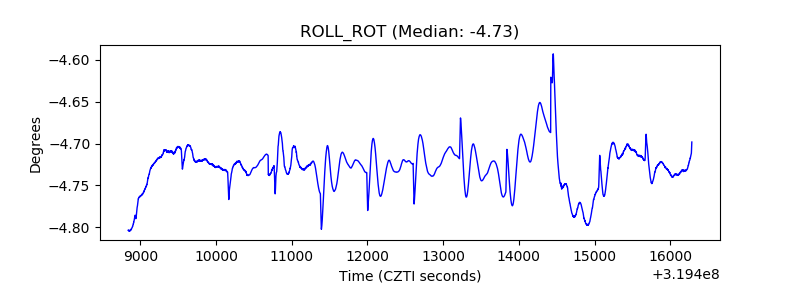

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
