| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_012T03_9000003500_23699cztM0_level2.evt | modeM0/AS1C05_012T03_9000003500_23699cztM0_level2_quad_clean.evt |
| Size (bytes) | 642,340,800 | 138,985,920 |
| Size | 612.6 MB | 132.5 MB |
| Events in quadrant A | 4,351,228 | 892,600 |
| Events in quadrant B | 4,990,498 | 907,125 |
| Events in quadrant C | 4,525,329 | 882,809 |
| Events in quadrant D | 4,928,610 | 854,710 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 196 | 0 |
| B | 0 | 196 | 0 |
| C | 0 | 196 | 0 |
| D | 0 | 196 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19633 | 1 |
| B | 0 | 21119 | 1 |
| C | 0 | 20000 | 1 |
| D | 0 | 21454 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9696 | 58 | 0.598185% |
| B | 9697 | 206 | 2.124368% |
| C | 9697 | 99 | 1.020934% |
| D | 9697 | 43 | 0.443436% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 10351 | 9696 | 0 | 0 | 0.00% | 0.00% |  |
| B | 10352 | 9698 | 115 | 115 | 1.11% | 1.19% |  |
| C | 10352 | 9698 | 2 | 2 | 0.02% | 0.02% |  |
| D | 10352 | 9697 | 23 | 23 | 0.22% | 0.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 15546 | 63.89 | 1128 | 1103 | 226.1 |
| A | 3 | 137 | 10092 | 39.76 | 1128 | 1103 | 226.1 |
| A | 0 | 226 | 9576 | 37.48 | 1128 | 1103 | 226.1 |
| B | 14 | 207 | 355372 | 1684.98 | 1120 | 1093 | 210.3 |
| B | 0 | 229 | 95006 | 446.66 | 1120 | 1093 | 210.3 |
| B | 0 | 245 | 32620 | 149.95 | 1120 | 1093 | 210.3 |
| C | 14 | 238 | 173033 | 683.86 | 1085 | 1089 | 251.4 |
| C | 7 | 247 | 125008 | 492.86 | 1085 | 1089 | 251.4 |
| C | 13 | 61 | 7486 | 25.44 | 1085 | 1089 | 251.4 |
| D | 1 | 52 | 358307 | 1351.69 | 1097 | 1066 | 264.3 |
| D | 13 | 174 | 311602 | 1174.97 | 1097 | 1066 | 264.3 |
| D | 2 | 234 | 41632 | 153.49 | 1097 | 1066 | 264.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

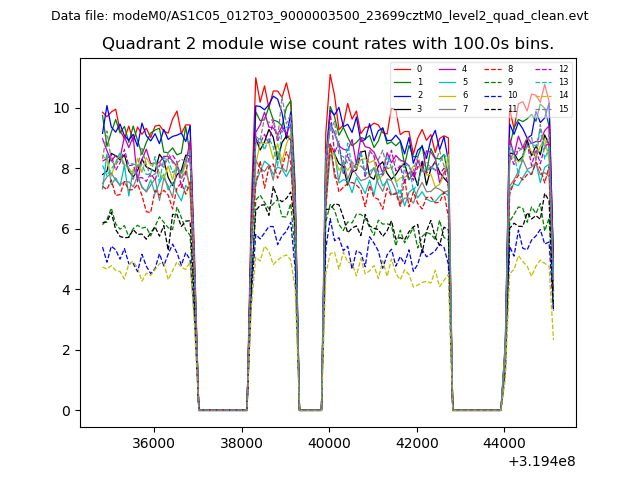

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

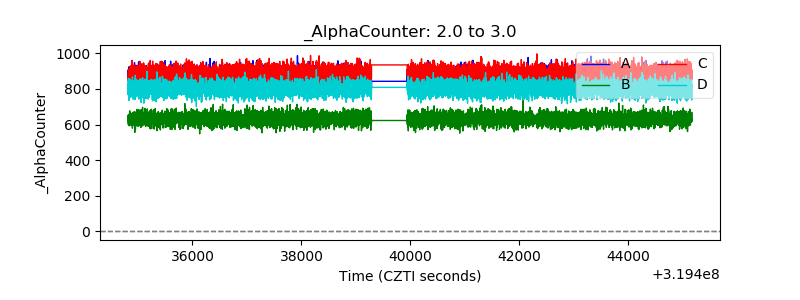

| Alpha Counter |  |

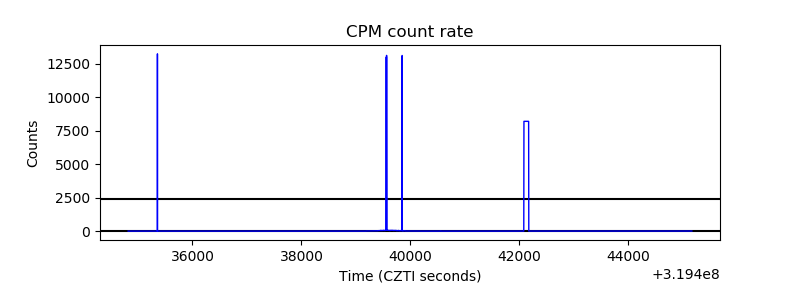

| _CPM_Rate |  |

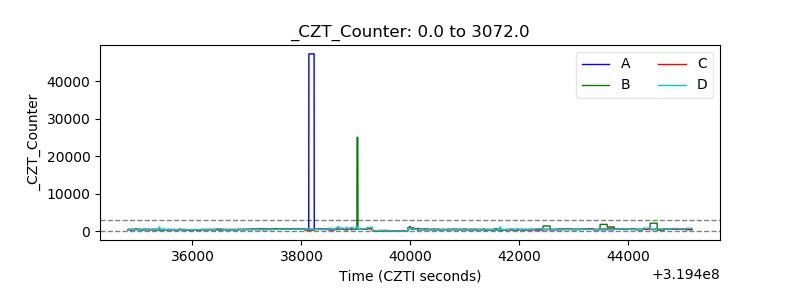

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

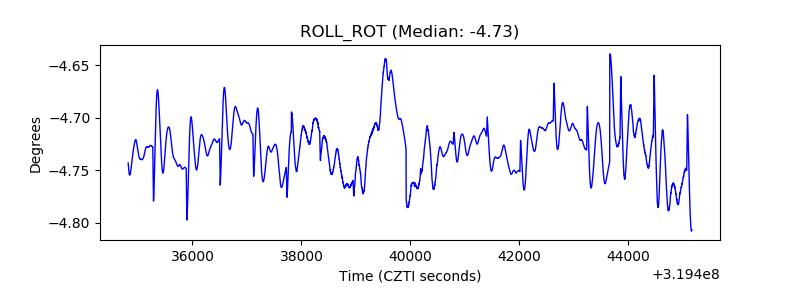

| _ROLL_ROT |  |
| _Roll_DEC |  |

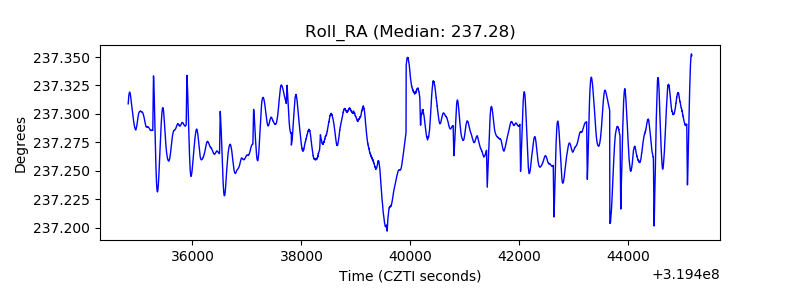

| _Roll_RA |  |
| Veto Counter |  |
