| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_054T01_9000003504_23703cztM0_level2.evt | modeM0/AS1A07_054T01_9000003504_23703cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,057,697,280 | 263,306,880 |
| Size | 1008.7 MB | 251.1 MB |
| Events in quadrant A | 6,553,805 | 1,800,375 |
| Events in quadrant B | 7,095,031 | 1,804,096 |
| Events in quadrant C | 6,696,285 | 1,731,767 |
| Events in quadrant D | 10,719,976 | 1,651,592 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29052 | 3 |
| B | 0 | 30081 | 3 |
| C | 0 | 29249 | 3 |
| D | 0 | 41437 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 290 | 0 |
| B | 0 | 290 | 0 |
| C | 0 | 290 | 0 |
| D | 0 | 290 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 14313 | 153 | 1.068958% |
| B | 14313 | 169 | 1.180745% |
| C | 14313 | 218 | 1.523091% |
| D | 14314 | 754 | 5.267570% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 16068 | 14314 | 0 | 0 | 0.00% | 0.00% |  |
| B | 16068 | 14315 | 18 | 18 | 0.11% | 0.13% |  |
| C | 16068 | 14314 | 3 | 3 | 0.02% | 0.02% |  |

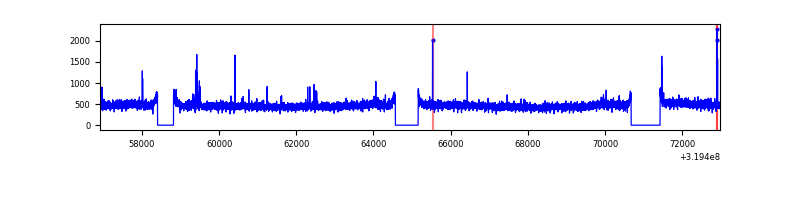

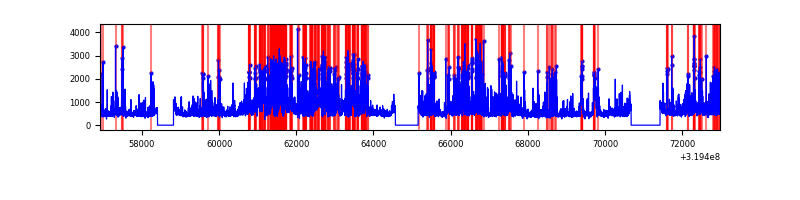

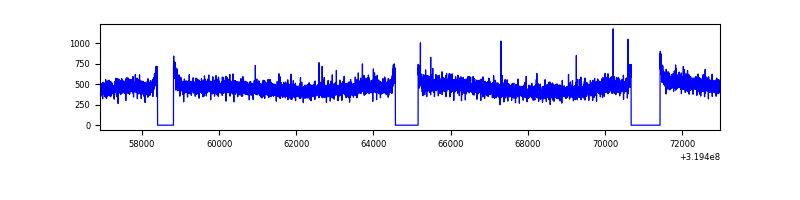

| D | 16069 | 14314 | 549 | 549 | 3.42% | 3.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 23122 | 62.99 | 1698 | 1658 | 340.8 |
| A | 3 | 137 | 15400 | 40.33 | 1698 | 1658 | 340.8 |
| A | 0 | 226 | 14565 | 37.88 | 1698 | 1658 | 340.8 |
| B | 0 | 229 | 132900 | 412.92 | 1684 | 1638 | 317.9 |
| B | 14 | 207 | 79780 | 245.82 | 1684 | 1638 | 317.9 |
| B | 15 | 33 | 76314 | 234.91 | 1684 | 1638 | 317.9 |
| C | 14 | 238 | 259129 | 679.53 | 1624 | 1630 | 378.9 |
| C | 7 | 247 | 71215 | 183.63 | 1624 | 1630 | 378.9 |
| C | 0 | 207 | 18385 | 44.22 | 1624 | 1630 | 378.9 |
| D | 1 | 52 | 3677948 | 9322.72 | 1617 | 1567 | 394.3 |
| D | 12 | 233 | 350515 | 884.88 | 1617 | 1567 | 394.3 |
| D | 13 | 174 | 254277 | 640.83 | 1617 | 1567 | 394.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

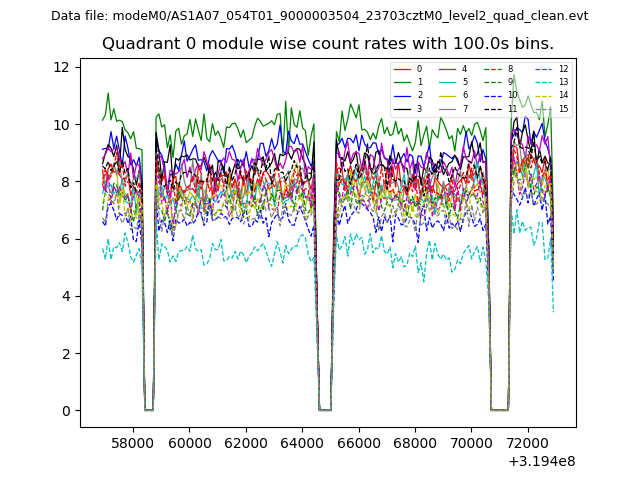

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

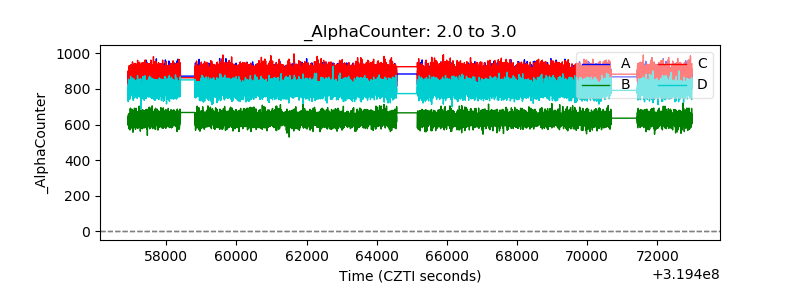

| Alpha Counter |  |

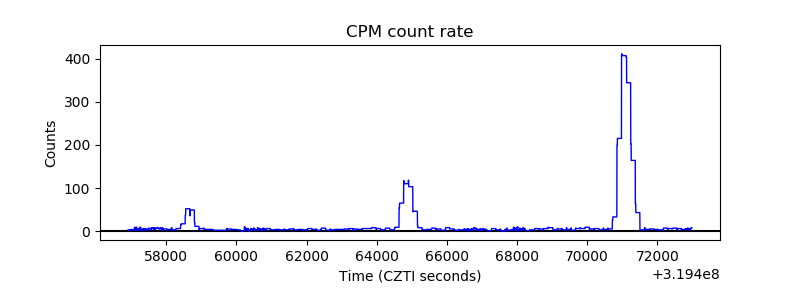

| _CPM_Rate |  |

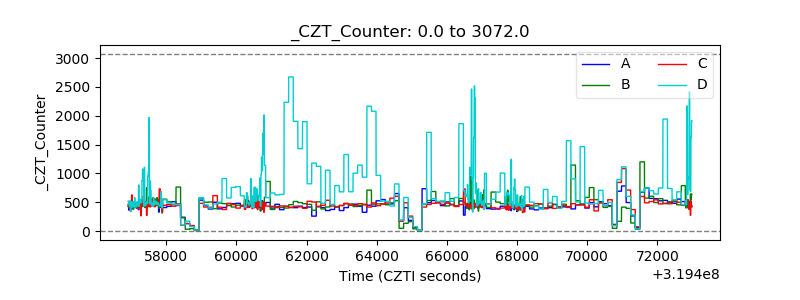

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

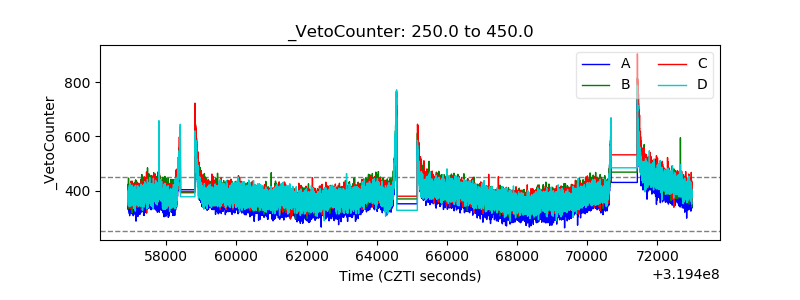

| Veto Counter |  |
