| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_054T01_9000003504_23707cztM0_level2.evt | modeM0/AS1A07_054T01_9000003504_23707cztM0_level2_quad_clean.evt |
| Size (bytes) | 458,040,960 | 132,166,080 |
| Size | 436.8 MB | 126.0 MB |
| Events in quadrant A | 3,054,639 | 901,370 |
| Events in quadrant B | 3,339,962 | 913,818 |
| Events in quadrant C | 3,192,505 | 892,142 |
| Events in quadrant D | 3,855,786 | 855,198 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13466 | 2 |
| B | 0 | 14211 | 2 |
| C | 0 | 13751 | 2 |
| D | 0 | 15948 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6315 | 20 | 0.316706% |
| B | 6315 | 60 | 0.950119% |
| C | 6315 | 71 | 1.124307% |
| D | 6315 | 176 | 2.787015% |

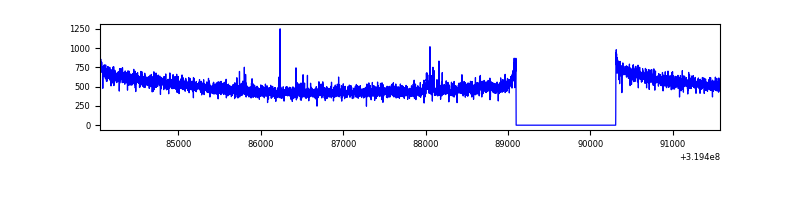

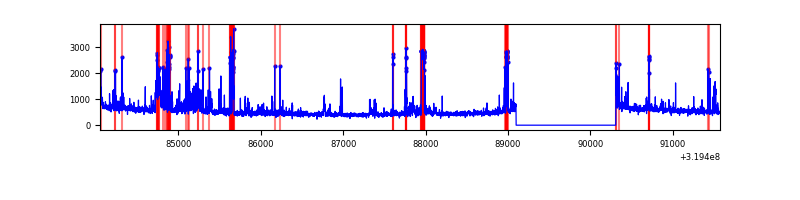

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7525 | 6316 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7525 | 6316 | 30 | 30 | 0.40% | 0.47% |  |
| C | 7525 | 6316 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7525 | 6316 | 130 | 130 | 1.73% | 2.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10238 | 59.9 | 792 | 777 | 157.9 |
| A | 0 | 226 | 6919 | 38.89 | 792 | 777 | 157.9 |
| A | 3 | 137 | 6543 | 36.51 | 792 | 777 | 157.9 |
| B | 0 | 229 | 91502 | 612.04 | 791 | 772 | 148.2 |
| B | 5 | 172 | 90024 | 602.07 | 791 | 772 | 148.2 |
| B | 0 | 189 | 47014 | 311.94 | 791 | 772 | 148.2 |
| C | 14 | 238 | 124322 | 686.49 | 780 | 787 | 180.0 |
| C | 7 | 247 | 22148 | 118.7 | 780 | 787 | 180.0 |
| C | 13 | 61 | 5427 | 25.78 | 780 | 787 | 180.0 |
| D | 1 | 52 | 733467 | 3943.54 | 776 | 755 | 185.8 |
| D | 9 | 85 | 74213 | 395.36 | 776 | 755 | 185.8 |
| D | 12 | 233 | 33853 | 178.14 | 776 | 755 | 185.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

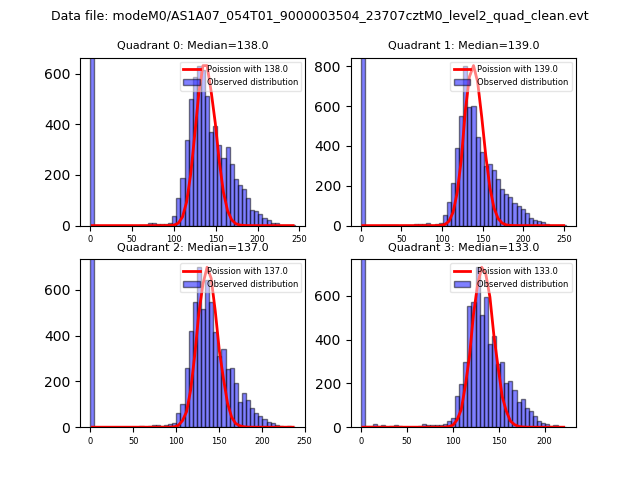

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

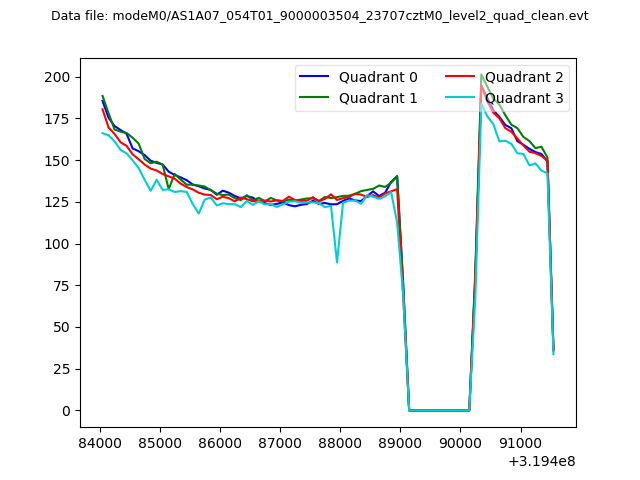

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

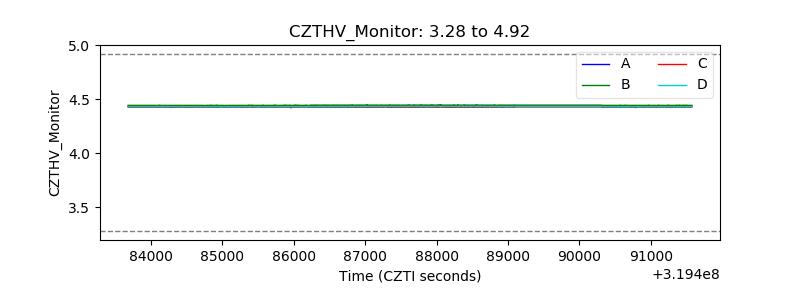

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

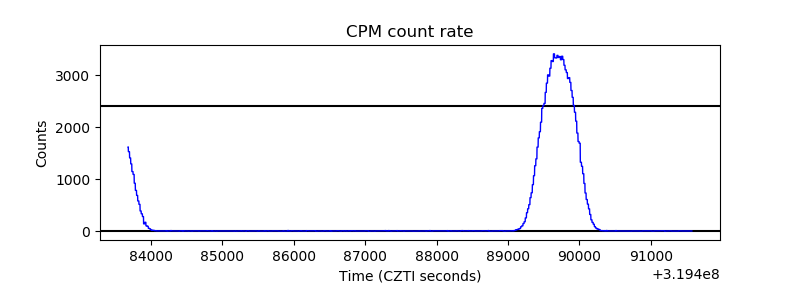

| _CPM_Rate |  |

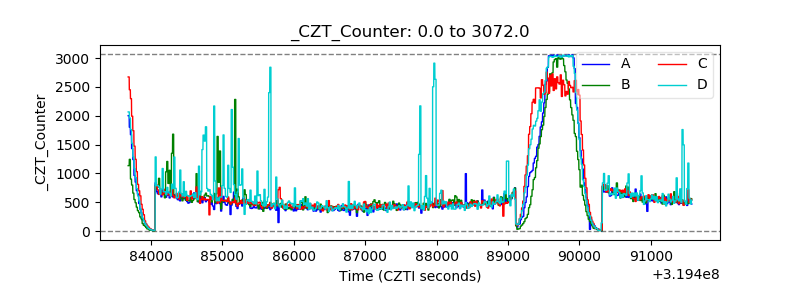

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

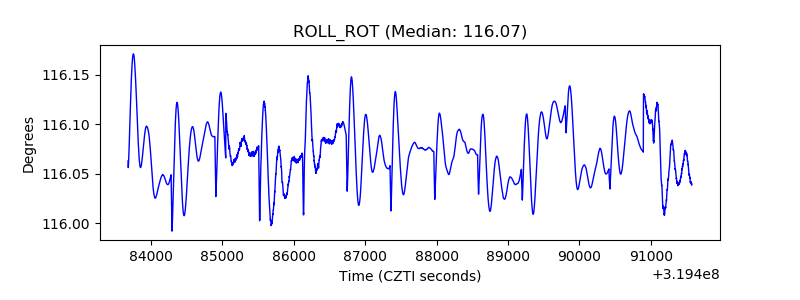

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
